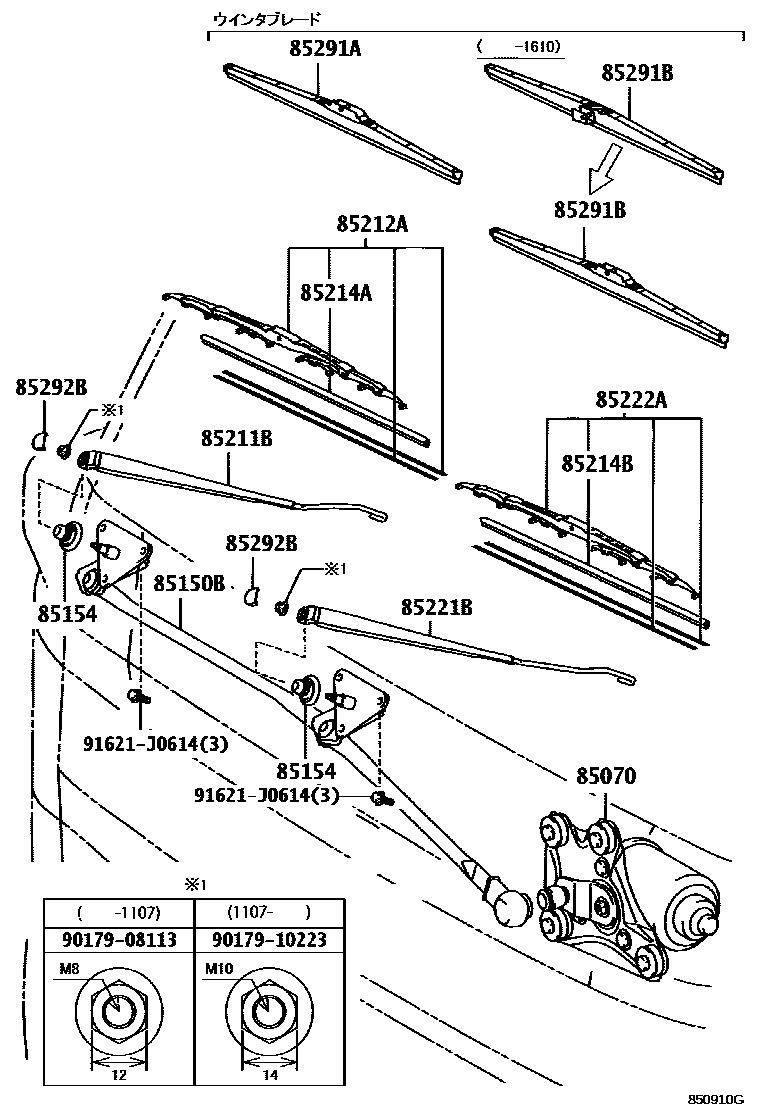

WINDSHIELD WIPER

85070MOTOR & BRACKET ASSY, FRONT WIPER

main85070-25060iKDY221,231,241,271,281,TRY220,23#,281200903-201505

main85070-25080iKDY221,231,241,271,281,TRY220,23#,281201505-201609

main85070-25090iKDY221,231,241,271,281,TRY220,23#,281201505-201610

main85070-25110iKDY221,231,241,271,281,TRY220,23#,281201610

main85070-25120iKDY221,231,241,271,281,TRY220,23#,281201610-202111

main85070-37180iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-200903

main85070-37190iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-200903

85150BLINK ASSY, WIPER

main85150-37090iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201107

main85150-37150iKDY221,231,241,271,281,TRY220,23#,281201107

85154PACKING, FRONT WIPER SHAFT

main85154-37020iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

main85154-37030iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

85211BARM, FRONT WIPER, RH

main85211-37070iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201107

main85211-37250iKDY221,231,241,271,281,TRY220,23#,281201107-202011

main85211-37251iKDY221,231,241,271,281,TRY220,23#,281202012-202111

85212ABLADE, FR WIPER, RH

main85212-37080iKDY220,230,240,270,280,290,RZY231,281,TRY220,230200107-200605

main85212-37081iKDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281200606-202111

85214ARUBBER, WIPER, RH

main85214-24051iKDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281200606-202111

main85214-53050iKDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200606

85214BRUBBER, WIPER, LH

main85214-24051iKDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281200606-202111

main85214-53050iKDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200606

85221BARM, FRONT WIPER, LH

main85221-37150iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201107

main85221-37250iKDY221,231,241,271,281,TRY220,23#,281201107-202011

main85221-37251iKDY221,231,241,271,281,TRY220,23#,281202012-202111

85222ABLADE, FR WIPER, LH

main85222-37140iKDY230..T4..TS;LY220,230,240,270,280,290,RZY220,230200107-200606

main85222-37141iKDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281200606-202111

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-33060iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-24110iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

main85291-33060iKDY221,231,241,271,281,TRY220,23#,281201610

85292BCAP, FRONT WIPER ARM HEAD

main85192-12800×2iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200204-201107

main85292-13010×2iKDY221,231,241,271,281,TRY220,23#,281201107-202111

main85292-16010×2iLY220,230,240,270,280,290,RZY220,230200107-200203

9017908113

main90179-08113

9017910223

main90179-10223

91621J0614

main91621-J0614

15 parts on this diagram · 1 diagram in section
