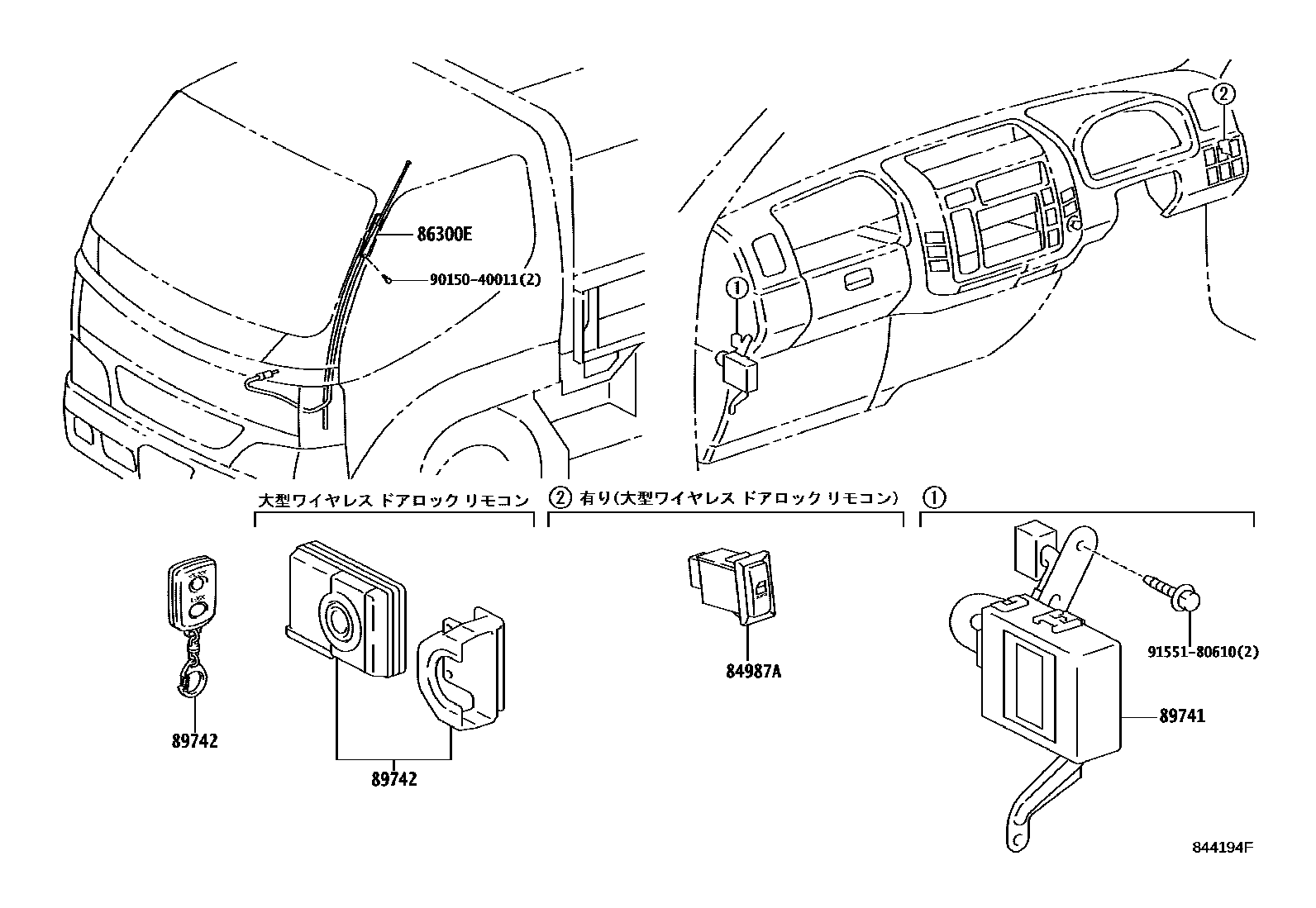

WIRELESS DOOR LOCK

0001 1 0002 1

84987ASWITCH, KEYLESS ENTRY CANCEL

main84987-37010iKDY230..T4..TS;KDY270..T3..IV3;KDY220,RZY231,281..TB..IV3;KDY230,280..TB..MTM..15T..WT..IV3200408-200708

86300EANTENNA ASSY, WIRELESS DOOR LOCK

main86300-25040iLY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL200107-200408

main86300-37070iKDY270..T3..IV3;KDY220,RZY231,281..TB..IV3;KDY230,280..TB..MTM..15T..WT..IV3200507-200610

main86300-37110iKDY281;KDY221..T2;TRY220,230..125T,15T;KDY231..T2,T3,TW2,TW4;KDY271,TRY231,281..CBU;KDY221,231..T4..TB..CBU;KDY231..T4..TB..ATM..IV3200910-201610

89741RECEIVER, DOOR CONTROL

main89741-37080iKDY221,23#..T4..TB;KDY221,23#,241..(T2,T3,TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS);KDY220,240,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

main89741-37090iKDY23#..T4..TS;KDY22#,23#,280..TB..MTM..15T..WT..IV3;KDY27#,RZY231,281,TRY231,281..(T3,T4)..IV3200408-201610

main89741-37110iKDY221..T2,T3;KDY221..T4..TB;KDY231,241,271,281,TRY220,23#,281201610-202107

main89741-37111iKDY221..T2,T3;KDY221..T4..TB;KDY231,241,271,281,TRY220,23#,281202202

89742TRANSMITTER, DOOR CONTROL

main89742-37010iKDY23#..T4..TS;KDY22#,23#,280..TB..MTM..15T..WT..IV3;KDY27#,RZY231,281,TRY231,281..(T3,T4)..IV3200408-201610

main89742-37040iKDY241..03S200107-201609

main89742-37080iKDY221..T2,T3;KDY221..T4..TB;KDY231,241,271,281,TRY220,23#,281201610-202107

9015040011

main90150-40011

9155180610

main91551-80610

6 parts on this diagram · 2 diagrams in section
