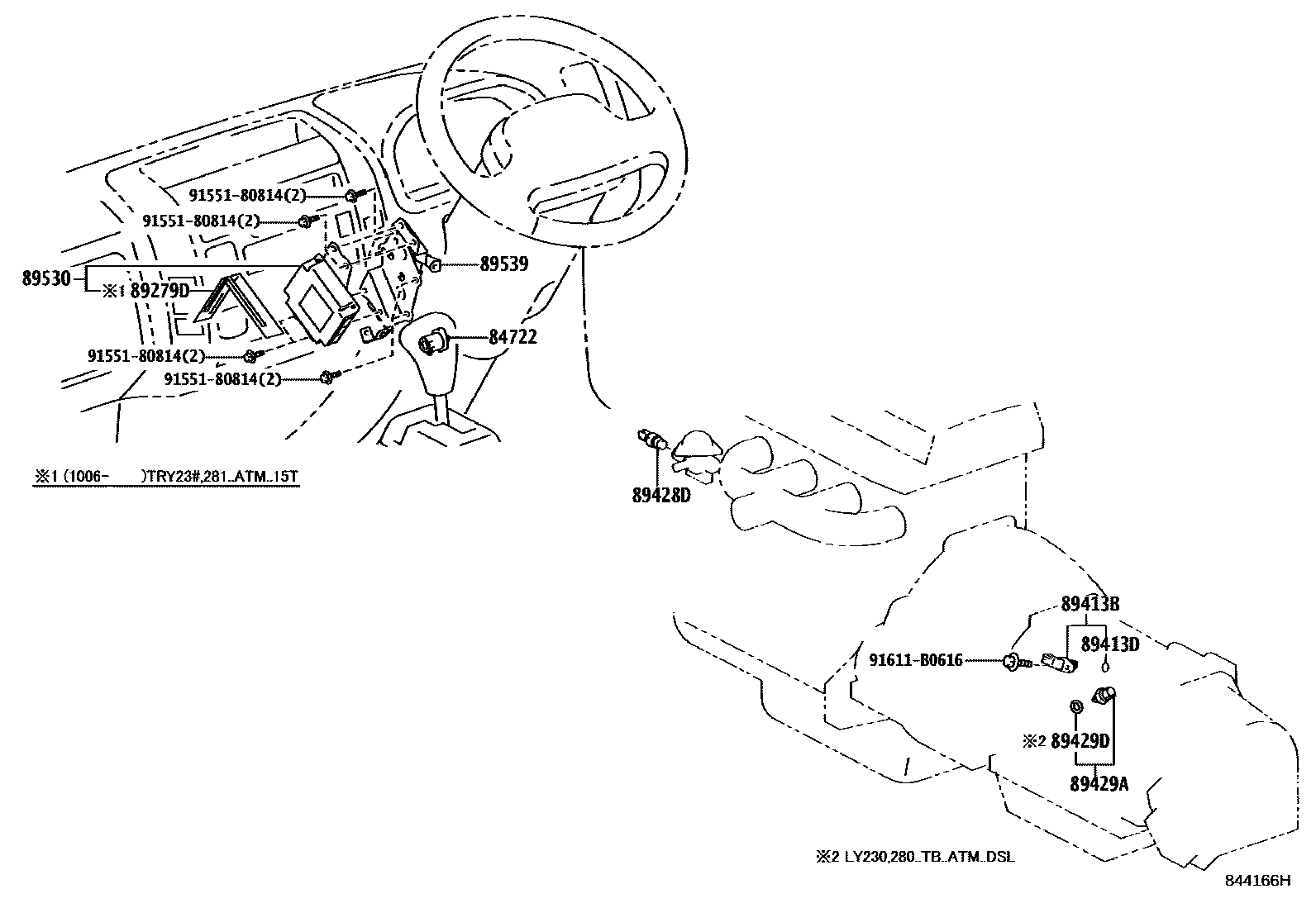

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1 0005 1 0006 1���������(A442E,A442F) 0007 1���������(A45DE,A340E,A340F) 0009 1������������

84722SWITCH, TRANSMISSION CONTROL

main84722-37020-B0iKDY221..TS..ATM;KDY231..TB..ATM..125T;KDY231,TRY230..ST..IV6;KDY231,TRY230..(T2,T3,T4)..ATM..(CBU,IV3);KDY220,230,28#,LY220,230,280,RZY220,23#,281,TRY220,231,281..ATM; LY220,230,280,RZY220,23#,281,TRY220,230..ATM200107-201505

DK.CHARCOAL,TRIM1#

main84722-37021iKDY221,231,281,TRY220,23#,281..ATM201505

89279DCOVER

main89279-25050iKDY231..ATM..15T;KDY231..ATM..125T..WT201008-201610

main89279-25060iKDY221,231,281..ATM..(125T,1T)..ST201008-201610

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-22010iTRY220,230..ATM..125T200308

main89413-32010iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T200107-201807

main89413-32011iTRY230,281..ATM..15T;KDY231..(T2,TW2)..ATM..WT201808-202107

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008×2iKDY22#,23#,28#,TRY220,230..ATM..(125T,1T)..ST200308

89428DSWITCH, TEMPERATURE, NO.2

main89428-36030iLY220,230,280,RZY220,230..ATM..(DSL,EFI)200107-200408

89429ASENSOR, TEMPERATURE

main89428-60090iLY280..TS..ATM;LY280,RZY281,TRY281..ATM..LPG200107

main89429-25010iKDY221,231,281..ATM..(125T,1T)..ST200709

main89429-34010iLY220,230..ATM..125T..ST200107-200308

89429DRING, O(FOR TEMPERATURE SENSOR)

main90301-11006iLY230,280..TB..ATM..DSL200107-200408

89530COMPUTER ASSY, TRANSMISSION CONTROL

main89530-25070iLY220,230,280..TS..ATM200107-200408

main89530-25080iLY230,280..TB..ATM..DSL200107-200408

main89530-25090iLY230,280,RZY231,281..ATM..LPG200107-200708

main89530-25100iTRY230..ATM..15T200308-200708

main89530-25110iKDY280..TB..ATM;KDY230..ATM..15T;KDY230..ATM..125T..WT200408-200708

main89530-25120iKDY220,230..ATM..125T..ST200408-200708

main89530-25130iKDY280..TS..ATM200408-200708

main89530-25140iKDY221,231..ATM..125T..ST200709-201008

main89530-25150iKDY281..(T3,TW3)..ATM200709-201008

main89530-25160iKDY281..T2200709-201008

main89530-25170iTRY230..ATM..15T200708-201610

main89530-25180iTRY231,281..ATM200712-201610

main89530-25190iKDY231..ATM..15T;KDY231..ATM..125T..WT200709-201008

main89530-25200iKDY221,231..ATM..125T..ST201008-201610

main89530-25210iKDY281..ATM201008-201610

main89530-25220iKDY231..ATM..15T;KDY231..ATM..125T..WT201008-201610

main89530-25230iTRY230..ATM..15T201610

main89530-25240iTRY231,281..ATM201610

main89530-25250iKDY231..ATM..15T;KDY231..ATM..125T..WT201610

main89530-25260iKDY221,231..ATM..125T..ST201610

main89530-25270iKDY281..ATM201610

89539BRACKET, TRANSMISSION CONTROL COMPUTER

main89539-25010iTRY230..ATM..15T;KDY22#,23#,28#,LY220,230,280,RZY231,281,TRY231,281..ATM200107-201610

9155180814

main91551-80814

91611B0616

main91611-B0616

11 parts on this diagram · 7 diagrams in section
