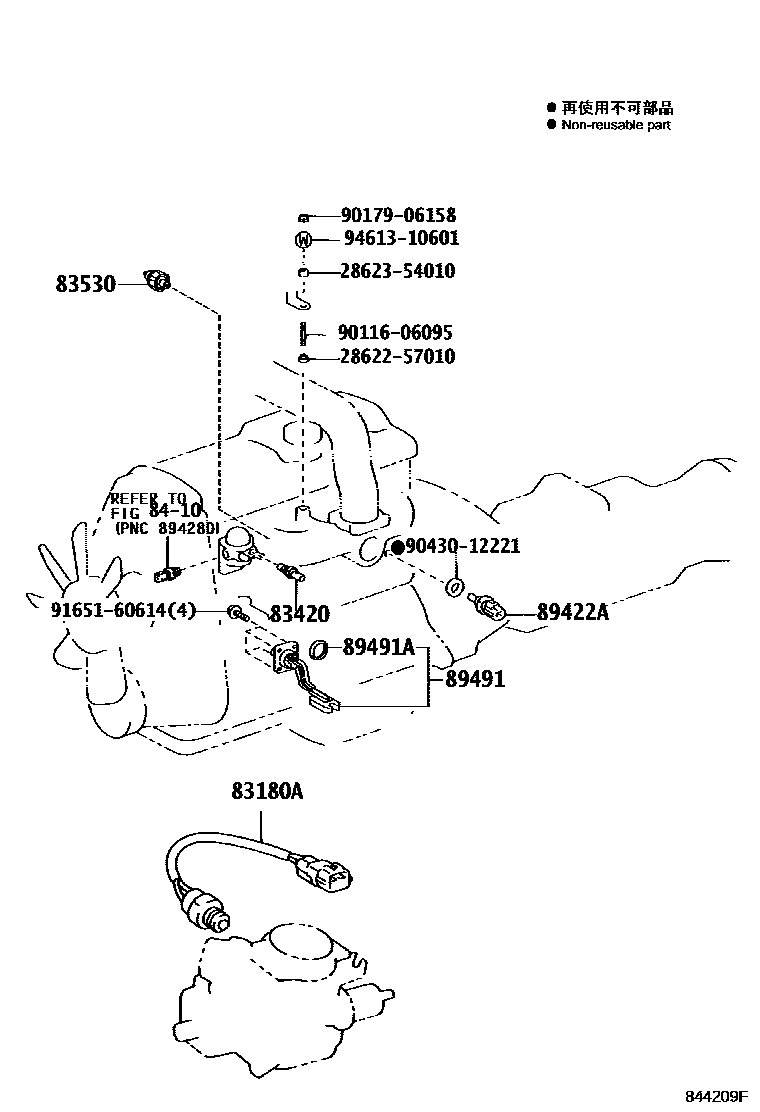

83180APICKUP, REVOLUTION

main83180-35020iLY280..DSL;LY220,230,240,270,290..MTM..DSL200107-200408

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iLY220,230,240,270,280,290,RZY220,230..DSL,EFI200107-200408

main83420-20040iLY230,280,RZY231,281..LPG200107-200708

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iLY230,280,RZY220,23#,281,TRY220,23#,281..EFI,LPG200107

main83530-60010iKDY22#,23#,24#,27#,28#,290200408-201008

main83530-60020iLY230,280,RZY220,23#,281,TRY220,23#,281..EFI,LPG200107

main83530-60030iLY220,230,240,270,280,290..DSL200107-200408

8410

89422ASENSOR, WATER TEMPERATURE

main89422-35010iLY220,230,240,270,280,290..DSL200107-200408

89491SENSOR, ENGINE OIL LEVEL

main89491-25030iTRY220,23#,281200308

main89491-25040iKDY221,231,241,271,281200709-201008

main89491-26141iRZY220,230200107-200308

main89491-26160iLY220,230,240,270,280,290..DSL200107-200408

main89491-26170iKDY220,230,240,270,280,290200408-200708

main89491-26180iKDY221,231,241,271,281201008

main89491-37011iLY230,280,RZY231,281..LPG200107-200708

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iKDY221..T3..TB;KDY231..WT..IV6;KDY231..TS..125T..WT;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

main90430-36005iKDY221,231,241,271,281200709-201008

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

9011606095

main90116-06095

9017906158

main90179-06158

9043012221

main90430-12221

9165160614

main91651-60614

9461310601

main94613-10601

14 parts on this diagram · 20 diagrams in section
