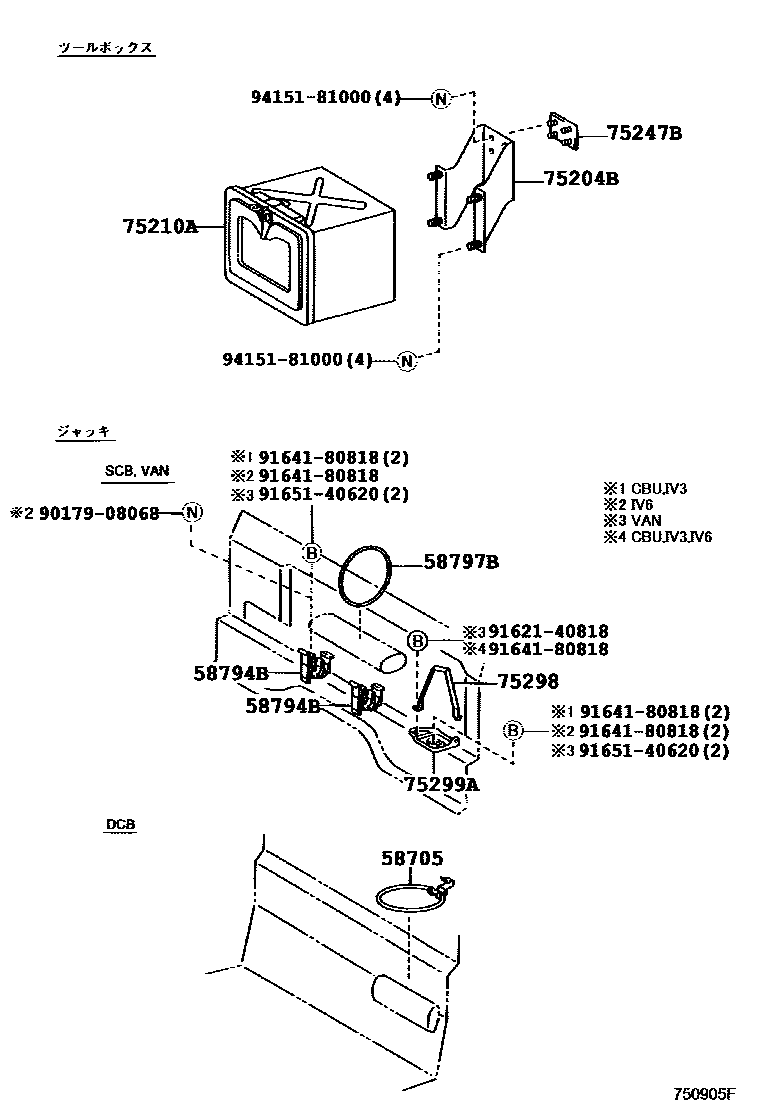

TOOL BOX & LICENSE PLATE BRACKET
58705BAND SUB-ASSY, TOOL BAG
58794BSUPPORT, JACK HANDLE
main58794-37010×2iKDY221..T2,T4;KDY221..T3..TB;KDY231,271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)200107-202111
58797BBAND, JACK CLAMP
main58797-37020iKDY221..T2,T4;KDY221..T3..TB;KDY231,271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)200107-202111
75204BSTAY SUB-ASSY, TOOL BOX
main75204-25030iTRY220..WT;TRY220..T2..ATM;KDY221,231,271..IV3;TRY220..MTM..ST..IV3;TRY220..T3..ATM..IV3;KDY221,231..T4..TB..CBU;KDY231..ATM..125T..ST..CBU;KDY231..(T2,TW2,TW4)..WT..CBU;KDY231,TRY220..(T2,TW1,TW3)..(15T,1T)..ST..CBU;KDY220,230,270,28#,LY220,230,270,280,RZY220,23#,281,TRY23#,281..CBU,IV3200107
75210ABOX ASSY, TOOL
main75210-25040iKDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..CBU,IV3200107-200607
main75210-37210iKDY221,231..T4..IV3;KDY221,231..T4..TB..CBU;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,230,27#,28#,RZY231,281,TRY220,23#,281..CBU,IV3200608-201410
main75210-37220iKDY221,231..T4..IV3;KDY221,231..T4..TB..CBU;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3)201411
75247BSUPPORT, TOOL BOX
main75247-25040iKDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..CBU,IV3200107-200705
75298PLATE, JACK HOLDER
main75298-25020iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..T2,T3,T4,VAN200107-200809
main75298-25021iKDY221..T2,T4;KDY221..T3..TB;KDY231,271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)200810-202111
75299ABASE, JACK HOLDER
main75299-25031iKDY221..T2,T4;KDY221..T3..TB;KDY231,271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)201503-202111
9017908068
main90179-08068
9162140818
main91621-40818
9164180818
main91641-80818
9165140620
main91651-40620
9415181000
main94151-81000
13 parts on this diagram · 2 diagrams in section
