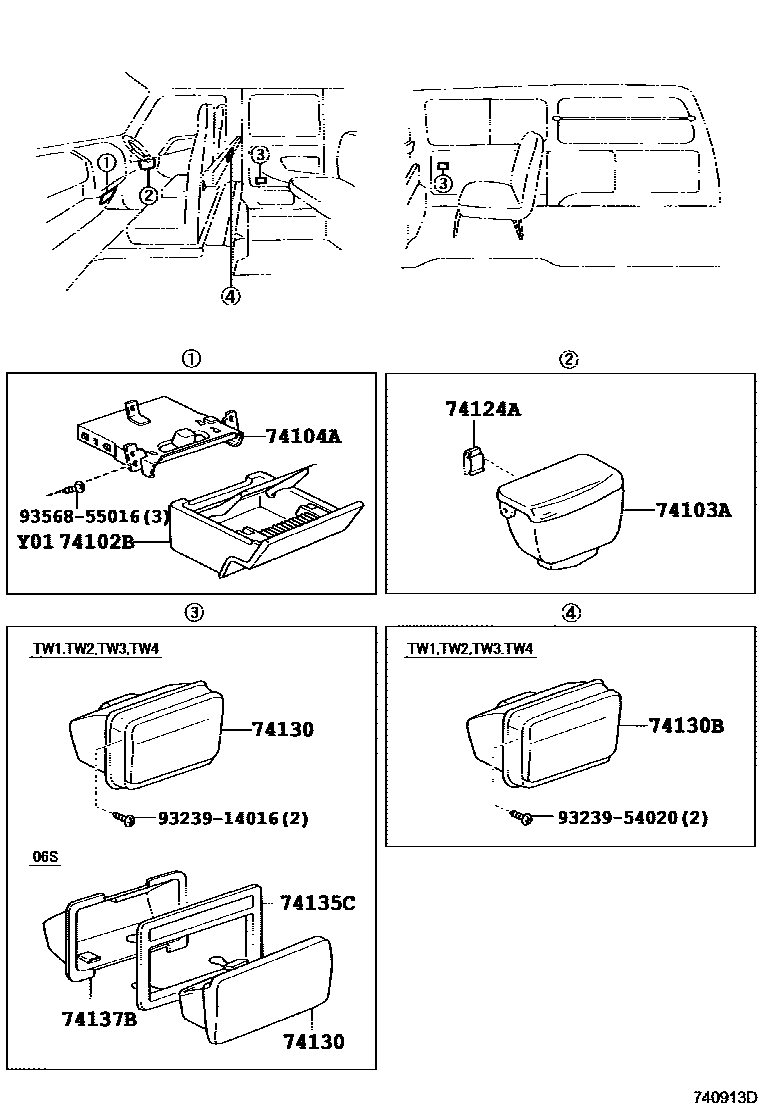

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-37010-B0iKDY220,230,240,270,280,290,RZY231,281200107-200708

MD.CHARCOAL,TRIM1#

main74102-37010-B1iKDY231..1T;KDY221,241..(T3,TW1,VAN)..(06S,TS); TRY220,230..1T201505-201609

GRAY,TRIM1#; GRAY,TRIM13

74103ADOOR SUB-ASSY, FRONT ASH RECEPTACLE

main74103-37010-B0×2iTRY220;TRY230..1T201505-201610

MD.CHARCOAL,TRIM12

main74103-37010-B1×2iKDY231..T3..15T; TRY230..125T,15T201505-201609

GRAY,TRIM1#; GRAY,TRIM13

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-37020iLY230..TW1;LY220..125T..WT;LY230..TB..125T..ST;LY230,280,RZY220,230..EFI,LPG200107-200308

74124ASPRING, ASH RECEPTACLE

main74124-37010×2iKDY231..T3..15T;TRY230..125T,15T200107-201609

74130RECEPTACLE ASSY, REAR ASH

main74105-10010iKDY241..06S200910-201008

main74105-10010-B2iKDY24#,290,LY240,290..06S200107-201505

MD.CHARCOAL,TRIM1#

main74105-10010-B4iKDY241..06S201505-201609

GRAY,TRIM1#

main74130-14020-B4×2iTRY220,230..TW1,TW2,TW3201505-201609

MD.CHARCOAL,TRIM12

main74130-14020-B5×2iTRY220,230..TW1,TW2,TW3201505-201609

GRAY,TRIM13

74130BRECEPTACLE ASSY, REAR ASH

main74130-95401-B1iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4200107-201505

MD.CHARCOAL,TRIM1#

main74130-95401-B3iTRY230..TB..125T;TRY220,230..TW1,TW3; TRY230..TS..125T..WT;KDY221,231,271,281..TW1,TW2,TW3,TW4201505

GRAY,TRIM1#; GRAY,TRIM13

74135CRETAINER, ASH RECEPTACLE

main74135-10030iLY240,290..06S200107-200408

74137BRETAINER, REAR ASH RECEPTACLE, INNER

main74137-10030iLY240,290..06S200107-200408

9323914016

main93239-14016

9323954020

main93239-54020

9356855016

main93568-55016

11 parts on this diagram · 1 diagram in section
