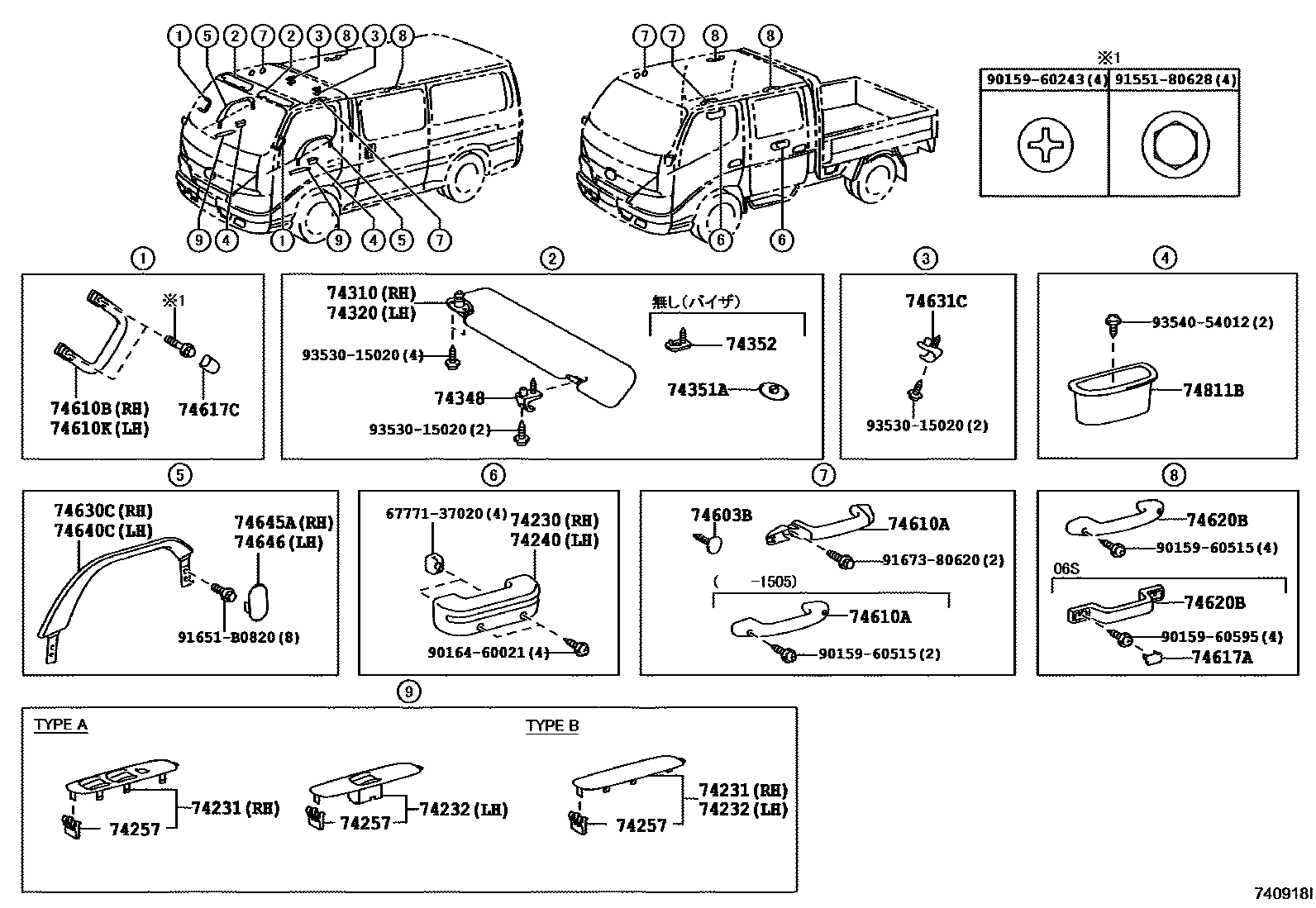

ARMREST & VISOR

74230ARMREST ASSY, REAR, RH

main74210-16060-B0iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4200107-200910

MD.CHARCOAL,TRIM1#

main74210-16061-B0iKDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4200911-201505

MD.CHARCOAL,TRIM1#

main74210-37010-B0iTRY230..TW1;TRY230..TB..125T201610

GRAY,TRIM1#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74201-37010iKDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281201610

main74231-37011-B0iLY220,230,240,270,280,290,RZY220,230200107-200109

main74231-37012-B0iTRY230..IV6201505-201610

main74231-37012-B1iTRY230..TB..125T;TRY220,230..(T2,T3,T4,TW1,TW3)..(CBU,IV3); TRY230..TS..125T..WT;KDY221,231,241,271,281,TRY231,281..CBU,IV3201505

main74231-37020-B0iKDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201505

main74231-37020-B1iKDY221,231..T4..TB;TRY230..TS..125T..WT;KDY241,271,281,TRY231,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3); TRY230..TB..125T;TRY220,230..(T2,T3,T4,TW1,TW3)..(CBU,IV3)201505-202111

main74231-37031iLY220,230,270,280,RZY220,230..T2,T3,T4200107-200109

main74231-37032iKDY221,23#..T2,T3;KDY221,23#..T4..TB;KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4200109-201610

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74202-37010iKDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281201610

main74231-37020-B0iKDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201505

main74231-37020-B1iKDY231,281..IV6; TRY230..IV6201505-201610

main74232-37010-B0iTRY230..TB..125T;TRY220,230..(T2,T3,T4,TW1,TW3)..(CBU,IV3)201505

main74232-37010-B1iKDY231,281..IV6; TRY230..IV6201505-201610

main74232-37020iKDY221,23#..T2,T3;KDY221,23#..T4..TB;KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4200107-201610

74240ARMREST ASSY, REAR, LH

main74210-16060-B0iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4200107-200910

MD.CHARCOAL,TRIM1#

main74210-16061-B0iKDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4200911-201505

MD.CHARCOAL,TRIM1#

main74210-37010-B0iTRY230..TW1;TRY230..TB..125T201610

GRAY,TRIM1#

74257SPRING, ARMREST, NO.1

main74257-37010iLY220,230,240,270,280,290,RZY220,230200107-200109

74310VISOR ASSY, RH

main74310-25040-B0iRZY281200107-200406

main74310-25050-B0iLY270,280,290200107-200408

MD.CHARCOAL,TRIM1#

main74310-25090-B0iLY290200107-200408

main74310-25100-B0iLY290200107-200408

main74310-25120-B0iKDY220,230,240,270,280,290200408-200505

MD.CHARCOAL,TRIM1#

main74310-25130-B0iKDY220,230,240,270,280,290200408-200505

main74310-25160-B0iKDY240,290200408-200504

main74310-25170-B0iKDY240,290200408-200504

main74310-25200-B0iKDY24#,290200505-200903

main74310-25210-B0iKDY24#,290200505-200903

main74310-37040-B0iRZY281200406-200504

MD.CHARCOAL,TRIM1#

main74310-37240-B0iLY240200107-200408

main74310-37270-B0iLY220,230,240,RZY220,23#,TRY220,230200107-200504

main74310-37280-B0iLY240200107-200408

main74310-37510-B0iKDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281200505-201505

MD.CHARCOAL,TRIM1#

main74310-37520-B0iKDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281200505-201505

main74310-37850-B0iKDY221,231,241,271,281,TRY220,23#,281201505

main74310-37860-B0iKDY221,231,241,271,281,TRY220,23#,281201505

GRAY,TRIM1#

74320VISOR ASSY, LH

main74320-37020-B0iRZY231,281,TRY220,230200107-200504

MD.CHARCOAL,TRIM1#

main74320-37070-B0iKDY240,290,LY240,290200107-200504

main74320-37100-B0iKDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,230200107-200505

main74320-37110-B0iKDY240,290,LY240,290200107-200504

main74320-37220-B0iKDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281200505-201505

MD.CHARCOAL,TRIM1#

main74320-37230-B0iKDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281200505-201505

main74320-37240-B0iKDY24#,290200505-200903

main74320-37250-B0iKDY24#,290200505-200903

main74320-37450-B0iKDY221,231,241,271,281,TRY220,23#,281201505-201610

main74320-37451-B0iKDY221,231,241,271,281,TRY220,23#,281201610

main74320-37480-B0iKDY221,231,241,271,281,TRY220,23#,281201505-201610

GRAY,TRIM1#

main74320-37481-B0iKDY221,231,241,271,281,TRY220,23#,281201610

GRAY,TRIM1#

74348HOLDER, VISOR

main74348-22020-B9×2iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

74351ACOVER, VISOR, NO.1

main74351-35010-B2iKDY231,281,TRY230..IV6200107-201610

MD.CHARCOAL,TRIM1#

74352COVER, VISOR, NO.2

main74352-35010-B2iKDY231,281,TRY230..CBU,IV3;KDY22#,230,24#,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281200107

MD.CHARCOAL,TRIM1#

74603BCLIP (FOR ASSIST GRIP)

main90467-05101-B2×4iKDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3); KDY221,231..T4..TS;KDY231,281,TRY230..IV6201307-201505

main90467-06048-B9×4iKDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3)201505

74610AGRIP SUB-ASSY, ASSIST

main74611-48010-B0iKDY221,231,241,271,281,TRY220,23#,281201505-202111

GRAY,TRIM1#

main74611-89101-B2iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201505

MD.CHARCOAL,TRIM1#

74610BGRIP ASSY, ASSIST, NO.2 RH

main74610-37040-B0iKDY221,231,241,271,281,TRY220,23#,281201610-202111

GRAY,TRIM1#

main74610-95404-B1iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-200910

MD.CHARCOAL,TRIM1#

main74610-95405-B1iKDY221,231,241,271,281,TRY220,23#,281200911-201505

MD.CHARCOAL,TRIM1#

main74610-95405-B2iKDY231..T3..15T;TRY230..125T,15T201505-201609

GRAY,TRIM1#

74610KGRIP ASSY, ASSIST, NO.2 LH

main74610-37040-B0iKDY221,231,241,271,281,TRY220,23#,281201610-202111

GRAY,TRIM1#

main74610-95404-B1iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-200910

MD.CHARCOAL,TRIM1#

main74610-95405-B1iKDY221,231,241,271,281,TRY220,23#,281200911-201505

MD.CHARCOAL,TRIM1#

main74610-95405-B2iKDY231..T3..15T;TRY230..125T,15T201505-201609

GRAY,TRIM1#

74617APLUG, ASSIST GRIP

main74617-16010-P8×4iLY240,290..06S200107-200408

MD.CHARCOAL,TRIM1#

74617CPLUG, ASSIST GRIP

main74617-37010-B0×4iKDY221,231,241,271,281,TRY220,23#,281201610-202111

GRAY,TRIM1#

main74617-95J00-B1×4iTRY220;TRY230..1T201505-201610

MD.CHARCOAL,TRIM12

main74617-95J00-B2×4iKDY231..T3..15T; TRY230..125T,15T201505-201609

GRAY,TRIM1#; GRAY,TRIM13

74620BGRIP ASSY, ASSIST, REAR

main74610-20040-B5×2iKDY24#,290,LY240,290..06S200107-201609

MD.CHARCOAL,TRIM1#

main74611-89101-B2×2iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4200107

MD.CHARCOAL,TRIM1#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-37020-B0iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201505

MD.CHARCOAL,TRIM1#

main74630-37020-C0iKDY231..T3..15T; TRY230..125T,15T201505-201609

BLACK,TRIM1#; BLACK,TRIM13

74631CHOOK, COAT

main74348-22020-B9×2iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4200107-202111

MD.CHARCOAL,TRIM1#

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-37010-B0iTRY230..125T,15T201505-201609

MD.CHARCOAL,TRIM12

main74640-37010-C0iKDY231..T3..15T; TRY230..125T,15T201505-201609

BLACK,TRIM1#; BLACK,TRIM13

74645ACOVER, DOOR ASSIST GRIP, RH

main74645-37010-B0iTRY220;TRY230..1T201505-201610

MD.CHARCOAL,TRIM12

main74645-37010-B1iKDY231..T3..15T; TRY230..125T,15T201505-201609

GRAY,TRIM1#; GRAY,TRIM13

74646COVER, DOOR ASSIST GRIP, LH

main74646-37010-B0iTRY230..125T,15T201505-201609

MD.CHARCOAL,TRIM12

main74646-37010-B1iKDY231..T3..15T; TRY230..125T,15T201505-201609

GRAY,TRIM1#; GRAY,TRIM13

74811BHANDLE, DOOR PULL

main74811-95J04-B2×2iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201505

MD.CHARCOAL,TRIM1#

main74811-95J04-B3×2iTRY220,230201505-201610

GRAY,TRIM13

6777137020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-37020

9015960243

main90159-60243

9015960515

main90159-60515

9015960595

main90159-60595

9016460021

main90164-60021

9155180628

main91551-80628

91651B0820

main91651-B0820

9167380620

main91673-80620

9353015020

main93530-15020

9354054012

main93540-54012

33 parts on this diagram · 1 diagram in section
