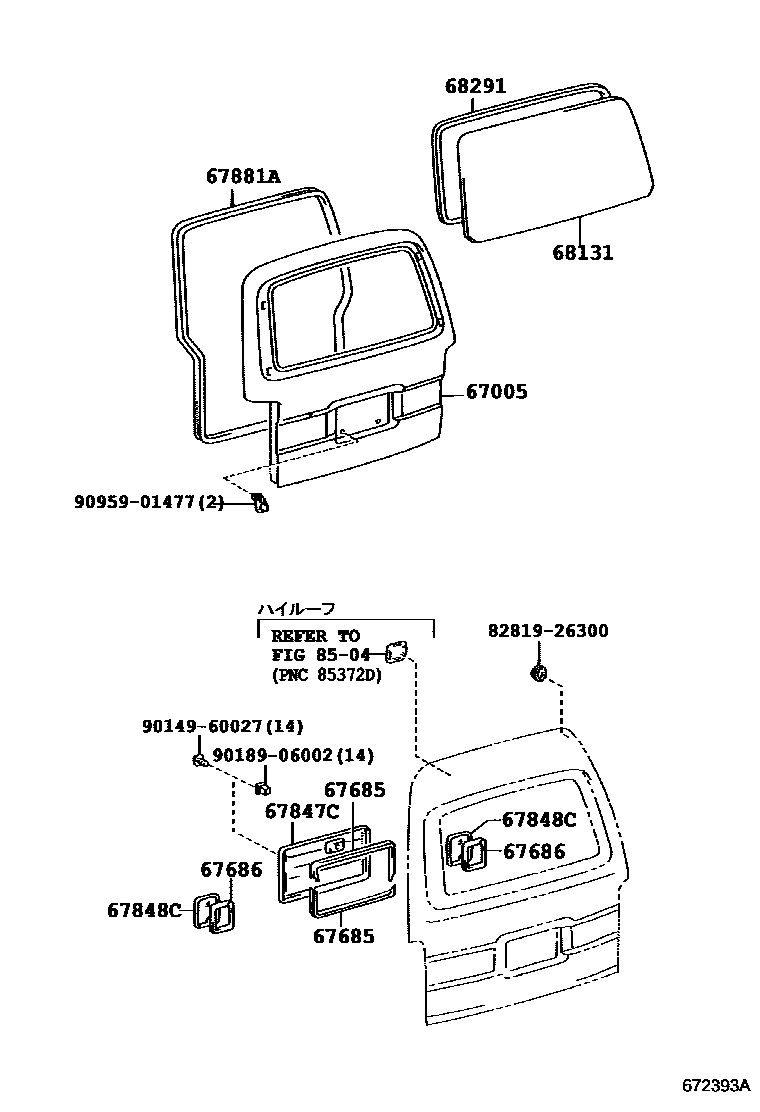

BACK DOOR PANEL & GLASS

0001 1�������������� 0002 1 0003 1�����������������

67005PANEL SUB-ASSY, BACK DOOR

main67005-37080iKDY24#,290,LY240,290200107-200903

main67005-37090iKDY24#,290,LY240,290200107-200903

main67005-95N65iKDY24#,290,LY240,290200107-200903

main67005-95N89iKDY24#,290,LY240,290200107-200903

67685PACKING, BACK DOOR SERVICE HOLE, NO.1

main67685-95J01×2iKDY24#,290,LY240,290200107-200903

67686PACKING, BACK DOOR SERVICE HOLE, NO.2

main67526-95A00×2iKDY24#,290,LY240,290200107-200903

67847COVER, BACK DOOR SERVICE HOLE, RH

main67847-95J07iKDY241..06S200107-201609

67847CCOVER, BACK DOOR SERVICE HOLE, NO.1

main67847-95J05iKDY24#,290,LY240,290200107-200903

67848COVER, BACK DOOR SERVICE HOLE, LH

main67848-95J01iKDY241..06S200107-201609

67848CCOVER, BACK DOOR SERVICE HOLE, NO.2

main67848-95J00×2iKDY24#,290,LY240,290200107-200903

67881AWEATHERSTRIP, BACK DOOR

main67881-26010iKDY241..06S200107-201609

main67881-95J15iKDY24#,290,LY240,290200107-200903

main67881-95J16iKDY24#,290,LY240,290200107-200903

68131GLASS, BACK DOOR

main68131-25020iKDY24#,290200408-200903

main68131-25040iKDY24#,290200408-200903

main68131-26180iLY240,290200107-200408

main68131-26190iLY240,290200107-200408

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-95J05iKDY24#,290,LY240,290200107-200903

8504REAR WASHER

→ Go to FIG 85-04

8281926300GROMMET, WIRING HARNESS

main82819-26300

9014960027

main90149-60027

9018906002

main90189-06002

9095901477

main90959-01477

15 parts on this diagram · 3 diagrams in section
