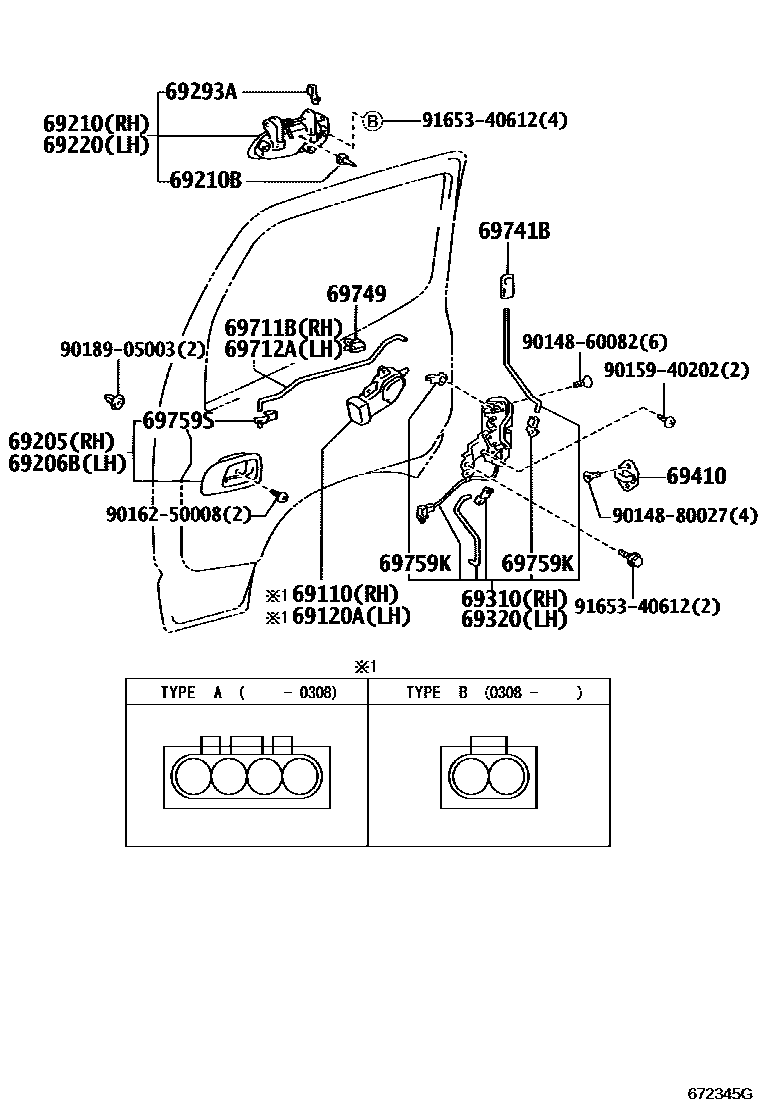

FRONT DOOR LOCK & HANDLE
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
main69110-37050iKDY230..T4..TB;TRY230..TB..125T;KDY221..(T2,T4)..TB;KDY231..(T4,TW2)..TB;KDY231,TRY230..ST..IV6;KDY221..(T2,T3,TW1)..TS;KDY230..T2,T3,TW2,TW3,TW4;KDY231..(T2,T3,TW3200308
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
main69120-37050iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200308
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-37010-B0iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201505
MD.CHARCOAL,TRIM1#
main69205-37010-B0iTRY230..ST..IV6;TRY230..TB..125T;TRY220,230..(T2,T3,T4,TW1,TW3)..(CBU,IV3)201505-202111
MD.CHARCOAL,TRIM12
main69205-37010-B1iTRY230..ST..IV6;TRY230..TB..125T;TRY220,230..(T2,T3,T4,TW1,TW3)..(CBU,IV3)201505-202111
GRAY,TRIM13
main69205-37010-B1iTRY230..ST..IV6;TRY230..TB..125T;TRY220,230..(T2,T3,T4,TW1,TW3)..(CBU,IV3)201505-202111
GRAY,TRIM1#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-37010-B0iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201505
MD.CHARCOAL,TRIM1#
main69206-37010-B0iTRY230..ST..IV6;TRY230..TB..125T;TRY220,230..(T2,T3,T4,TW1,TW3)..(CBU,IV3)201505-202111
MD.CHARCOAL,TRIM12
main69206-37010-B1iTRY230..WT..IV6;TRY230..TS..125T..WT;KDY221,231,241,271,281,TRY231,281201505-202111
GRAY,TRIM1#
main69206-37010-B1iTRY230..ST..IV6;TRY230..TB..125T;TRY220,230..(T2,T3,T4,TW1,TW3)..(CBU,IV3)201505-202111
GRAY,TRIM13
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-37020iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
main90541-04015iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69220-37020iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
main69293-12050iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111
main69293-12060iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111
69310LOCK ASSY, FRONT DOOR, RH
main69310-37070iKDY221,23#..T4..TB;KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3200107-202111
main69310-37080iKDY221..T4..TB;KDY221..T2,T3,TW1;KDY220,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107
69320LOCK ASSY, FRONT DOOR, LH
main69320-37060iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107
main69320-37110iKDY23#..T4..TS;KDY22#,23#,280..TB..MTM..15T..WT..IV3;KDY27#,RZY231,281,TRY231,281..(T3,T4)..IV3200408-201610
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-20110iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
main69711-37010iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
main69712-37010iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111
69741BKNOB, FRONT DOOR LOCK CONTROL
main69741-12040-B3iTRY230..ST..IV6;TRY230..TB..125T;TRY220,230..(T2,T3,T4,TW1,TW3)..(CBU,IV3)201505-202111
MD.CHARCOAL,TRIM12
sub69741-12040
main69741-12040-B3iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201505
MD.CHARCOAL,TRIM1#
sub69741-12040
main69741-12040-C0iTRY230..ST..IV6;TRY230..TB..125T;TRY220,230..(T2,T3,T4,TW1,TW3)..(CBU,IV3)201505-202111
BLACK,TRIM13
sub69741-12040
main69741-12040-C0iTRY230..ST..IV6;TRY230..TB..125T;TRY220,230..(T2,T3,T4,TW1,TW3)..(CBU,IV3)201505-202111
BLACK,TRIM1#
sub69741-12040
69749CLAMP, FRONT DOOR LOCK LINK
main69749-12070iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111
69759KSNAP, DOOR LOCK CONTROL LINK
main69759-20040iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107
main69759-20050iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107
main69759-24010iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107
main69759-24020iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107
69759SSNAP, FRONT DOOR INSIDE HANDLE
main69759-22040iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111
main69759-22050iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111
9014860082
main90148-60082
9014880027
main90148-80027
9015940202
main90159-40202
9016250008
main90162-50008
9018905003
main90189-05003
9165340612
main91653-40612
23 parts on this diagram · 1 diagram in section
