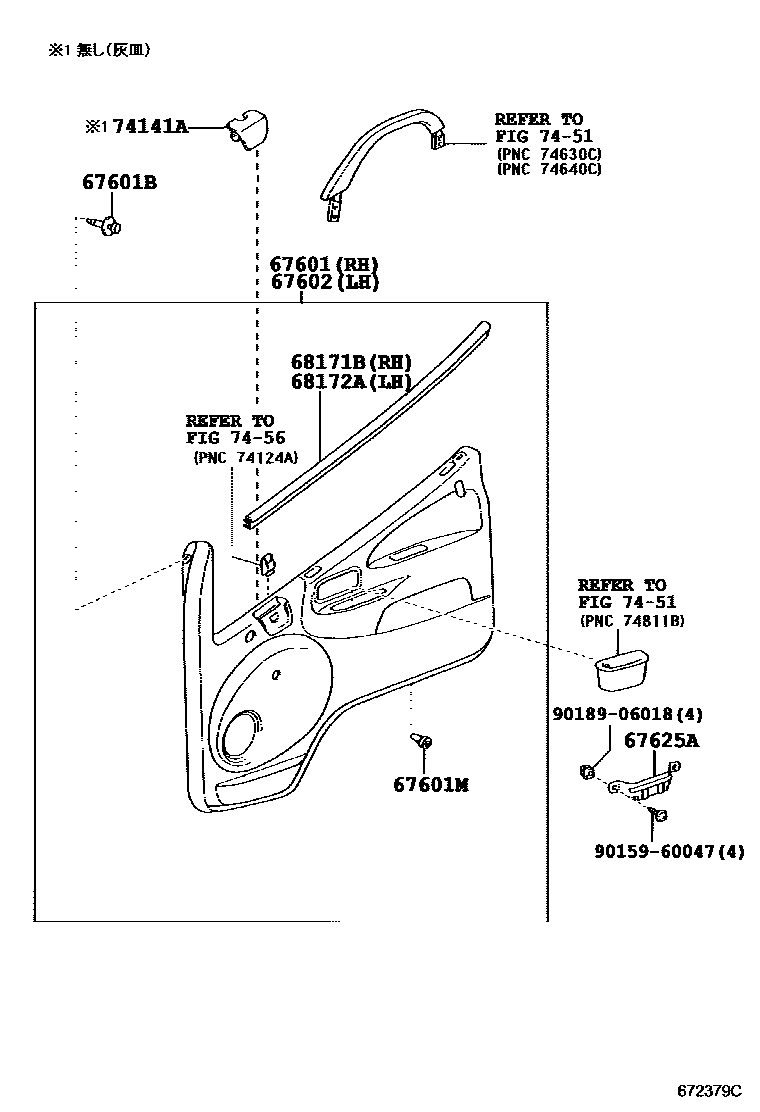

FRONT DOOR PANEL & GLASS

0001 1������ 0002 1������� 0003 1�������

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-37080-B0iTRY220;TRY230..1T201505-201610

main67610-37080-B6iKDY231,281..IV6; TRY220;TRY230..1T201505-201610

main67610-37090-B0iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201505

MD.CHARCOAL,TRIM1#

main67610-37090-B6iKDY231..T3..15T; TRY230..125T,15T201505-201609

GRAY,TRIM1#; GRAY,TRIM13

main67610-37120-B0iKDY22#,23#,280,RZY231,TRY231..TB..MTM..15T..WT..IV3200505-201505

main67610-37120-B2iKDY221,231,TRY231..TB..MTM..15T..WT..IV3201505

main67610-37130-B0iKDY231..T4..TS..IV3;KDY230..T4..MTM..IV3;KDY22#,231,280,RZY231,TRY231..TB..MTM..15T..WT..IV3200505-201505

main67610-37130-B2iKDY231..T4..TS..IV3;KDY221,231,TRY231..TB..MTM..15T..WT..IV3201505

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07071-B6×2iTRY230..125T,15T201505-201609

MD.CHARCOAL,TRIM12

main90467-07071-P4×2iKDY231..T3..15T; TRY230..125T,15T201505-201609

GRAY,TRIM1#; GRAY,TRIM13

67601MRETAINER, DOOR TRIM, NO.2

main67771-12050×16iLY220,230,240,270,280,290,RZY220,230200107-200308

main90467-09206×16iKDY231..T3..15T;TRY230..ST..IV6;TRY230..TB..125T;TRY230..(T2,T3,T4,TW1)..(CBU,IV3)201610

main90467-10188×16iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200308-201101

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-37130-B0iTRY230..125T,15T201505-201609

MD.CHARCORL,TRIM12

main67620-37130-B6iKDY231,281..IV6; TRY220;TRY230..1T201505-201610

main67620-37140-B0iTRY230..125T,15T201505-201609

MD.CHARCOAL,TRIM12

main67620-37140-B6iKDY231..T3..15T; TRY230..125T,15T201505-201609

GRAY,TRIM1#; GRAY,TRIM13

main67620-37170iKDY220,230,280,RZY231..TB..MTM..15T..WT..IV3200607-200708

main67620-37170-B0iKDY220,230,280,RZY231..TB..MTM..15T..WT..IV3200505-200607

main67620-37170-B5iKDY221,231,TRY231..TB..MTM..15T..WT..IV3201505

main67620-37180-B4iKDY231..T4..TS..IV3;KDY230..T4..MTM..IV3;KDY22#,231,280,RZY231,TRY231..TB..MTM..15T..WT..IV3200505-201505

main67620-37180-B5iKDY231..T4..TS..IV3;KDY221,231,TRY231..TB..MTM..15T..WT..IV3201505

67625ABRACKET, FRONT DOOR TRIM, NO.1

main67625-26010×2iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-37010×2iLY220,230,240,270,280,290,RZY231,281,TRY220,230200309-200311

main68171-37011iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200403-202111

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-37010iLY220,230,240,270,280,290,RZY231,281,TRY220,230200311-200403

main68172-37011iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200403-202111

74141AGARNISH, FRONT ASH RECEPTACLE, NO.1

main74141-25010-B0×2iKDY231..T4..TS..IV3;KDY230..T4..MTM..IV3;KDY22#,231,280,RZY231,TRY231..TB..MTM..15T..WT..IV3200505-201505

MD.CHARCOAL,TRIM1#

main74141-25010-B1×2iKDY231..T4..TS..IV3;KDY221,231,TRY231..TB..MTM..15T..WT..IV3201505

GRAY,TRIM1#

7451ARMREST & VISOR

→ Go to FIG 74-51

7456ASH RECEPTACLE

→ Go to FIG 74-56

9015960047

main90159-60047

9018906018

main90189-06018

12 parts on this diagram · 3 diagrams in section
