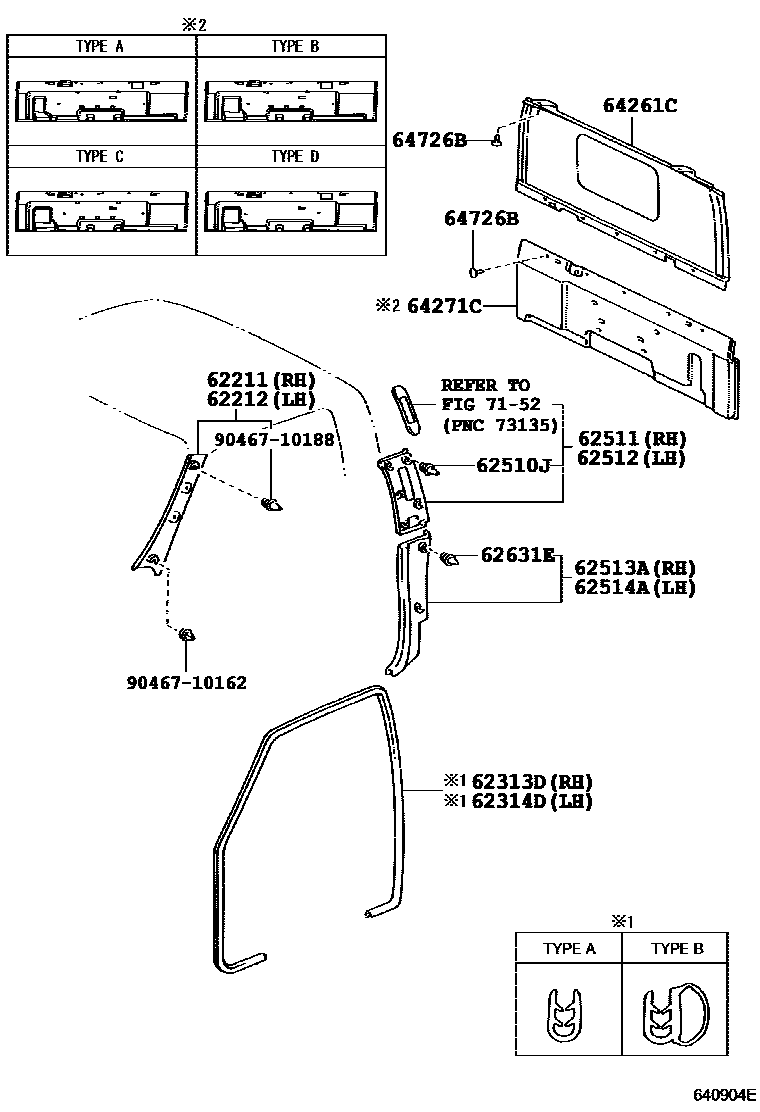

INSIDE TRIM BOARD

0001 1 0002 1 0003 1 0004 1

62211GARNISH, FRONT PILLAR, RH

main62210-37010-B0iKDY221,231,241,271,281,TRY220,23#,281201610-202111

GRAY,TRIM1#

main62211-37010-B0iKDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200608

MD.CHARCOAL,TRIM1#

sub62211-37011

main62211-37011-B0iKDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281200609-200910

MD.CHARCOAL,TRIM1#

sub62211-37012

main62211-37012-B0iKDY221,231,241,271,281,TRY220,23#,281200911-201505

MD.CHARCOAL,TRIM1#

main62211-37012-B1iKDY231..T3..15T;TRY230..125T,15T201505-201610

GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-37010-B0iKDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200608

MD.CHARCOAL,TRIM1#

sub62212-37011

main62212-37011-B0iKDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281200609-200910

MD.CHARCOAL,TRIM1#

sub62212-37012

main62212-37012-B0iKDY221,231,241,271,281,TRY220,23#,281200911-201505

MD.CHARCOAL,TRIM1#

main62212-37012-B1iKDY231..T3..15T;TRY230..125T,15T201505-201610

GRAY,TRIM1#

main62220-37010-B0iKDY221,231,241,271,281,TRY220,23#,281201610-202111

GRAY,TRIM1#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-37040-B0iLY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200312

sub62313-37041

main62313-37041-B0iKDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY231,281,TRY220,230200312-200608

main62313-37050-B0iTRY230..T2,T3,T4201505-201610

main62313-37050-B0iKDY221,23#..T2,T3;KDY221,23#..T4..TB;KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4200107-201505

main62313-37050-B1iKDY231..T2;KDY221..T2,T3;TRY230..WT..IV6;KDY231..T3..125T;KDY221,231..T4..TB;KDY271,281,TRY231,281..T2,T3,T4201505-201609

main62313-37050-B1iKDY231..T3..15T201505-201610

main62313-37060-B0iKDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281200609-201505

sub62313-37080

main62313-37080-B0iKDY231..T3..15T;TRY230..125T,15T201505-202111

62314DTRIM, FRONT DOOR OPENING, LH

main62313-37040-B0iLY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200312

sub62313-37041

main62313-37041-B0iKDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY231,281,TRY220,230200312-200608

main62314-37010-B0iKDY221,23#..T2,T3;KDY221,23#..T4..TB;KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4200107-201505

main62314-37010-B0iTRY230..T2,T3,T4201505-201610

main62314-37010-B1iKDY231..T3..15T201505-201609

main62314-37010-B1iKDY231..T3..15T201505-201610

main62314-37020-B0iKDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281200609-201505

sub62314-37040

main62314-37040-B0iKDY231,281..IV6201505-202111

62510JRETAINER, QUARTER TRIM

main67771-12050iLY220,230,270,280,RZY220,230..T2,T3,T4200107-200308

main90467-10161iKDY231..T3..15T;TRY230..ST..IV6;TRY230..(T2,T3,T4)..(CBU,IV3)201310-201609

main90467-10188iKDY22#,23#,27#,28#,LY220,230,270,280,RZY231,281,TRY220,23#,281..T2,T3,T4200308-201310

62511BOARD, QUARTER INSIDE TRIM, RH

main62510-37060-B0iKDY231..T3..15T;TRY230..ST..IV6;TRY230..(T2,T3,T4)..(CBU,IV3)201505-201609

GRAY,TRIM1#

main62510-37060-B1iKDY221,231,271,281,TRY220,23#,281..T2,T3,T4201310-201505

MD.CHARCOAL,TRIM1#

main62511-37010-B0iKDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..T2,T3,T4200107-200607

MD.CHARCOAL,TRIM1#

sub62511-37011

main62511-37011-B0iKDY22#,23#,27#,28#,RZY231,281,TRY220,23#,281..T2,T3,T4200608-201309

MD.CHARCOAL,TRIM1#

sub62510-37060

62512BOARD, QUARTER INSIDE TRIM, LH

main62512-25010-B0iLY230,280..IV6200107-200408

sub62512-25011

main62512-25010-B0iKDY230,280,RZY230,TRY230..IV6200207-200607

MD.CHARCOAL,TRIM1#

sub62512-25011

main62512-25011-B0iKDY23#,28#,TRY230..IV6200608-201309

MD.CHARCOAL,TRIM1#

sub62520-25020

main62512-37010-B0iKDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3)200107-200607

MD.CHARCOAL,TRIM1#

sub62512-37011

main62512-37011-B0iKDY22#,23#,27#,28#,RZY231,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)200608-201309

MD.CHARCOAL,TRIM1#

sub62520-37040

main62520-25020-B0iKDY231,281,TRY230..IV6201310-201505

MD.CHARCOAL,TRIM1#

main62520-25020-B1iKDY231,281..IV6;TRY230..WT..IV6201505-201609

GRAY,TRIM1#

main62520-37040-B0iKDY231..T3..15T;TRY230..(T2,T3,T4)..(CBU,IV3)201505-201609

GRAY,TRIM1#

main62520-37040-B1iKDY221,231,271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)201310-201505

MD.CHARCOAL,TRIM1#

62513APANEL, QUARTER TRIM, LOWER RH

main62513-37010-B0iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-200910

MD.CHARCOAL,TRIM1#

sub62513-37011

main62513-37011-B0iKDY221,231,241,271,281,TRY220,23#,281200911-201309

MD.CHARCOAL,TRIM1#

sub62530-37020

main62530-37020-B0iKDY231..T3..15T;TRY230..125T,15T201505-202111

GRAY,TRIM1#

main62530-37020-B1iKDY221,231,241,271,281,TRY220,23#,281201310-201505

MD.CHARCOAL,TRIM1#

62514APANEL, QUARTER TRIM, LOWER LH

main62514-37010-B0iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-200910

MD.CHARCOAL,TRIM1#

sub62514-37011

main62514-37011-B0iKDY221,231,241,271,281,TRY220,23#,281200911-201309

MD.CHARCOAL,TRIM1#

sub62540-37020

main62540-37020-B0iKDY231..T3..15T;TRY230..125T,15T201505-202111

GRAY,TRIM1#

main62540-37020-B1iKDY221,231,241,271,281,TRY220,23#,281201310-201505

MD.CHARCOAL,TRIM1#

62631ERETAINER, QUATER TRIM

main67771-12050iLY220,230,240,270,280,290,RZY220,230200107-200308

main90467-10161iKDY231..T3..15T;TRY230..ST..IV6;TRY230..TB..125T;TRY230..(T2,T3,T4,TW1)..(CBU,IV3)200308-202111

64261CGARNISH, BACK PANEL, UPPER

main64261-37010-B0iTRY230..(T2,T3,T4)..(CBU,IV3)200107-201505

MD.CHARCOAL,TRIM1#

main64261-37010-B1iTRY230..(T2,T3,T4)..(CBU,IV3)201505-201610

GRAY,TRIM1#

main64261-37010-B1iTRY230..(T2,T3,T4)..(CBU,IV3)201505-201610

MD.CHARCOAL,TRIM1#

64271CTRIM, BACK PANEL

main64271-37011-B0iLY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3)200107-200207

sub64271-37012

main64271-37012-B0iLY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3)200207-200408

main64271-37100-B0iLY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3)200107-200207

sub64271-37101

main64271-37101-B0iLY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3)200207-200408

main64271-37140-B0iKDY220,230,270,280,RZY231,281,TRY220,230..(T2,T3,T4)..(CBU,IV3)200408-200604

main64271-37150-B0iKDY220,230,270,280,RZY231,281,TRY220,230..(T2,T3,T4)..(CBU,IV3)200408-200604

main64271-37460-B0iKDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,RZY231,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)200604-201012

main64271-37461-B0iKDY221,231..T4..TB;KDY221,231..(T2,T3)..(CBU,IV3);KDY271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)201012-201505

main64271-37461-B1iKDY221..T2,T3;KDY221..T4..TB;KDY231..(T2,T3)..TS..(CBU,IV3);KDY231..(T2,T4)..TB..(CBU,IV3);KDY271,281,TRY220,231,281..(T2,T3,T4)..(CBU,IV3)201505-201609

GRAY,TRIM1#

main64271-37470-B0iKDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,RZY231,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)200604-201012

main64271-37471-B0iKDY221,231..T4..TB;KDY221,231..(T2,T3)..(CBU,IV3);KDY271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)201012-201505

sub64271-37461

main64271-37471-B1iKDY231..T3..15T;TRY230..(T2,T3,T4)..(CBU,IV3)201505-201609

sub64271-37461

64726BCLIP, DECK REAR TRIM

main64726-37010-B0iKDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)200107-201505

MD.CHARCOAL,TRIM1#

main64726-37010-B0iKDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)200107-201505

main90467-06048-P3iKDY221..T3201505-201609

GRAY,TRIM1#

sub90467-06048

main90467-06048-P3iKDY221..T3201505-201609

sub90467-06048

7152

9046710162

main90467-10162

9046710188

main90467-10188

16 parts on this diagram · 4 diagrams in section
