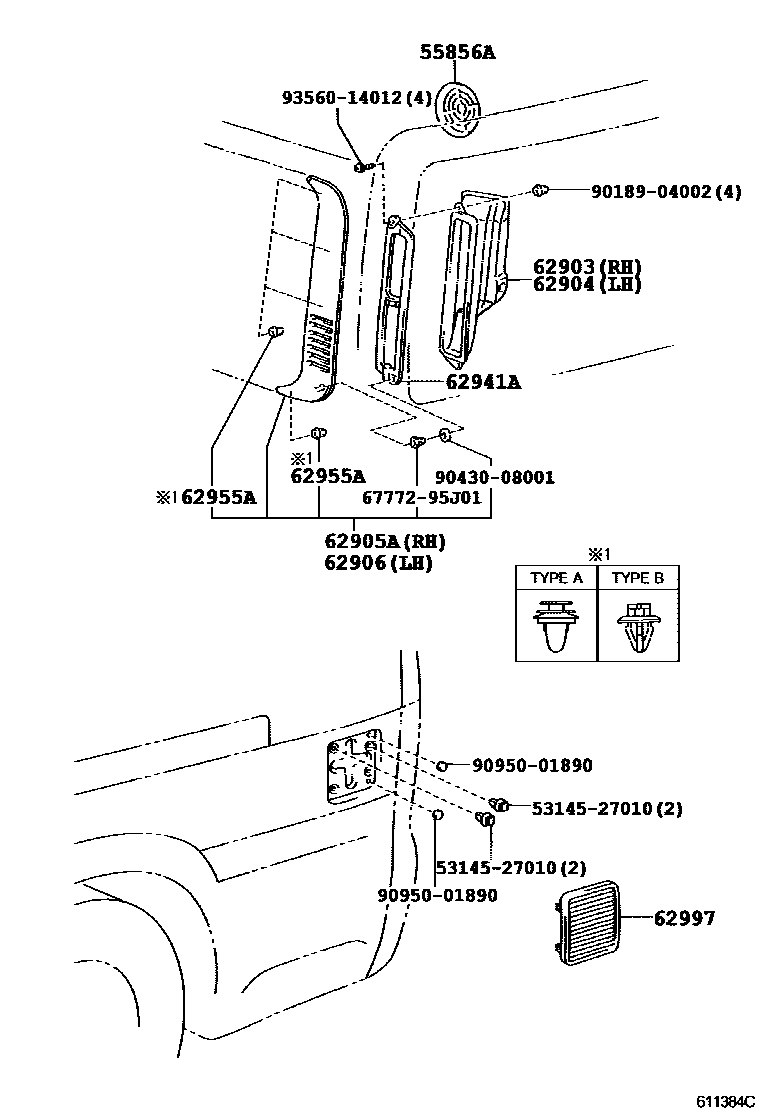

REAR VENTILATOR & ROOF VENTILATOR

55856ALOUVER, REAR VENTILATOR

main55856-95J00-B1×2iKDY24#,290,LY240,290200107-201505

LT. BLUISH GRAY,TRIM1#

main55856-95J00-C0×2iKDY241..06S201505-201609

BLACK,TRIM1#

62903DUCT SUB-ASSY, QUARTER VENTILATOR, RH

main62903-95J00iKDY241..03S;KDY240,290,LY240,290200107

62904DUCT SUB-ASSY, QUARTER VENTILATOR, LH

main62904-95J00iKDY241..06S200107-201609

62905ALOUVER, QUATER VENTILATION, RH

main62905-26030iKDY241..06S200107-201609

62906LOUVER, QUATER VENTILATION, LH

main62906-26030iKDY241..03S;KDY240,290,LY240,290200107

62941ARETAINER, QUARTER VENT DUCT

main62941-95J01iKDY241..03S;KDY240,290,LY240,290200107

main62942-95J01iKDY241..06S200107-201609

62955ARETAINER, QUARTER VENT LOUVER

main62955-26010×2iKDY241..03S;KDY240,290,LY240,290200107

main90467-10077×6iKDY241..06S200107-201609

62997COVER, QUARTER VENT HOLE

main62997-37010iKDY241..06S200107-201609

5314527010BRACKET,RADIATOR GRILLE MOUNTING, RH

main53145-27010

6777295J01WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J01

9018904002

main90189-04002

9043008001

main90430-08001

9095001890

main90950-01890

9356014012

main93560-14012

14 parts on this diagram · 1 diagram in section
