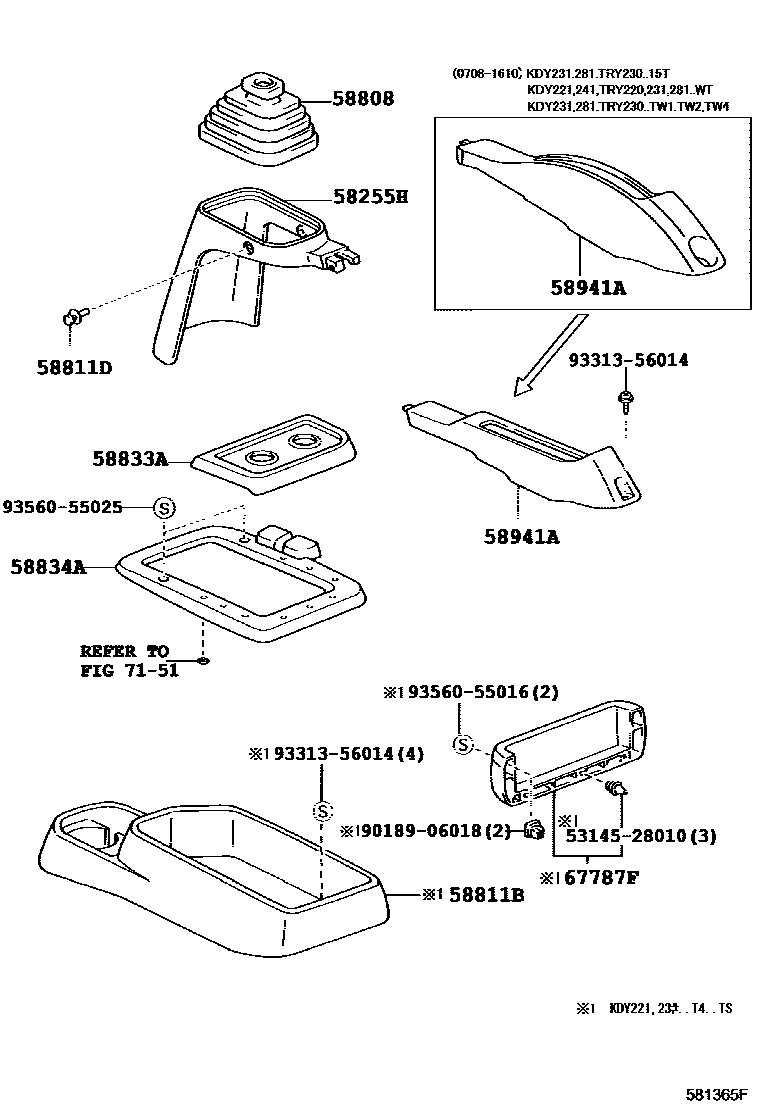

CONSOLE BOX & BRACKET

0001 1 0002 1

58255HCOVER, SHIFT LEVER BOOT

main58255-37020-B0iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-200909

DK.CHARCOAL,TRIM1#

sub58255-37021

main58255-37021-B0iKDY221,231,241,271,281,TRY220,23#,281200910-201505

DK.CHARCOAL,TRIM1#

main58255-37021-B1iKDY231..T3..15T;TRY230..ST..IV6;TRY230..TB..125T;TRY230..(T2,T3,T4,TW1)..(CBU,IV3)201505-202111

GRAY,TRIM1#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-37020-B0iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM200107-200909

DK.CHARCOAL,TRIM1#

sub58808-37021

main58808-37021-B0iKDY221,231,241,271,281,TRY220,23#,281..MTM200910-201505

DK.CHARCOAL,TRIM1#

main58808-37021-C0iKDY231..T3..MTM;TRY230..MTM..(125T,15T)201505-202111

BLACK,TRIM1#

58811BBOX, CONSOLE

main58811-37040-B0iKDY230..T4..TS200605-200909

MD.CHARCOAL,TRIM1#

sub58811-37041

main58811-37041-B0iKDY221,231..T4..TS200910-201301

MD.CHARCOAL,TRIM1#

sub58811-37042

main58811-37042-B0iKDY221,231..T4..TS201302-201505

MD.CHARCOAL,TRIM1#

main58811-37042-B1iKDY221,231..T4..TS201505

GRAY,TRIM1#

58811DCLIP(FOR CONSOLE BOX)

main90467-07191-B0iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201505

DK.CHARCOAL,TRIM1#

sub90467-07191

main90467-07191-B0iTRY220;TRY230..1T201505-201610

DK.CHARCOAL,TRIM12

sub90467-07191

main90467-07191-C1iTRY230..125T,15T201505-202111

BLACK,TRIM1#

sub90467-07191

main90467-07191-C1iKDY231..T3..15T201505-201610

BLACK,TRIM13

sub90467-07191

58833ACOVER, CONSOLE, UPPER

main58839-37010-B0iKDY221,231..T4..TB;KDY271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4200909-201505

MD.CHARCOAL,TRIM1#

main58839-37010-B1iKDY221,231..T4..TB;KDY271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4201505

GRAY,TRIM1#

main58839-95400-B0iKDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281200107-200909

MD.CHARCOAL,TRIM1#

sub58839-95400

sub58839-37010

58834ACOVER, CONSOLE, LOWER

main58834-25010-B0iKDY23#,28#,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4200107-200909

MD.CHARCOAL,TRIM1#

sub58834-25011

main58834-25011-B0iKDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4200909-201505

MD.CHARCOAL,TRIM1#

main58834-25011-B1iKDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4201505

GRAY,TRIM1#

main58834-25020-B0iKDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)200107-200909

MD.CHARCOAL,TRIM1#

sub58834-25021

main58834-25021-B0iKDY221,231..T4..TB;KDY221,231..(T2,T3)..(CBU,IV3);KDY271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)200909-201505

MD.CHARCOAL,TRIM1#

main58834-25021-B1iKDY221,231..T4..TB;KDY221,231..(T2,T3)..(CBU,IV3);KDY271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)201505

GRAY,TRIM1#

58941ACOVER, PARKING BRAKE HOLE

main58941-37010-B0iTRY220..WT;TRY230..15T;TRY230..TW1,TW2200107-200909

DK.CHARCOAL,TRIM1#

sub58941-37011

main58941-37011-B0iKDY221,231,271,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T)200910-201505

DK.CHARCOAL,TRIM1#

main58941-37011-B1iKDY281,TRY230..TW1;KDY231,TRY230..TB..125T;KDY221,241,TRY220,231,281..WT;KDY231,281,TRY230..15T..(CBU,IV3)201505-202111

GRAY,TRIM1#

main58941-37050-B0iKDY231,281,TRY230..15T;KDY221,241,TRY220,231,281..WT;KDY231,281,TRY230..TW1,TW2,TW4200708-201505

DK.CHARCOAL,TRIM1#

main58941-37050-B1iKDY231,281,TRY230..15T;KDY221,241,TRY220,231,281..WT;KDY231,281,TRY230..TW1,TW2,TW4201505-201610

GRAY,TRIM1#

67787FPOCKET, REAR DOOR TRIM, RH

main67787-37040-B0iKDY230..T4..TS200605-201505

MD.CHARCOAL,TRIM1#

main67787-37040-B1iKDY221,231..T4..TS201505

GRAY,TRIM1#

7151

5314528010BRACKET,RADIATOR GRILLE MOUNTING, RH

main53145-28010

9018906018

main90189-06018

9331356014

main93313-56014

9356055016

main93560-55016

9356055025

main93560-55025

14 parts on this diagram · 2 diagrams in section
