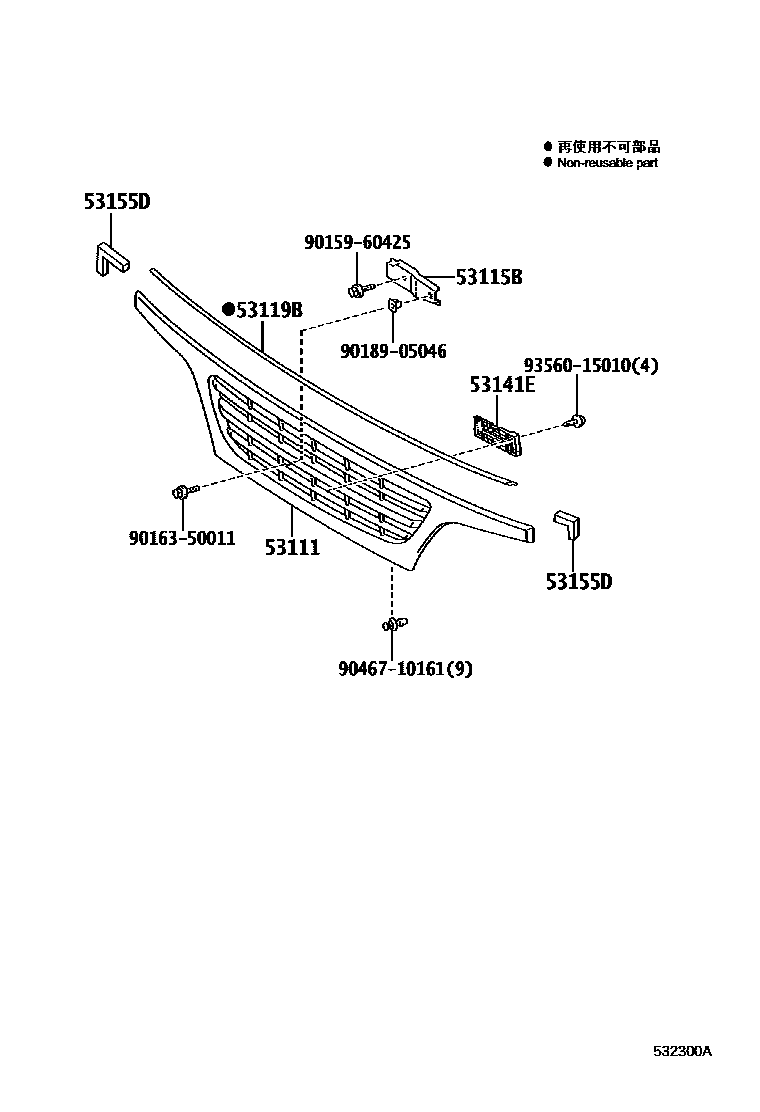

RADIATOR GRILLE

0001 1 0002 1 0003 1

53111GRILLE, RADIATOR

main53111-25080-A0iKDY220,230,240,270,280,290,RZY231,281,TRY220,230200408-200708

WHITE,058

main53111-25080-B0iKDY270..T3..IV3;KDY230,280..T4..MTM..IV3;KDY220,RZY231,281..TB..IV3200408-200708

COBALT GREEN,9A7

main53111-25080-B1iKDY220,270..T3..MTM..IV3;KDY280..T3..MTM..15T..IV3;KDY230,RZY231..TB..MTM..15T..WT..IV3200408-200708

MARUDAI RED,968

main53111-25080-B2iKDY220,230,270,280,RZY231,281,TRY220,230..T2,T3,T4200408-200708

SILVER ME.,199

main53111-25080-H0iKDY220,230,240,270,280,290,RZY231,281,TRY220,230200408-200708

TURQUOISE,766

main53111-25080-J0iKDY220,230,240,270,280,290,RZY231,281,TRY220,230200408-200708

BLUE,8P0

main53111-25090iKDY230..T4..TB;KDY230..T2,T3,TW2,TW3,TW4;KDY220,240,270,280,290,RZY231,281,TRY220,230200408-200708

main53111-37220-A0iLY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200408

WHITE,058

main53111-37220-B0iTRY220,230..T2,T3,T4;LY220,230,270,280,RZY220,23#,281200107-200408

SILVER ME,199

main53111-37220-B1iLY270..125T..IV3;LY230,280..LPG..IV3;LY220,RZY231,281..TB..IV3;LY230,280..T4..MTM..DSL..IV3200112-200408

COBALT GREEN,9A7

main53111-37220-B2iLY220,270..T3..MTM..IV3;LY280..T3..MTM..15T..IV3;LY230,RZY231..TB..MTM..15T..WT..IV3200107-200408

MARUDAI RED,968

main53111-37220-H0iLY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200408

TURQUOISE,766

main53111-37220-J1iLY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200408

BLUE,8P0

main53111-37230iLY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200408

main53111-37700iKDY221,231,241,271,281,TRY220,23#,281200708-201610

main53111-37710-A0iKDY221,231,241,271,281,TRY220,23#,281200708-201610

WHITE,058

main53111-37710-B0iKDY221,231,271,281,TRY220,23#,281..T2,T3,T4200708-201610

SILVER ME.,199

main53111-37710-B2iKDY281..15T..IV3;KDY221,271..T3..MTM..IV3;KDY231,TRY231..TB..MTM..15T..WT..IV3200709-201610

MARUDAI RED,968

main53111-37710-H0iKDY221,231,241,271,281,TRY220,23#,281200708-201610

TURQUOISE,766

main53111-37710-J0iKDY221,231,241,271,281,TRY220,23#,281200708-201610

BLUE,8P0

main53111-37720iKDY231..T4..TB;KDY231..T2,T3,TW2,TW3,TW4;KDY221,241,271,281,TRY220,23#,281200708-201610

main53111-37A01-A0iKDY221,231,241,271,281,TRY220,23#,281201610-202111

WHITE,058

main53111-37A01-B1iKDY221,231,271,281,TRY220,23#,281201610-202111

SILVER ME.,199

main53111-37A01-B2iKDY231..T4..TS..IV3;KDY271,TRY231,281..IV3;KDY221,231..TB..MTM..15T..WT..IV3201610-202111

COBALT GREEN,9A7

main53111-37A01-B3iKDY281..15T..IV3;KDY221,271..T3..MTM..IV3;KDY231,TRY231..TB..MTM..15T..WT..IV3201610-202111

MARUDAI RED,968

main53111-37A01-H0iKDY221,231,241,271,281,TRY220,23#,281201610-202111

TURQUOISE,766

main53111-37A01-J1iKDY221,231,241,271,281,TRY220,23#,281201610-202111

BLUE,8P0

main53111-37A11iKDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281201610

53115BBRACKET, RADIATOR GRILLE

main53115-37050iKDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200708

main53115-37080iKDY221,231,241..(T4,VAN)..(03S,TS)201610-202111

53119BPROTECTOR, RADIATOR GRILLE

main53119-37020iKDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230; KDY230..T4..TB;KDY230..T2,T3,TW2,TW3,TW4;KDY220,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200708

main53119-37080-B0iKDY271,TRY231,281..IV3;KDY221,231..TB..MTM..15T..WT..IV3; KDY271,TRY231..MTM..IV3;KDY231..TB..MTM..15T..WT..IV3; KDY281..15T..IV3;KDY221..T3..MTM..IV3; TRY231..ATM..IV3;KDY231..T4..TS..IV3;KDY221,TRY281..TB..IV3200709-201610

main53119-37100iKDY221,231,241,271,281,TRY220,23#,281201505-201610

main53119-37100-C0iKDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN; KDY231..T2,T3;KDY231..T4..CBU;KDY281..125T..IV3;KDY221,271..T3..CBU;KDY221..(T2,T4)..TS;KDY221..T3..ATM..IV3;TRY220,230..T2,T3,T4;KDY231..T4..TB..ATM..IV3;KDY281..(T2,T3)..(CBU,IV6);KDY221,TRY231,281..TB..CBU200708-201505

BLACK,058 ,199 ,766 ,8P0; BLACK,058 ,766 ,8P0

53141ECOVER, RADIATOR, NO.1

main53141-25010iKDY220,230,240,270,280,290,RZY231,281,TRY220,230200408-200708

main53141-37070iKDY221,231,241,271,281,TRY220,23#,281200708-201610

53155DSEAL, RADIATOR GRILLE, NO.1

main53155-37010×2iLY230..TW1;LY220..125T..WT;LY230..TB..125T..ST;LY230,280,RZY220,230..EFI,LPG200107-200308

9015960425

main90159-60425

9016350011

main90163-50011

9018905046

main90189-05046

9046710161

main90467-10161

9356015010

main93560-15010

10 parts on this diagram · 3 diagrams in section
