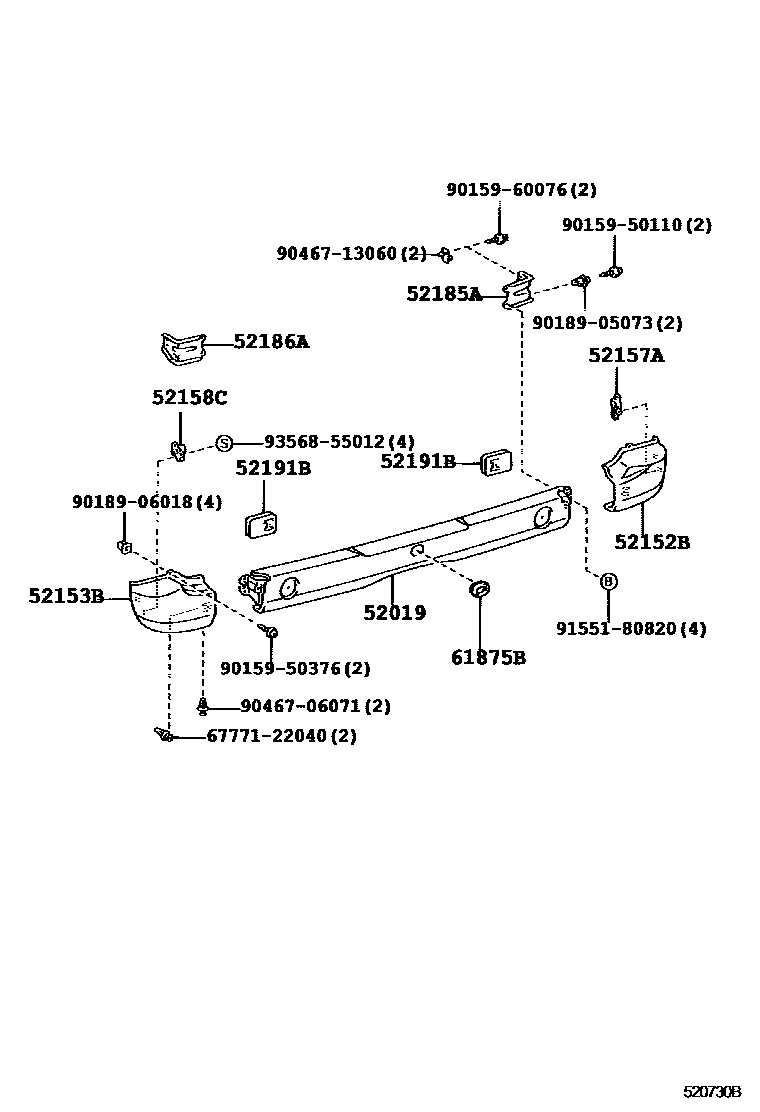

REAR BUMPER & BUMPER STAY

0001 1�������� ������� 0002 1������� ������� 0003 1

52019BAR SUB-ASSY, REAR BUMPER

main52019-25010-A0iKDY241..06S200107-201609

WHITE,058

main52019-25010-H0iKDY241..06S200107-201609

TURQUOISE,766

main52019-25010-J0iKDY241..06S200107-201609

BLUE,8P0

52152BEXTENSION, REAR BUMPER, RH

main52165-95J01iKDY24#,290,LY240,290200107-200903

main52165-95J02iKDY241..06S200107-201609

52153BEXTENSION, REAR BUMPER, LH

main52166-95J01iKDY24#,290,LY240,290200107-200903

main52166-95J02iKDY241..03S;KDY240,290,LY240,290200107

52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-95J00iKDY24#,290,LY240,290200107-200903

main52157-95J01iKDY241..06S200107-201609

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-95J00iKDY24#,290,LY240,290200107-200903

main52158-95J01iKDY241..06S200107-201609

52185ABRACKET, REAR BUMPER SIDE, RH

main52185-95J02iKDY241..06S200107-201609

52186ABRACKET, REAR BUMPER SIDE, LH

main52186-95J02iKDY241..06S200107-201609

52191BGROMMET, REAR BUMPER STAY

main52191-95J00×2iKDY241..06S200107-201609

61875BLID, SPARE WHEEL CARRIER, NO.1

main61875-36010iKDY241..06S200107-201609

6777122040WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-22040

9015950110

main90159-50110

9015950376

main90159-50376

9015960076

main90159-60076

9018905073

main90189-05073

9018906018

main90189-06018

9046706071

main90467-06071

9046713060

main90467-13060

9155180820

main91551-80820

9356855012

main93568-55012

19 parts on this diagram · 3 diagrams in section
