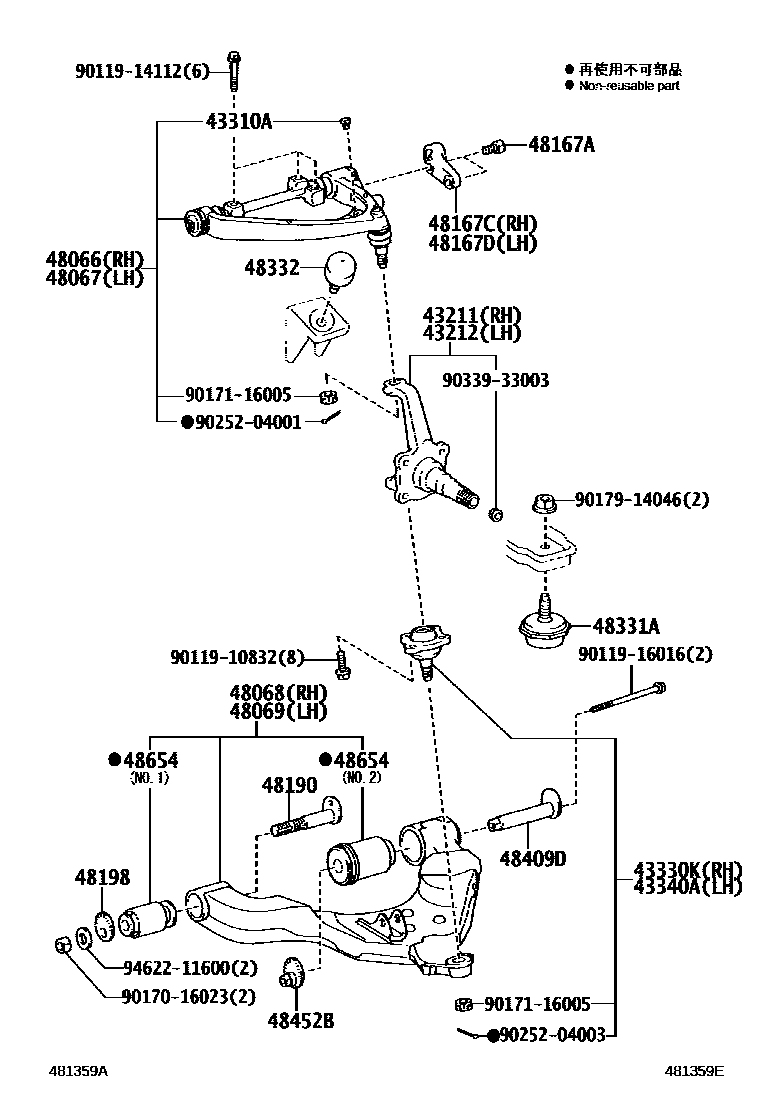

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
main43201-25090iKDY221..T3..TS;KDY221..T2,T4,TW1;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3);KDY220,230,24#,LY220,230,240,RZY220,23#,TRY220,231200107
43212KNUCKLE, STEERING, LH
main43202-25080iKDY221..T3..TS;KDY221..T2,T4,TW1;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3);KDY220,230,24#,LY220,230,240,RZY220,23#,TRY220,231200107
43310APLUG (FOR BALL JOINT)
main90345-06014×2iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111
43330KJOINT ASSY, LOWER BALL, FRONT RH
main43330-29105iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107
43340AJOINT ASSY, LOWER BALL, FRONT LH
main43330-29105iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107
48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH
main48066-29165iKDY221..T3..TS;KDY221..T2,T4,TW1;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3);KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281200107-202111
main48066-29175iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610
48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH
main48067-29165iKDY221..T3..TS;KDY221..T2,T4,TW1;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3);KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281200107-202111
main48067-29175iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48167ABOLT(FOR TORQUE ARM SETTING)
main90105-12200×4iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111
48167CARM, FRONT SUSPENSION TORQUE, RH
main48106-25020iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111
48167DARM, FRONT SUSPENSION TORQUE, LH
main48106-25020iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111
48190CAM ASSY, CAMBER ADJUST
main48190-25010×2iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111
48198CAM, CAMBER ADJUST, NO.2
main48198-25010×2iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111
48331ABUMPER, FRONT SPRING, NO.1
main48331-25050×2iKDY23#..TW2;TRY230..WT..IV6;TRY230..TS..125T..WT;KDY22#,23#..(T2,T3)..15T;KDY24#,27#,28#,290,LY240,270,280,290,RZY281,TRY281200107
48332BUMPER, FRONT SPRING, NO.2
main48332-25010×2iKDY221..T2..ST;KDY221..T4..TS;KDY231,TRY230..T4;KDY221,TRY220,231..(T3,T4)..TB;KDY231,TRY220,230..(T2,T3,TW1,TW4)..125T200107-202111
48409DCAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST
main48409-25020×2iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111
48452BPLATE, FRONT SUSPENSION TOE ADJUST, NO.2
main48452-25010×2iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111
48654BUSH, LOWER ARM
main48061-25010×2iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111
main48061-25020×2iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111
9011910832
main90119-10832
9011914112
main90119-14112
9011916016
main90119-16016
9017016023
main90170-16023
9017116005
main90171-16005
9017914046
main90179-14046
9025204001
main90252-04001
9025204003
main90252-04003
9033933003
main90339-33003
9462211600
main94622-11600
29 parts on this diagram · 2 diagrams in section
