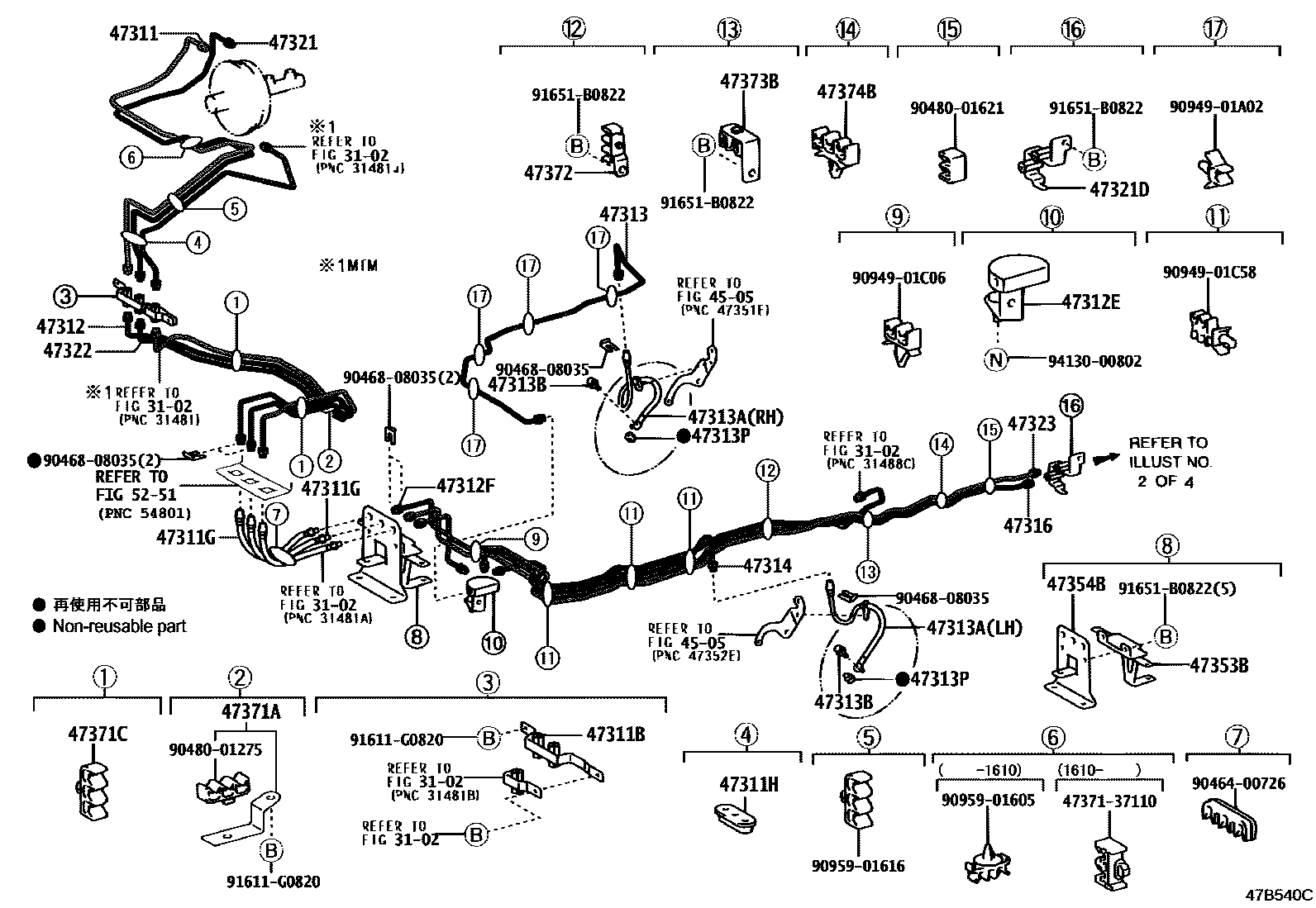

BRAKE TUBE & CLAMP

0001 1��(ABS) 0004 1��(ABS) 0005 1 0006 1 0008 1��(ABS) 0009 1

3102CLUTCH PEDAL & FLEXIBLE HOSE

→ Go to FIG 31-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

47311TUBE, FRONT BRAKE, NO.1

main47311-25410iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

main47311-37602iKDY221,231,241,271,281,TRY220,23#,281201610-201808

main47311-37750iKDY221,231,241,271,281,TRY220,23#,281..MTM201809-202111

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main47391-37010iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

main47391-37460iKDY221,231,241,271,281,TRY220,23#,281..MTM201610-202111

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main90947-02C65×2iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

main90947-02H91×2iKDY221,231,241,271,281,TRY220,23#,281201610-202111

47311HGROMMET(FOR BRAKE TUBE)

main47256-37020iKDY221,231,241,271,281,TRY220,23#,281..MTM201610

main47256-37030iKDY221,231,281,TRY220,23#,281..ATM201610

main90480-01054iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM200107-201610

main90480-01311iKDY22#,23#,28#,LY220,230,280,RZY220,23#,281,TRY220,23#,281..ATM200107-201610

47312TUBE, FRONT BRAKE, NO.2

main47312-37060iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

main47312-37A80iKDY221,231,241,271,281,TRY220,23#,281..MTM201610-202111

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10299iKDY221..T3..TS;KDY221..T2,T4,TW1;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3);KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281200107-202111

main90414-10052iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

47312FTUBE, FRONT BRAKE, FRAME, NO.2

main47312-25220iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

47313TUBE, FRONT BRAKE, NO.3

main47313-25220iKDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200708

main47313-25221iKDY221,231,241,271,281,TRY220,23#,281200708-201610

main47313-25230iKDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200708

main47313-25231iKDY221..T3..TS;KDY221..T2,T4,TW1;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY241,271,281,TRY220,231,281;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3)200708-202111

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02C70iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

main90947-02C71iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

47314TUBE, FRONT BRAKE, NO.4

main47314-25250iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

main47314-25260iKDY221..T3..TS;KDY221..T2,T4,TW1;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3);KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,231,281200107-202111

47316TUBE, FRONT BRAKE, NO.6

main47316-25320iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

47321TUBE, REAR BRAKE, NO.1

main47321-25270iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

main47321-37572iKDY221,231,241,271,281,TRY220,23#,281201610-201808

main47321-37740iKDY221,231,241,271,281,TRY220,23#,281..MTM201809-202111

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10229iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

47322TUBE, REAR BRAKE, NO.2

main47322-37200iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

main47322-37A91iKDY221,231,241,271,281,TRY220,23#,281..MTM201610-202111

47323TUBE, REAR BRAKE, NO.3

main47323-25210iLY230..TW1;LY220..125T..WT;LY230..TB..125T..ST;LY230,280,RZY220,230..EFI,LPG200107-200308

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-25110iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47354-25030iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

47371ACLAMP, BRAKE TUBE, NO.1

main47371-37030iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

main47371-37150iKDY221,231,241,271,281,TRY220,23#,281..MTM201610-202111

47371CCLAMP, BRAKE TUBE, NO.7

main47371-37160×2iKDY221,231,241,271,281,TRY220,23#,281..MTM201610-202111

main90480-01275×2iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

47372CLAMP, BRAKE TUBE, NO.2

main47371-25010iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

47373BCLAMP, BRAKE TUBE, NO.3

main47371-25030iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01C84iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

5251CAB MOUNTING & BODY MOUNTING

→ Go to FIG 52-51

4737137110BRACKET, CONNECTOR

main47371-37110

9046400726

main90464-00726

9046808035

main90468-08035

9048001275

main90480-01275

9048001621

main90480-01621

9094901A02

main90949-01A02

9094901C06

main90949-01C06

9094901C58

main90949-01C58

9095901605

main90959-01605

9095901616

main90959-01616

91611G0820

main91611-G0820

91651B0822

main91651-B0822

9413000802

main94130-00802

40 parts on this diagram · 6 diagrams in section
