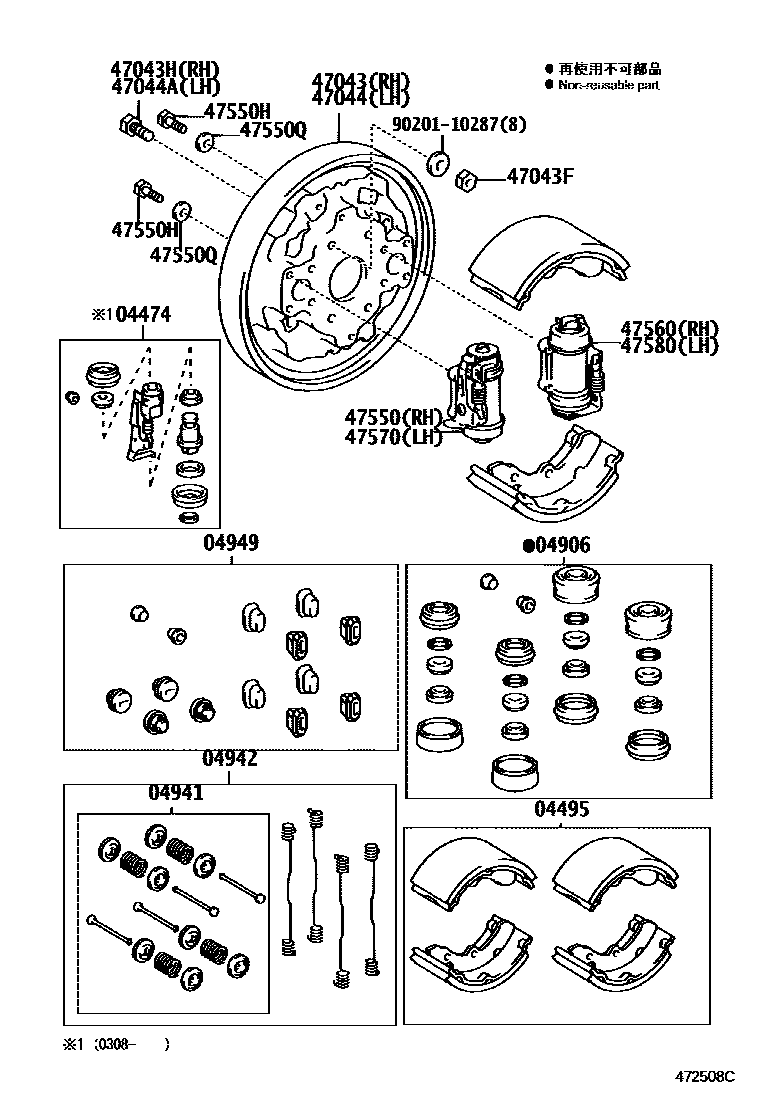

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1��(ABS) 0003 1 0004 1 0005 1 0006 1 0007 1������������������:148C OR 14

04474CYLINDER KIT, REAR WHEEL

main04468-25030iTRY220..T2..WT;KDY231,281,TRY230..TW1,TW2;KDY221,231,281,TRY230..(T2,T3)..15T201209

main04468-37060iKDY231..WT..IV6201812-201909

main04474-26050iTRY220..T2..WT;KDY23#,28#,TRY230..TW1,TW2;KDY22#,23#,28#,LY220,230,280,TRY230..(T2,T3,TW1,TW2)..(12T,15T)200308-201209

main04474-26051iTRY220..T2..WT;KDY231,281,TRY230..TW1,TW2;KDY221,231,281,TRY230..(T2,T3)..15T201209

main04474-26060iTRY220..T2..WT;KDY23#,28#,TRY230..TW1,TW2;KDY22#,23#,28#,LY220,230,280,TRY230..(T2,T3,TW1,TW2)..(12T,15T)200308-201209

main04474-35070×2iKDY22#,23#,270,28#,LY220,230,270,280,TRY220,230..T2..(125T,12T)..ST200308

main04474-35090×2iKDY28#,TRY230..(T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,230,270,280,TRY220..(T3,TW1,TW3)..(125T,1T)200308

main04474-37270iKDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY231,281,TRY220,23#,281..T4,TW4,VAN200308-202111

04495SHOE KIT, REAR BRAKE

main04494-36280iKDY231..WT..IV6201812-201909

main04495-25080iKDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST200107

main04495-25090iKDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT200107

main04495-25100iKDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST200107

main04495-25120iKDY28#,LY230,RZY230,TRY230..(T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,280,RZY220,TRY220..(T3,TW1,TW3)..(125T,1T)200107

main04495-25130iKDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN200107-201610

04906CUP KIT, REAR WHEEL CYLINDER

main04906-25030iKDY231..WT..IV6201812-201909

main04906-26070iLY220,RZY220,TRY220..T2..WT;KDY23#,28#,LY230,RZY230,TRY230..(TW1,TW2)..125T;KDY22#,23#,28#,LY230,280,RZY230,TRY230..(T2,T3,TW1,TW2)..(12T,15T)200107-201209

main04906-26071iTRY220..T2..WT;KDY231,281,TRY230..TW1,TW2;KDY221,231,281,TRY230..(T2,T3)..15T201209

main04906-35120iKDY28#,LY230,RZY230,TRY230..(T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,280,RZY220,TRY220..(T3,TW1,TW3)..(125T,1T)200107

main04906-35140iKDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST200107

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-25010iKDY280..TB;LY280..T3..15T;RZY230..T4,TW4;TRY230..15T..ST;LY230..(T2,TW1)..ST;KDY230..T2..15T..ST;KDY231..ATM..15T..ST;KDY231..T2..ATM..125T;LY230..(T3,T4,TW4)..TB;KDY231..MTM..(125T,15T)..ST;RZY230..(125T,15T)..ST..(CBU,IV3);KDY22#,230,TRY230..(T2,TW1,TW4)..125T;KDY280,LY220,RZY220,TRY220..(T2,TW1)..125T..ST;KDY220,230,241,281,LY220,RZY220..(T3,T4,VAN)..(06S,TB,TS)..15T;KDY240,270,281,290,LY240,270,280,290,RZY231,281..(T2,T4,TW1,TW4,VAN)..(125T,12T,15T)200107

main04941-25020iKDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT200107

main04941-25030iKDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN200107-202111

main04941-25040iKDY28#,LY230,RZY230,TRY230..(T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,280,RZY220,TRY220..(T3,TW1,TW3)..(125T,1T)200107

04942SPRING KIT, REAR BRAKE

main04942-25020iKDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT200107

main04942-25030iKDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN200107-201610

main04942-25040iKDY231..WT..IV6201812-201909

main04942-25050iKDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST200107

main04942-25060iKDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST200107

main04942-25070iKDY28#,LY230,RZY230,TRY230..(T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,280,RZY220,TRY220..(T3,TW1,TW3)..(125T,1T)200107

04949PLUG KIT, REAR BRAKE

main04949-13010iKDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST200107

main04949-25020iLY280..TB;LY280..12T;LY220,240,290,RZY220..WT;LY230,RZY230..12T,15T,175T;LY230,RZY230..(TW1,TW2,TW4)..125T200107-200111

main04949-25040iKDY221,231,241,TRY220,23#,281..(T4,TW4,VAN)..(03S,TB,TS)200111-202111

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-25110iKDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN200107-201610

main47043-25170iKDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT200107

main47043-25180iKDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST200107

main47043-26120iKDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST200107

main47043-35160iKDY28#,LY230,RZY230,TRY230..(T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,280,RZY220,TRY220..(T3,TW1,TW3)..(125T,1T)200107

main47043-37050iKDY231..WT..IV6201812-201909

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90170-10021×8iKDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT200107

main90179-10041×8iKDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST200107

main90179-12118×8iKDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST200107

main94130-01002×8iKDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN200107-201610

47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)

main90101-10028×4iKDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT200107

main90114-10002×4iKDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST200107

main90114-10063×6iKDY231..WT..IV6201812-201909

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-25080iKDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN200107-201610

main47044-25140iKDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT200107

main47044-25150iKDY28#,LY230,RZY230,TRY230..TW1;KDY23#,28#,LY230,280,RZY230,TRY230..(12T,15T)..ST200107

main47044-26120iKDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST200107

main47044-35150iKDY28#,LY230,RZY230,TRY230..(T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,280,RZY220,TRY220..(T3,TW1,TW3)..(125T,1T)200107

main47044-37050iKDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN200107-202111

47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)

main90101-10028×4iKDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..WT200107

main90114-10002×4iKDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST200107

main90114-10063×6iKDY231..WT..IV6201812-201909

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-25161iLY220,RZY220..T2..WT;LY230,RZY230..(TW1,TW2)..125T;LY230,280,RZY230..(T2,T3,TW1,TW2)..(12T,15T)200107-200209

main47550-25162iLY220,RZY220,TRY220..T2..WT;KDY23#,28#,LY230,RZY230,TRY230..(TW1,TW2)..125T;KDY22#,23#,28#,LY230,280,RZY230,TRY230..(T2,T3,TW1,TW2)..(12T,15T)200209

main47550-26110iKDY28#,LY230,RZY230,TRY230..(T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,280,RZY220,TRY220..(T3,TW1,TW3)..(125T,1T)200107

main47550-35180iKDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST200107

main47550-37090iLY220,230,240,280,290,RZY220,230..T4,TW4,VAN200107-200209

main47550-37091iKDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN200209-202111

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90101-08081×16iKDY231..WT..IV6201812-201909

main90119-06084×4iKDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST200107

47550QWASHER(FOR REAR WHEEL CYLINDER)

main90201-08002×16iKDY231..WT..IV6201812-201909

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-25141iLY220,RZY220..T2..WT;LY230,RZY230..(TW1,TW2)..125T;LY230,280,RZY230..(T2,T3,TW1,TW2)..(12T,15T)200107-200209

main47560-25142iLY220,RZY220,TRY220..T2..WT;KDY23#,28#,LY230,RZY230,TRY230..(TW1,TW2)..125T;KDY22#,23#,28#,LY230,280,RZY230,TRY230..(T2,T3,TW1,TW2)..(12T,15T)200209

main47560-37061iLY220,230,240,280,290,RZY220,230..T4,TW4,VAN200107-200209

main47560-37062iKDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN200209-202111

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-26110iKDY28#,LY230,RZY230,TRY230..(T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,280,RZY220,TRY220..(T3,TW1,TW3)..(125T,1T)200107

main47550-35180iKDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..(125T,12T)..ST200107

main47570-25111iLY220,RZY220..T2..WT;LY230,RZY230..(TW1,TW2)..125T;LY230,280,RZY230..(T2,T3,TW1,TW2)..(12T,15T)200107-200209

main47570-25112iLY220,RZY220,TRY220..T2..WT;KDY23#,28#,LY230,RZY230,TRY230..(TW1,TW2)..125T;KDY22#,23#,28#,LY230,280,RZY230,TRY230..(T2,T3,TW1,TW2)..(12T,15T)200209

main47570-37050iLY220,230,240,280,290,RZY220,230..T4,TW4,VAN200107-200209

main47570-37051iKDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN200209-202111

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-25141iLY220,RZY220..T2..WT;LY230,RZY230..(TW1,TW2)..125T;LY230,280,RZY230..(T2,T3,TW1,TW2)..(12T,15T)200107-200209

main47580-25142iLY220,RZY220,TRY220..T2..WT;KDY23#,28#,LY230,RZY230,TRY230..(TW1,TW2)..125T;KDY22#,23#,28#,LY230,280,RZY230,TRY230..(T2,T3,TW1,TW2)..(12T,15T)200209

main47580-37051iLY220,230,240,280,290,RZY220,230..T4,TW4,VAN200107-200209

main47580-37052iKDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY220,23#,281,TRY220,23#,281..T4,TW4,VAN200209-202111

9020110287

main90201-10287

18 parts on this diagram · 7 diagrams in section
