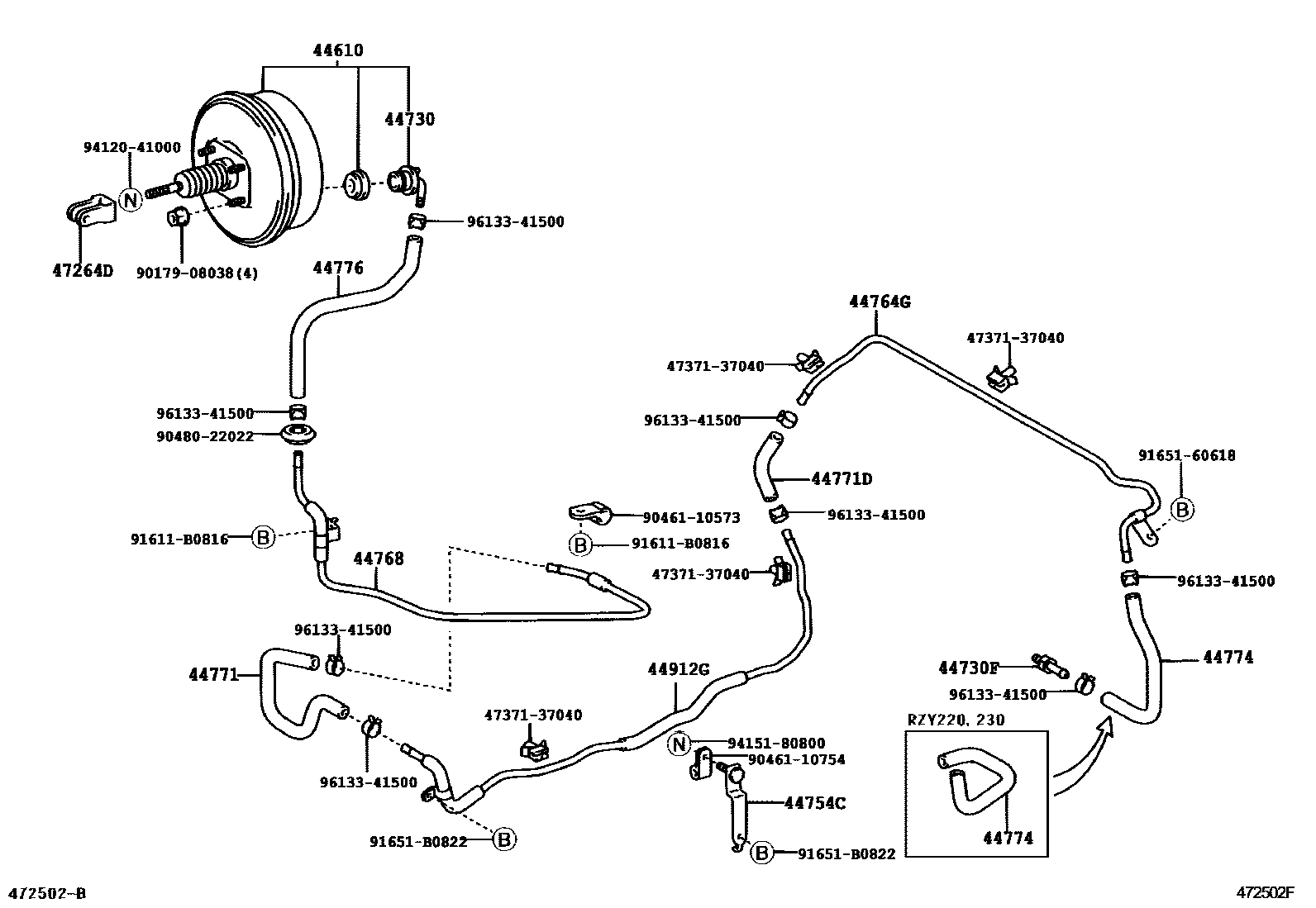

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

44610BOOSTER ASSY, BRAKE

main44610-25310iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290..DCR,DSL200107-201610

main44610-25320iLY230,280,RZY220,23#,281,TRY220,23#,281..EFI,LPG200107-201610

main44610-25340iTRY220,23#,281201610

main44610-25350iKDY221,231,241,271,281201610-202111

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iLY230,280,RZY220,23#,281,TRY220,23#,281..EFI,LPG200107-201007

main44730-20170iTRY220,23#,281201008

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iLY230,280,RZY220,230..EFI,LPG200107-200308

44754CBRACKET, VACUUM TUBE, NO.1

main44754-25010iLY220,230,240,270,280,290..DSL200107-200408

main44754-25020iRZY231,281,TRY220,23#,281200308

44764GTUBE, CONNECTOR TO BRAKE BOOSTER

main44764-25110iRZY231,281,TRY220,23#,281200308-200812

main44764-25111iTRY220,23#,281200812

44768TUBE, BOOSTER VACUUM

main44768-25080iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

44771HOSE, VACUUM TUBE CONNECTOR

main44771-25110iLY230,280,RZY220,230..EFI,LPG200107-200308

44771DHOSE, VACUUM TUBE CONNECTOR

main44771-25120iRZY231,281,TRY220,23#,281200308

44774HOSE, UNION TO CONNECTOR TUBE

main44774-25080iLY220,230,240,270,280,290..DSL200107-200408

main44774-25090iKDY220,230,240,270,280,290200408-200501

main44774-25091iKDY22#,23#,24#,27#,28#,290200501

main44774-25100iRZY220,230200107-200308

main44774-25110iLY230,280,RZY231,281..LPG200107-200501

main44774-25111iRZY231,281200501-200708

main44774-25120iTRY220,230200308-200501

main44774-25121iTRY220,230200501-200812

main44774-25122iTRY220,230200812

main44774-25130iTRY231,281200712-200812

main44774-25131iTRY231,281200812

44776HOSE, BRAKE BOOSTER

main44776-25040iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

main44776-37370iKDY221,231,241,271,281,TRY220,23#,281201610-202111

44912GTUBE, 3 WAY TO MAGNETIC VALVE

main44912-25070iLY220,230,240,270,280,290..DSL200107-200308

main44912-25120iLY220,230,240,270,280,290200308-200408

main44912-25130iRZY231,281,TRY220,230200308-200708

main44912-25131iTRY220,23#,281200708

main44912-25140iKDY22#,23#,24#,27#,28#,290200408

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-25020iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

main47264-42010iKDY221,231,241,271,281201610-202111

4737137040BRACKET, CONNECTOR

main47371-37040

9017908038

main90179-08038

9046110573

main90461-10573

9046110754

main90461-10754

9048022022

main90480-22022

91611B0816

main91611-B0816

9165160618

main91651-60618

91651B0822

main91651-B0822

9412041000

main94120-41000

9415180800

main94151-80800

9613341500

main96133-41500

23 parts on this diagram · 7 diagrams in section
