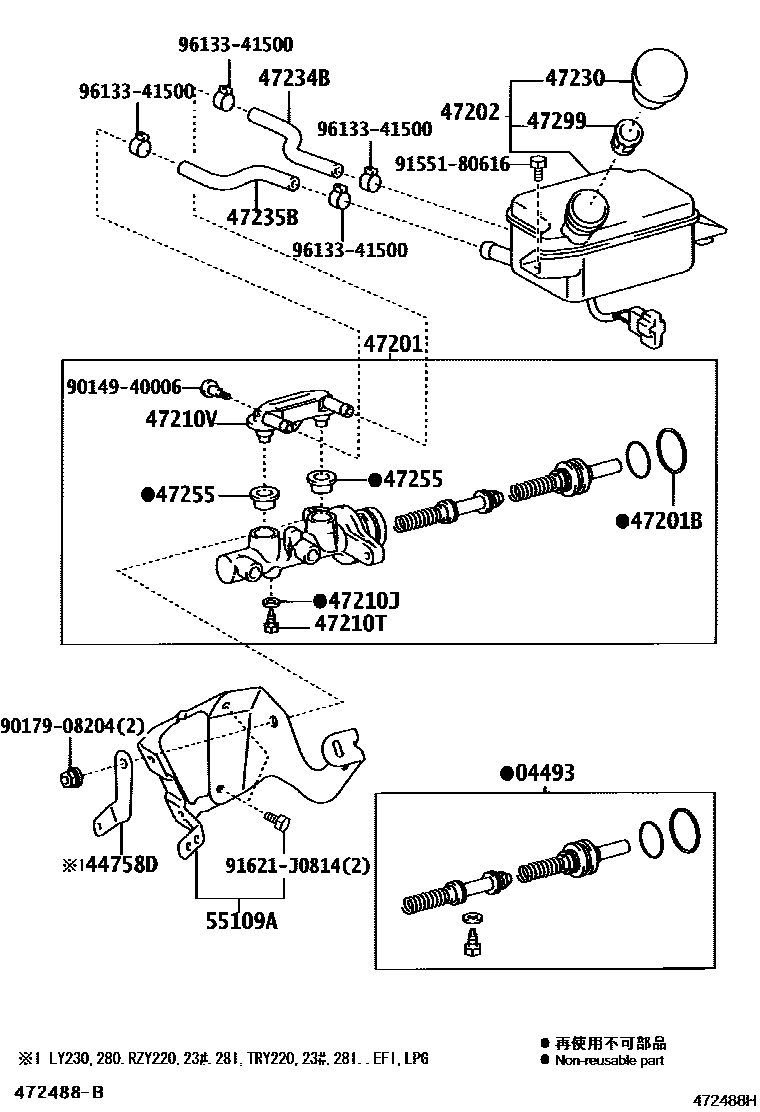

BRAKE MASTER CYLINDER

0001 1 0002 1��(ABS) 0003 1

04493CYLINDER KIT, BRAKE MASTER

main04493-25100iLY230..TW1;LY220..125T..WT;LY230..TB..125T..ST;LY230,280,RZY220,230..EFI,LPG200107-201610

main04493-25110iKDY281;TRY220..125T,15T;KDY231,271,TRY230..T2,T3,T4,TW1,TW2,TW4;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS)200107-201610

44758DBRACKET, VACUUM CHECK VALVE

main44758-25010iTRY220,230..1T200107-201610

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-25260iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

main47201-25270iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

main47201-25300iKDY221,231,241,271,281201610-202111

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iKDY221,231,241,271,281201610-202111

main90029-20059iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-37051iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM200107-201610

main47220-37060iKDY22#,23#,28#,LY220,230,280,RZY220,23#,281,TRY220,23#,281..ATM200107-201610

main47220-37120iKDY221,231,241,271,281,TRY220,23#,281..MTM201610-202111

main47220-37160iKDY221,231,281,TRY220,23#,281..ATM201610

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iKDY231,TRY220,230..1T;KDY221,241..(T3,TW1,VAN)..(06S,TS)200112-201610

main90430-06104iLY220,230,240,270,280,290,RZY220,230200107-200112

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iLY230..TW1;LY220..125T..WT;LY230..TB..125T..ST;LY230,280,RZY220,230..EFI,LPG200107-201610

47210VUNION(FOR BRAKE MASTER CYLINDER)

main90015-AM007iKDY221,231,241,271,281201610-202111

main90029-40409iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-37020iKDY221..T3..TB..MTM;KDY221..(T2,T4)..MTM;KDY231,TRY220,230..MTM..(125T,15T);KDY241,271,281,TRY231,281..(03S,TB,TS)..MTM200107-202111

47234BTUBE, RESERVOIR, NO.1

main47234-25080iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

main47234-37180iKDY221,231,241,271,281,TRY220,23#,281201610-202111

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-25070iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

main47235-37170iKDY221,231,241,271,281,TRY220,23#,281201610-202111

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

main90029-48001iKDY221,231,241,271,281201610-202111

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010iKDY221..T3..TB..MTM;KDY221..(T2,T4)..MTM;KDY231,TRY220,230..MTM..(125T,15T);KDY241,271,281,TRY231,281..(03S,TB,TS)..MTM200107-202111

55109ASUPPORT SUB-ASSY, BRAKE MASTER CYLINDER

main55109-25010iLY230..TW1;LY220..125T..WT;LY230..TB..125T..ST;LY230,280,RZY220,230..EFI,LPG200107-201007

sub55109-25020

main55109-25020iKDY231,TRY220,230..1T;KDY221,241..(T3,TW1,VAN)..(06S,TS)201008-201610

9014940006

main90149-40006

9017908204

main90179-08204

9155180616

main91551-80616

91621J0814

main91621-J0814

9613341500

main96133-41500

19 parts on this diagram · 3 diagrams in section
