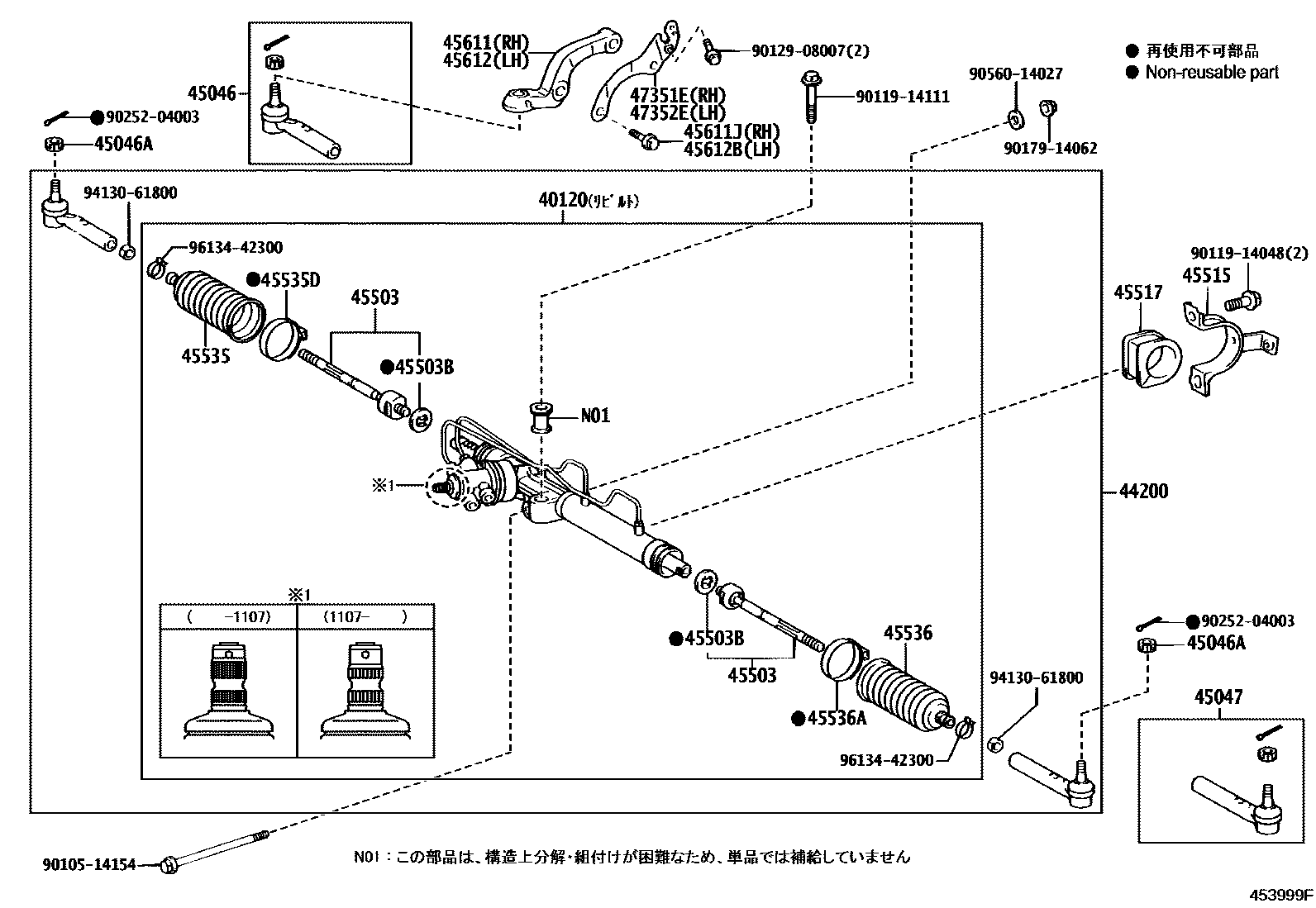

FRONT STEERING GEAR & LINK

0001 1 0002 1

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-25010iKDY22#,23#,24#,LY220,230,240,RZY220,23#,TRY220,23#..CBU,IV3200107-201107

main40120-25030iKDY23#,LY230,RZY230,TRY230..IV6;KDY27#,28#,290,LY270,280,290,RZY281,TRY281200107-201107

main40120-25040iTRY230..15T,1T;KDY231..WT..IV6;TRY230..125T..(CBU,IV3);KDY221,231,241,TRY220,231..CBU,IV3201107

main40120-25060iKDY271,281,TRY281;KDY231,TRY230..ST..IV6201107-202111

44200LINK ASSY, POWER STEERING

main44200-25010iKDY22#,23#,24#,LY220,230,240,RZY220,23#,TRY220,23#..CBU,IV3200107-201107

main44200-25030iKDY23#,LY230,RZY230,TRY230..IV6;KDY27#,28#,290,LY270,280,290,RZY281,TRY281200107-201107

main44200-25040iTRY230..15T,1T;KDY231..WT..IV6;TRY230..125T..(CBU,IV3);KDY221,231,241,TRY220,231..CBU,IV3201107

main44200-25060iKDY271,281,TRY281;KDY231,TRY230..ST..IV6201107-202111

45046END SUB-ASSY, TIE ROD, RH

main45046-29405iLY220,230,240..CBU,IV3200308

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-16005×2iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

45047END SUB-ASSY, TIE ROD, LH

main45046-29405iLY220,230,240..CBU,IV3200308

45503END SUB-ASSY, STEERING RACK

main45503-29425×2iKDY271,281,TRY281;KDY231,TRY230..ST..IV6200107-202111

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-18002×2iKDY271,281,TRY281;KDY231,TRY230..ST..IV6200107-202111

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-26051iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-25010iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

45535BOOT, STEERING RACK, NO.1

main45535-37010iKDY271,281,TRY281;KDY231,TRY230..ST..IV6200107-202111

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-62006iKDY271,281,TRY281;KDY231,TRY230..ST..IV6200107-202111

45536BOOT, STEERING RACK, NO.2

main45535-37010iKDY271,281,TRY281;KDY231,TRY230..ST..IV6200107-202111

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-62006iKDY271,281,TRY281;KDY231,TRY230..ST..IV6200107-202111

45611ARM, STEERING KNUCKLE, RH

main45611-25120iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

45611JBOLT(FOR STEERING KNUCKLE ARM RH)

main90105-14043×2iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

45612ARM, STEERING KNUCKLE, LH

main45612-25090iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

45612BBOLT(FOR STEERING KNUCKLE ARM LH)

main90105-14043×2iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

47351EBRACKET, FRONT BRAKE FLEXIBLE HOSE, RH

main47351-25140iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

47352EBRACKET, FRONT BRAKE FLEXIBLE HOSE, LH

main47352-25120iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

9010514154

main90105-14154

9011914048

main90119-14048

9011914111

main90119-14111

9012908007

main90129-08007

9017914062

main90179-14062

9025204003

main90252-04003

9056014027

main90560-14027

9413061800

main94130-61800

9613442300

main96134-42300

28 parts on this diagram · 2 diagrams in section
