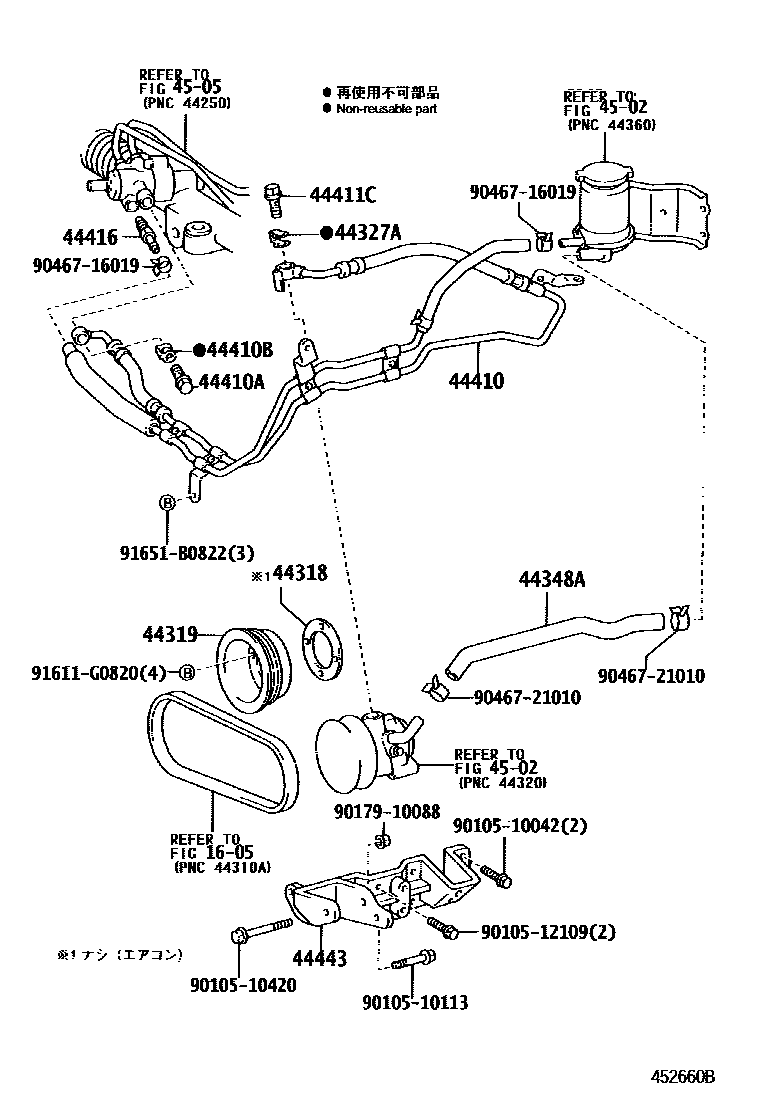

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

1605V-BELT

→ Go to FIG 16-05

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-26010iLY220,230,240,270,280,290..DSL200107-200408

main44318-26020iLY230,280,RZY220,23#,281..EFI,LPG200107-200708

44319PULLEY, VANE PUMP DRIVE

main44319-26020iRZY220,230200107-200308

main44319-26040iLY220,230,240,270,280,290..DSL200107-200408

main44319-26060iLY240..03S;LY220..15T..IV3;LY230..TS..WT..IV3;LY220,270..MTM..125T..ST..IV3;LY230,280..(T3,T4)..MTM..DSL..IV3200107-200408

main44319-34010iLY230,280,RZY231,281..LPG200107-200708

44327AGASKET, PRESSURE PORT, NO.1

main44327-26020iLY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200312

main44327-30040iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200312

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-25060iRZY220,230200107-200308

main44348-25070iLY220,230,240,270,280,290..DSL200107-200408

main44348-25080iKDY27#,28#,290200408

main44348-25100iKDY22#,23#,24#200408

44410TUBE ASSY, PRESSURE FEED

main44410-25130iRZY220,230200107-200308

main44410-25140iLY230,280,RZY231,281..LPG200107-200708

main44410-25150iLY220,230,240,270,280,290..DSL200107-200408

main44410-25161iKDY27#,28#,290200408

main44410-25200iTRY220,23#,281200308

main44410-25210iKDY22#,23#,24#200408

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16040iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

44410BGASKET(FOR PRESSURE FEED TUBE)

main44327-30030iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16034iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-26080iKDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200511

main44416-60370iKDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281200512

44443BRACKET, PUMP

main44443-25030iLY220,230,240,270,280,290..DSL200107-200408

main44443-25040iLY240..03S;LY220..15T..IV3;LY230..TS..WT..IV3;LY220,270..MTM..125T..ST..IV3;LY230,280..(T3,T4)..MTM..DSL..IV3200107-200408

main44443-26031iRZY220,230200107-200308

main44443-34010iLY230,280,RZY231,281..LPG200107-200708

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9010510042

main90105-10042

9010510113

main90105-10113

9010510420

main90105-10420

9010512109

main90105-12109

9017910088

main90179-10088

9046716019

main90467-16019

9046721010

main90467-21010

91611G0820

main91611-G0820

91651B0822

main91651-B0822

22 parts on this diagram · 5 diagrams in section
