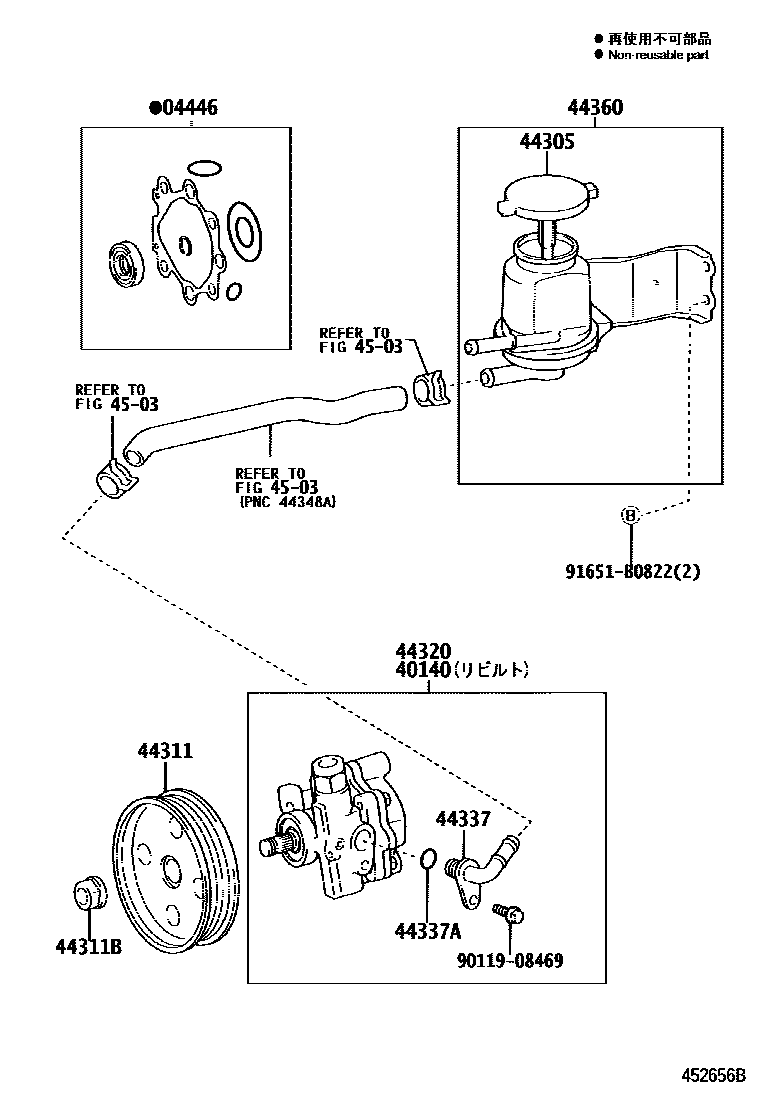

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04446GASKET KIT, POWER STEERING PUMP

main04446-20170iTRY220,23#,281200611

main04446-26050iKDY27#,28#,290200408

main04446-30120iLY230,280,RZY220,23#,281..EFI,LPG200107-200708

main04446-32050iTRY220,230200308-200611

main04446-34010iLY220,230,240,270,280,290..DSL200107-200308

main04446-35070iKDY22#,23#,24#200408

main04446-53030iLY220,230,240,270,280,290200308-200408

40140PUMP ASSY,VANE REBUILT

main40140-25080iLY230,280,RZY231,281..LPG200107-200708

main40140-25090iLY220,230,240,270,280,290..DSL200107-200408

main40140-26200iRZY220,230200107-200308

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22040iLY230,280,RZY231,281,TRY220,23#,281..EFI,LPG200107-200801

main44305-22060iTRY220,23#,281200802-201204

main44305-22061iTRY220,23#,281201205

main44305-28030iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230..DCR,DSL,EFI200107-200801

main44305-28060iKDY221,231,241,271,281200802-201207

main44305-28061iKDY221,231,241,271,281201208-202111

44311PULLEY, VANE PUMP

main44311-26010iRZY220,230200107-200308

main44311-26050iLY220,230,240,270,280,290..DSL200107-200408

main44311-26070iLY240..03S;LY220..15T..IV3;LY230..TS..WT..IV3;LY220,270..MTM..125T..ST..IV3;LY230,280..(T3,T4)..MTM..DSL..IV3200107-200408

main44311-34020iLY230,280..LPG200107-200207

main44311-35070iLY230,280,RZY231,281..LPG200207-200708

44311BNUT(FOR VANE PUMP PULLEY)

main90178-12003iLY220,230,240,270,280,290,RZY220,23#,281200107-200708

44320PUMP ASSY, VANE

main44310-25110iKDY27#,28#,290200408

main44310-25140iTRY220,23#,281200308

main44310-25150iKDY22#,23#,24#200408

main44320-25080iLY230,280,RZY231,281..LPG200107-200708

main44320-25090iLY220,230,240,270,280,290..DSL200107-200408

main44320-26200iRZY220,230200107-200308

44337UNION, POWER STEERING SUCTION PORT

main44337-25020iKDY27#,28#,290200408

main44337-25030iKDY22#,23#,24#200408

main44337-26030iRZY220,230200107-200308

main44337-35070iLY220,230,240,270,280,290..DSL200107-200408

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iKDY27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281200107

main90301-11020iKDY22#,23#,24#,TRY220,23#,281200308

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-25060iTRY220,23#,281200308

main44306-34020iLY230,280,RZY231,281..LPG200107-200708

main44360-25020iRZY220,230200107-200308

main44360-25030iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290..DCR,DSL200107-202111

4503POWER STEERING TUBE

→ Go to FIG 45-03

9011908469

main90119-08469

91651B0822

main91651-B0822

12 parts on this diagram · 6 diagrams in section
