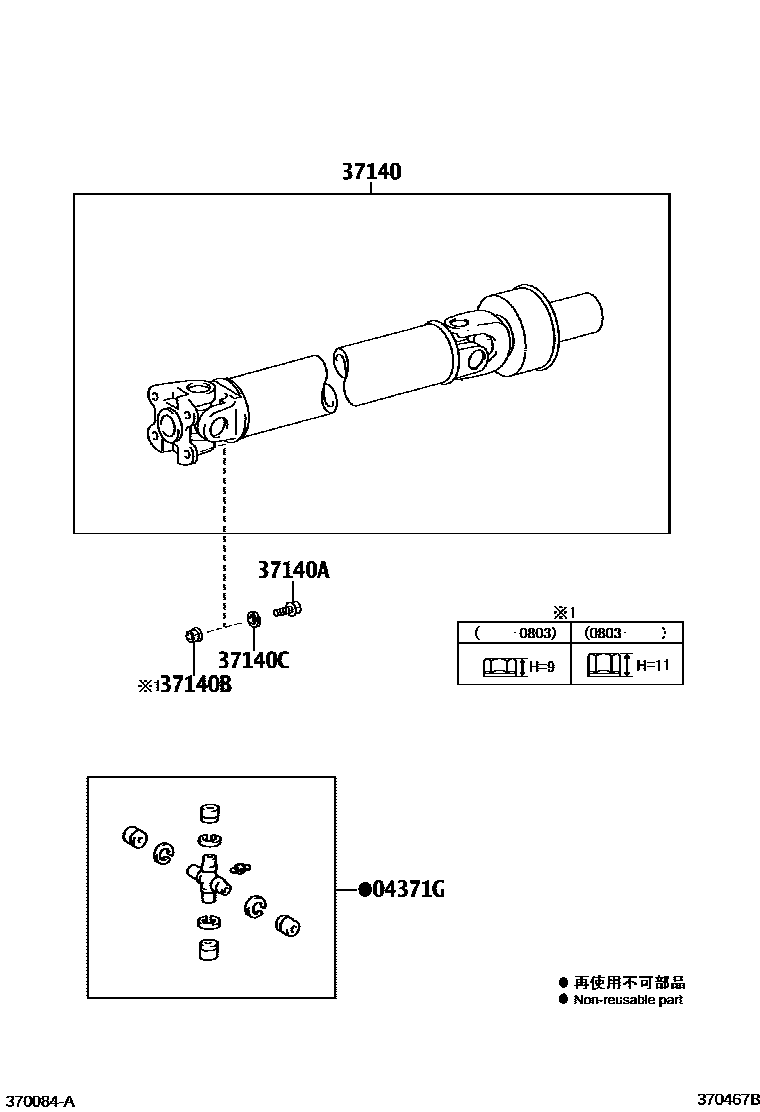

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1���� 0002 1�� 0003 1�� 0005 1�� 0006 1��

04371GSPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT

main04371-60051×2iLY280..ATM..DSL200107-200408

37140SHAFT ASSY, PROPELLER, FRONT

main37140-25030iLY280..MTM..LPG200107-200308

main37140-25040iLY280..TS..ATM200107-200408

main37140-25050iRZY281..ATM200107-200708

main37140-25060iKDY270,280,290..MTM200408-200708

main37140-25070iKDY280..TB..ATM200408-200708

main37140-25080iKDY280..TS..ATM200408-200708

37140ABOLT (F0R FRONT PROPELLER SHAFT)

main90105-10085×4iLY280..LPG200107-200308

main90105-10466×4iKDY271,281,TRY281200803

37140BNUT (F0R FRONT PROPELLER SHAFT)

main90178-10007×4iKDY271,281,TRY281200803

main90179-10059×4iKDY271,281,TRY281200107-200803

37140CWASHER (F0R FRONT PROPELLER SHAFT)

main90204-10002×4iLY280..LPG200107-200308

main90560-10102×4iKDY271,281,TRY281200803

5 parts on this diagram · 5 diagrams in section
