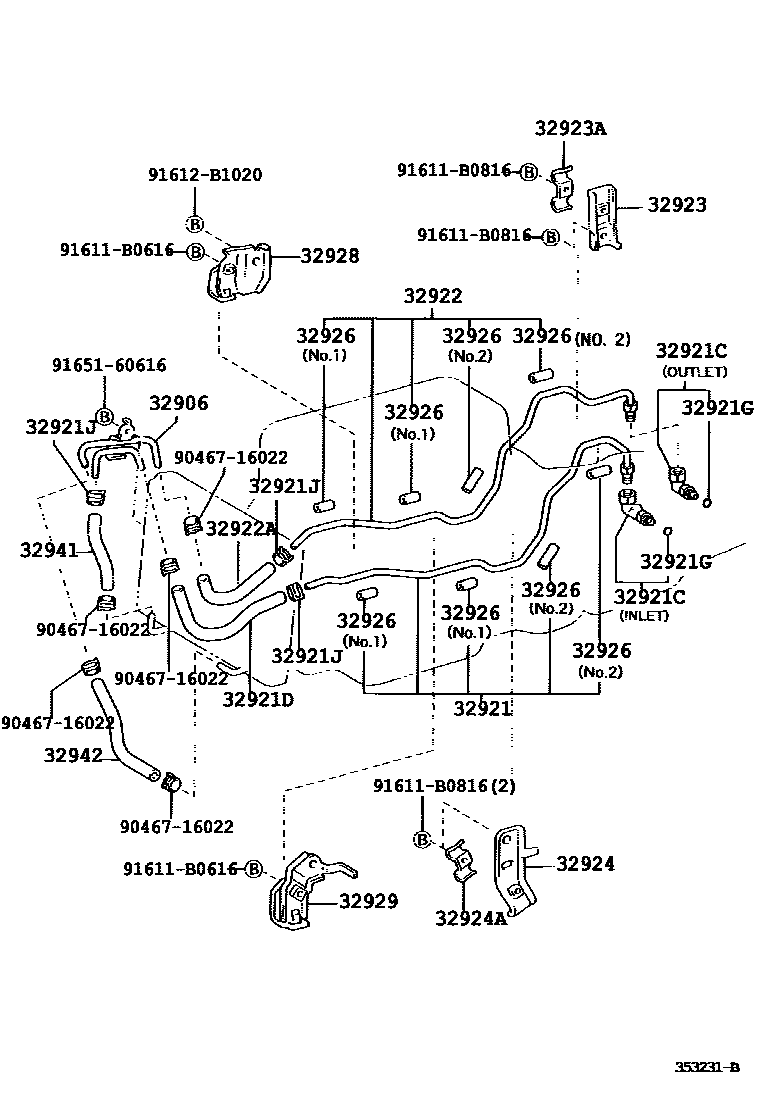

OIL COOLER & TUBE (ATM)

0001 1A443E,A443F 0003 1A443E,A443F 0004 1A45DE 0005 1A44DF,A44DE 0006 1A442E,A442F 0007 1A45DE 0008 1A442E,A442F 0011 1A340E,A340F

32906TUBE SUB-ASSY, OIL COOLER

main32907-25030iRZY230..ATM..IV3;LY230,280..ATM..DSL;LY220,RZY231,281,TRY220,230..ATM200107-200708

main32907-25040iKDY220,230,280..ATM200408-200708

main32907-25050iKDY221,231,281..ATM200709

main32907-25060iTRY220,23#,281..ATM200708

32921TUBE, OIL COOLER INLET, NO.1

main32921-25080iRZY220,230..ATM200107-200308

main32921-25090iLY280..TS..ATM200107-200408

main32921-25100iRZY231,281..ATM200308-200708

main32921-25110iLY230,280..TB..ATM..DSL200107-200408

main32921-25120iLY220,230..ATM..125T..ST200107-200408

main32921-25130iTRY220,230..ATM..125T200308-200312

main32921-25131iTRY220,230..ATM..125T200312-200407

main32921-25140iTRY230..ATM..15T200308-200312

main32921-25141iTRY230..ATM..15T200312-200407

main32921-25150iKDY220,230,280..TS..ATM..ST200408-200708

main32921-25160iKDY280..TB..ATM;KDY230..ATM..15T;KDY230..ATM..125T..WT200408-200708

main32921-25170iTRY220,230..ATM..125T200408

main32921-25180iTRY23#,281..ATM..15T200408

main32921-25190iKDY221,231,281..ATM..(125T,1T)..ST200709

main32921-25200iKDY231..ATM..15T;KDY231..ATM..125T..WT200709

32921CUNION(FOR OIL COOLER TUBE)

main32918-28010iRZY220,230,TRY220,230..ATM..125T200107

main90404-16021iLY220,230..ATM..125T..ST200107-200408

main90407-14024iKDY220,230,280..TS..ATM..ST200408-200708

main90407-16009iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main90407-16010iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107

main90407-16012iKDY221,231,281..ATM..(125T,1T)..ST200709

main90407-16028iLY280..TS..ATM200107-200408

main90407-20004iRZY231,281..ATM;LY230,280..TB..ATM..DSL200107-200708

main90407-20006iRZY281..ATM200308-200708

main90407-20007iLY230,280..TB..ATM..DSL200107-200408

main90407-20008iTRY23#..ATM..15T200308

32921DHOSE(FOR OIL COOLER INLET)

main90445-17077iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main90445-17088iRZY220,230,TRY220,230..ATM..125T200107

main90445-17103iKDY280..TB..ATM;KDY23#..ATM..15T;KDY23#..ATM..125T..WT200408

main90445-17115iTRY230..ATM..15T200308-200312

main90445-17117iLY220,230,280..ATM..DSL200107-200408

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107

main90301-11006×2iKDY231..ATM..125T..WT;KDY231,TRY230..ATM..15T;LY230,280..TB..ATM..DSL;KDY220,230,280,RZY231,281,TRY231,281..ATM200107

main90301-11030×2iKDY221,231,281..ATM..(125T,1T)..ST200709

32921JCLIP(FOR OIL COOLER HOSE)

main90466-16004×4iKDY221,231,281..ATM; TRY220,23#,281..ATM200904

main90467-16022×3iRZY230..ATM..IV3;LY230,280..ATM..DSL;LY220,RZY231,281..ATM; TRY220,230..ATM200107-200708

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-25080iRZY220,230..ATM200107-200308

main32922-25090iLY220,230,280..TS..ATM200107-200408

main32922-25100iRZY231,281..ATM200308-200708

main32922-25110iLY230,280..TB..ATM..DSL200107-200408

main32922-25120iTRY220,230..ATM..125T200308-200312

main32922-25121iTRY220,230..ATM..125T200312-200407

main32922-25130iTRY230..ATM..15T200308-200312

main32922-25131iTRY230..ATM..15T200312-200407

main32922-25140iKDY220,230,280..TS..ATM..ST200408-200708

main32922-25150iKDY280..TB..ATM;KDY230..ATM..15T;KDY230..ATM..125T..WT200408-200708

main32922-25160iTRY220,230..ATM..125T200408

main32922-25170iTRY23#,281..ATM..15T200408

main32922-25180iKDY221,231,281..ATM..(125T,1T)..ST200709

main32922-25190iKDY231..ATM..15T;KDY231..ATM..125T..WT200709

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-17077iKDY280..TB..ATM;KDY23#..ATM..15T;KDY23#..ATM..125T..WT200408

main90445-17088iLY220,230,280..ATM..DSL200107-200408

main90445-17103iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main90445-17124iRZY220,23#,281,TRY220,23#,281..ATM200107

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32909-25050iLY220,230,280..TS..ATM200107-200408

main32909-25080iTRY220,230..ATM..125T200308

main32909-35150iRZY220,230..ATM200107-200308

main32923-25010iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T200107

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90462-12076iRZY231,281..ATM200308-200708

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-25020iKDY230..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY230,RZY231,281,TRY23#,281..ATM..15T200107

main32924-25050iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main32924-25060iKDY280..TB..ATM;KDY23#..ATM..15T;KDY23#..ATM..125T..WT200408

main90462-12076iRZY231,281..ATM200308-200708

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-25010×4iTRY230..ATM..15T200408-200708

main32926-30020×2iTRY220,230..ATM..125T200408

main32926-30060×4iLY220,230,TRY220,230..ATM..125T..ST; LY280..TS..ATM200107-200408

main32926-60010×4iTRY230..WT..IV6;LY230,280..TB..ATM..DSL;RZY231,281,TRY231,281..ATM200107

main32926-60020×6iKDY221,231,281..ATM..(125T,1T)..ST200709

32928CLAMP, FLEXIBLE HOSE, NO.1

main32909-25040iLY220,230,280..ATM..DSL200107-200408

main32909-25070iRZY220,23#,281,TRY220,23#,281..ATM200107

32929CLAMP, FLEXIBLE HOSE, NO.2

main32909-25060iRZY220,23#,281..ATM200107-200708

main32909-25090iTRY220,230..ATM200308-200407

main32909-25100iTRY220,23#,281..ATM200408

main32929-24060iKDY220,230,280..TS..ATM..ST200408-200708

main32929-25020iLY220,230,280..ATM..DSL200107-200408

main32929-25040iKDY221,231,281..ATM200709

32941HOSE, OIL COOLER INLET, NO.1

main90445-17151iRZY230..ATM..IV3;LY230,280..ATM..DSL;LY220,RZY231,281,TRY220,23#,281..ATM200107

32942HOSE, OIL COOLER OUTLET, NO.1

main90445-17155iRZY230..ATM..IV3;LY230,280..TB..ATM..DSL;RZY231,281,TRY220,23#,281..ATM200107

9046716022

main90467-16022

91611B0616

main91611-B0616

91611B0816

main91611-B0816

91612B1020

main91612-B1020

9165160616

main91651-60616

22 parts on this diagram · 8 diagrams in section
