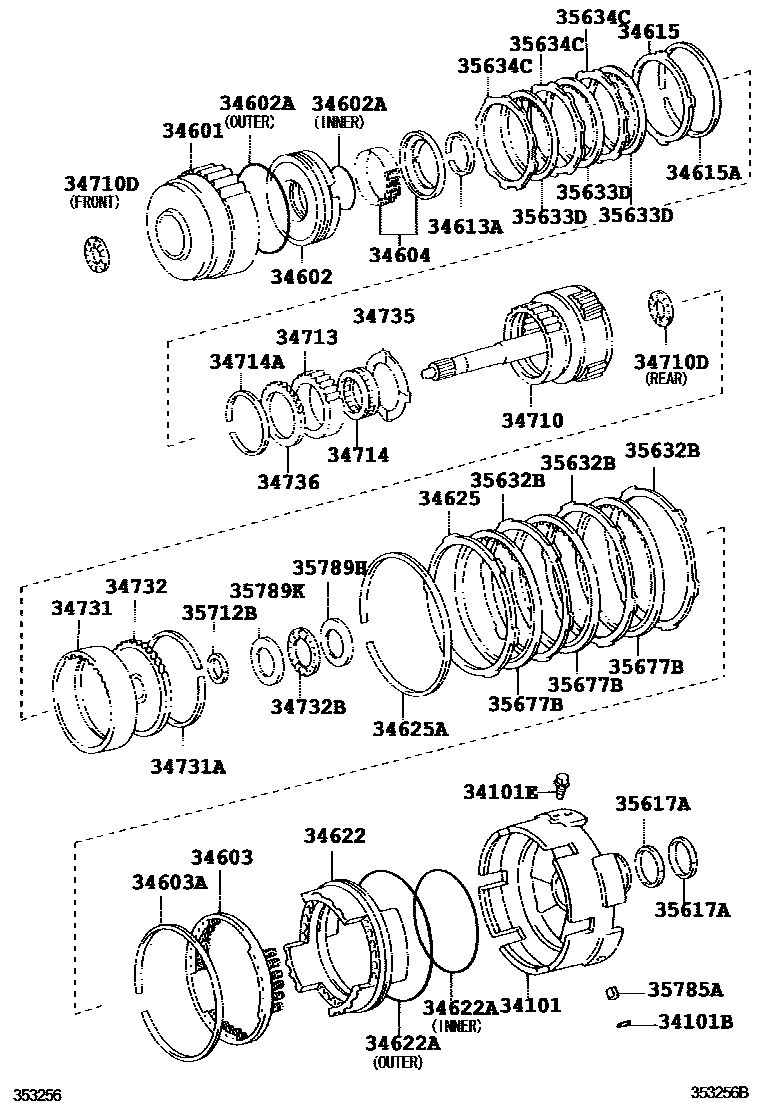

OVERDRIVE GEAR (ATM)

0001 1A442E,A442F,A443E,A443F 0005 1A44DE,A44DF,A45DE 0006 1A45DE 0007 1A340E,A340F

34101CASE SUB-ASSY, OVERDRIVE

main34101-22020iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107

main34101-60040iTRY230..ATM..15T200107-202107

34101BRING, O (FOR OVERDRIVE CASE)

main90301-09008iTRY230..ATM..15T200107-202107

34101EBOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING)

main90105-12307iTRY230..ATM..15T200107-202107

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-26020iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main34601-28010iRZY220,230,TRY220,230..ATM..125T200107

main34601-30022iLY220,230,280..TS..ATM200107-200408

main34601-60030iTRY230..ATM..15T200107-202107

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-22010iRZY220,230,TRY220,230..ATM..125T200107

main34602-30011iLY220,230,280..TS..ATM200107-200408

main34602-30020iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main34602-60020iTRY230..ATM..15T200107-202107

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-56007iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107-202107

main90301-64007iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107-202107

main90301-65006iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main90301-99027iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107-202107

main90301-99058iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107-202107

main90301-99086iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-22010iTRY220,230..ATM..125T200308

main34603-30030iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main34603-60010iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107-202107

34603ARING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING)

main90520-99039iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main90521-99109iTRY230..ATM..15T200107-202107

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-22010iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107

main34604-30010iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main34604-60020iTRY230..ATM..15T200107-202107

34613ARING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SPRING)

main90520-50001iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107-202107

main90520-58001iKDY22#,23#,280..ATM..(125T,1T)..ST200408

34615FLANGE, OVERDRIVE CLUTCH

main34615-22010iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main34615-22020iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main34615-22030iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main34615-50030iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main34615-50040iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main34615-50050iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main35634-30070iRZY220,230,TRY220,230..ATM..125T200107-202107

main35675-60070iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107-202107

main35675-60080iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107-202107

main35675-60090iTRY230..ATM..15T200107-202107

main35675-60100iTRY230..ATM..15T200107-202107

34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)

main90521-99001iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main90521-99115iTRY230..ATM..15T200107-202107

34622PISTON, OVERDRIVE BRAKE

main34622-22020iTRY220,230..ATM..125T200308

main34622-30040iLY220,230,280,RZY220,230..TS..ATM200107-200408

main34622-30090iKDY220,230,280..TS..ATM..ST200408-200708

main34622-30100iKDY221,231,281..ATM..(125T,1T)..ST200709

main34622-60010iTRY230..ATM..15T200107-202107

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99030iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107-202107

main90301-99031iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107-202107

main90301-99088iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main90301-99090iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main90301-99103iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107

main90301-99111iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-22020iTRY220,230..ATM..125T200107-200408

main34625-22030iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main34625-22040iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main34625-22050iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main34625-22060iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main34625-50020iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main34625-50030iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main34625-50040iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main34625-60020iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107-202107

34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)

main90521-99004iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107

main90521-99027iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main90521-99109iTRY230..ATM..15T200107-202107

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-14011iLY220,230,280..TS..ATM200107-200408

main34710-22031iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main34710-25010iTRY230..ATM..15T200107-202107

main34710-28020iRZY220,230..ATM200107-200308

main34710-28030iTRY220,230..ATM..125T200308

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-23001iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107-202107

main90374-23012iLY220,230,280,TRY220,230..TS..ATM200107

main90374-23012iRZY220,230..ATM200107-200308

main90374-24001iLY220,230,280..TS..ATM200107-200408

main90374-24001iRZY220,230..ATM200107-200308

main90374-28012iTRY230..ATM..15T200107-202107

main90374-31005iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main90374-31008iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main90374-37003iTRY220,230..ATM..125T200308

main90374-37003iRZY220,230..ATM200107-200308

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-28010iRZY220,230,TRY220,230..ATM..125T200107

main34713-30020iLY220,230,280..TS..ATM200107-200408

main34713-32010iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main34713-36010iTRY230..ATM..15T200107-202107

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main35791-28010iRZY220,230,TRY220,230..ATM..125T200107

main35791-30030iLY220,230,280..TS..ATM200107-200408

main35791-30060iKDY220,230,280..TS..ATM..ST200408-200708

main35791-36010iTRY230..ATM..15T200107-202107

main35791-50010iKDY221,231,281..ATM..(125T,1T)..ST200709

34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)

main90521-90002iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107-202107

main90521-99028iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

34731GEAR, OVERDRIVE PLANETARY RING

main34731-30030iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main34731-60010iTRY230..ATM..15T200107-202107

34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)

main90521-99024iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main90521-99110iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107-202107

34732FLANGE, OVERDRIVE PLANETARY RING GEAR

main34732-22011iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main34732-60020iTRY230..ATM..15T200107-202107

34732BBEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANGE)

main90374-33002iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main90374-34007iTRY230..ATM..15T200107-202107

34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1

main34735-30020iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107

main34737-60020iTRY230..ATM..15T200107-202107

34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2

main34736-30010iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107

main34738-36010iTRY230..ATM..15T200107-202107

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-30020iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main35617-36020iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107-202107

main35617-43010iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107

35632BPLATE, BRAKE (FOR OVERDRIVE)

main35632-60010iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107-202107

main35632-60050iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107-202107

35633DDISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main35633-14010iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main35633-60050iTRY230..ATM..15T200107-202107

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main34616-30010iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main34634-30010iTRY220,230..ATM..125T200107-200408

main35634-30080iLY220,230,280,RZY220,230..TS..ATM200107-200408

main35634-60010iTRY230..ATM..15T200107-202107

35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)

main34633-60010iKDY221,231,281..ATM..(125T,1T)..ST200408-200708

main35633-60060iTRY230..ATM..15T200107-202107

35712BRING, OIL SEAL (FOR OVERDRIVE PLANETARY RING GEAR FLANGE)

main35712-36010iTRY230..ATM..15T200107-202107

35785ARETAINER, OVERDRIVE CASE RING

main35785-36010iTRY230..ATM..15T200107-202107

35789HRACE, THRUST BEARING (FOR OVERDRIVE CASE)

main35789-60030iTRY230..ATM..15T200107-202107

35789KRACE, THRUST BEARING (FOR OVERDRIVE PLANETARY GEAR)

main35789-60020iTRY230..ATM..15T200107-202107
