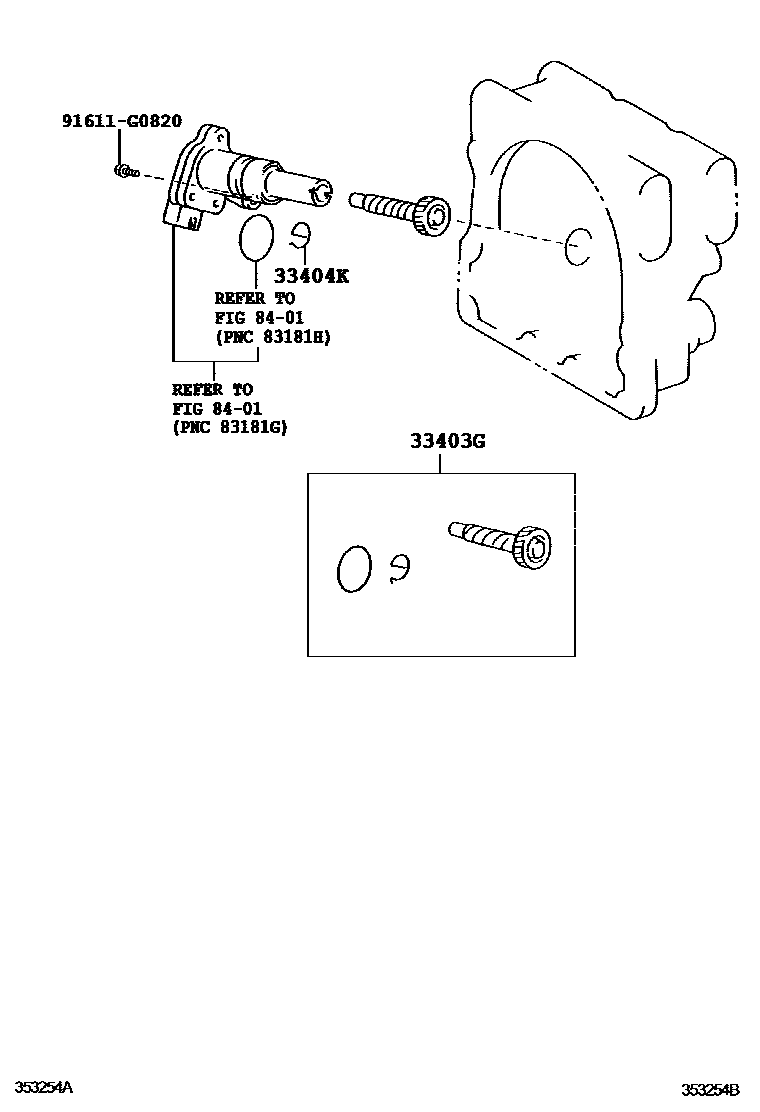

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A442E,A442F,A443E,A443F 0005 1A44DF,A340F 0006 1A44DE,A45DE,A340E

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29375iKDY280,LY280..ATM..1T200107-200708

main33403-29385iKDY280..IV6;KDY28#..T2..ATM;LY280..ATM..125T..ST200107-201008

main33403-29445iKDY281..T3..TS..ATM..CBU200709

main33403-29485iKDY281..(T3,TW3)..ATM;KDY280..T3..ATM..125T..(CBU,IV3)200408

main33482-29205iKDY221,231..T3..ATM..125T200709

main33482-29225iRZY230,TRY230..ST..IV6200207

main33482-29235iKDY220,230..T2..ATM..125T200408-200708

main33482-29295iKDY231..ATM..15T200709

main33482-39385iLY220,230..ATM..125T..ST;KDY220,230..T3..ATM..125T200107-200708

main33482-39395iRZY220,230,TRY220,230..ATM..125T..(CBU,IV3)200107

main33482-39415iKDY221,231..T2..ATM..125T200709

main33482-39425iKDY280..ATM..15T..WT200408-200708

main33482-39445iKDY280,LY280..ATM..15T..ST200107-200708

main33482-39455iKDY280..ATM..125T..WT;LY280,RZY281,TRY281..ATM..WT200107

main33482-39475iTRY230..T3..ATM..15T;KDY230..ATM..125T..WT;LY230,RZY231..TB..ATM200107

main33482-39485iTRY23#..ATM..WT200308

main33482-39495iTRY230..T2..ATM..15T..ST200308

main33482-39645iKDY230..ATM..15T;KDY231..ATM..125T..WT200408

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iLY230..TB..ATM..DSL;KDY23#..ATM..125T..WT;KDY23#,TRY230..ATM..15T;KDY28#,LY280,RZY231,281,TRY231,281..ATM200107

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

91611G0820

main91611-G0820

4 parts on this diagram · 3 diagrams in section
