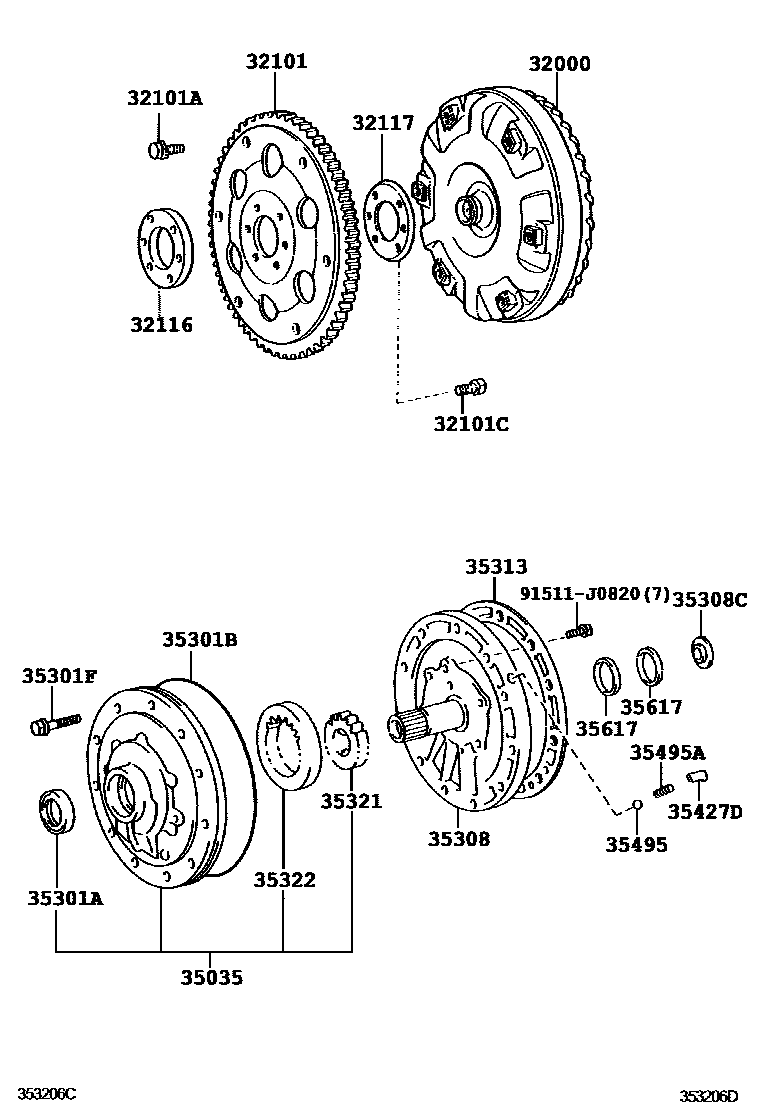

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1A442E,A442F,A443E,A443F 0002 1A44DE,A44DF,A45DE 0003 1A340E,A340F 0004 1A442E,A442F

32000CONVERTER ASSY, TORQUE

main32000-25010iTRY23#,281..ATM..15T;LY230,280..TB..ATM..DSL200107

main32000-25020iRZY231,281..ATM200308-200708

main32000-25030iKDY280..TB..ATM;KDY230..ATM..15T;KDY230..ATM..125T..WT200408-200708

main32000-25040iKDY231..ATM..15T;KDY231..ATM..125T..WT200709

main32000-26050iRZY220,230..ATM200107-200308

main32000-26060iLY220,230,280..TS..ATM200107-200408

main32000-26090iTRY220,230..ATM..125T200308

main32000-35240iKDY221,231,281..ATM..(125T,1T)..ST200709

main32000-71010iKDY220,230,280..TS..ATM..ST200408-200708

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-26010iRZY231,281,TRY220,230..ATM200308

main32101-35020iLY220,230,280..ATM..DSL200107-200408

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10413×5iKDY221,231,281..ATM200709

main90105-10546iKDY221,231,281..ATM200709

main90119-09026iTRY220,230..ATM202106

main90119-09027×5iTRY220,230..ATM202106

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10276×10iTRY231,281..ATM200308-202104

main90105-12014×8iLY220,230,280..ATM..DSL200107-200408

main90105-13010×8iKDY22#,23#,28#..ATM200408

32116SPACER, DRIVE PLATE, FRONT

main32116-26010iTRY231,281..ATM200308-202104

main32116-35010iLY220,230,280..ATM..DSL200107-200408

32117SPACER, DRIVE PLATE, REAR

main32117-26010iRZY231,281,TRY220,230..ATM200308

main32117-35010iLY220,230,280..ATM..DSL200107-200408

main32117-60050iKDY22#,23#,28#..ATM200408

35035BODY SUB-ASSY, FR OIL PUMP & GEAR

main35035-25011iTRY230..ATM..15T200107-202107

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-14010iLY220,230,280,RZY220,230..TS..ATM200107-200408

main35301-22021iTRY220,230..ATM..125T200308

main35301-50020iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iTRY230..ATM..15T200107-202107

main90311-38064iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107

main90311-38087iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107

main90301-99029iTRY230..ATM..15T200107-202107

main90301-99033iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091×7iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main90105-08137×7iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107

main90105-08212×10iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107

main90105-08213iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107

35308COVER SUB-ASSY, FRONT OIL PUMP

main35308-25011iTRY230..ATM..15T200107-202107

35308CRACE, THRUST BEARING (FOR FRONT OIL PUMP COVER)

main35789-36040iTRY230..ATM..15T200107-202107

main35789-36050iTRY230..ATM..15T200107-202107

main35789-36060iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107

35313GASKET, FRONT OIL PUMP COVER

main35313-60010iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107

35321GEAR, FRONT OIL PUMP DRIVE

main35321-22020iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107

main35321-22030iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107

main35321-22040iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107

main35321-22050iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107

main35321-22060iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107

main35321-25011iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107

main35321-25021iTRY230..ATM..15T200107-202107

main35321-25031iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107

main35321-25040iTRY230..ATM..15T200107-202107

main35321-25050iTRY230..ATM..15T200107-202107

main35321-30030iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main35321-30040iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main35321-30050iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main35321-30060iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main35321-30070iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-22020iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107

main35322-22030iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107

main35322-22040iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107

main35322-22050iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107

main35322-22060iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107

main35322-30020iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main35322-30030iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main35322-30040iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main35322-30050iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main35322-30060iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main35322-60011iTRY230..ATM..15T200107-202107

main35322-60021iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107

main35322-60031iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107

main35322-60090iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107

main35322-60100iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107

35427DSEAT, CHECK VALVE SPRING

main35427-60010iTRY230..ATM..15T200107-202107

35495BALL, CHECK

main35495-60010iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107

35495ASPRING, COMPRESSION (FOR CHECK BALL)

main90501-18106iTRY230..ATM..15T200107-202107

35617RING, CLUTCH DRUM OIL SEAL

main35617-30020×2iKDY22#,23#,28#..ATM..(125T,1T)..ST200408

main35617-32010×2iLY220,230,280,RZY220,230,TRY220,230..TS..ATM200107

main35617-60010×2iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY231,281..ATM..15T200107

91511J0820

main91511-J0820

21 parts on this diagram · 4 diagrams in section
