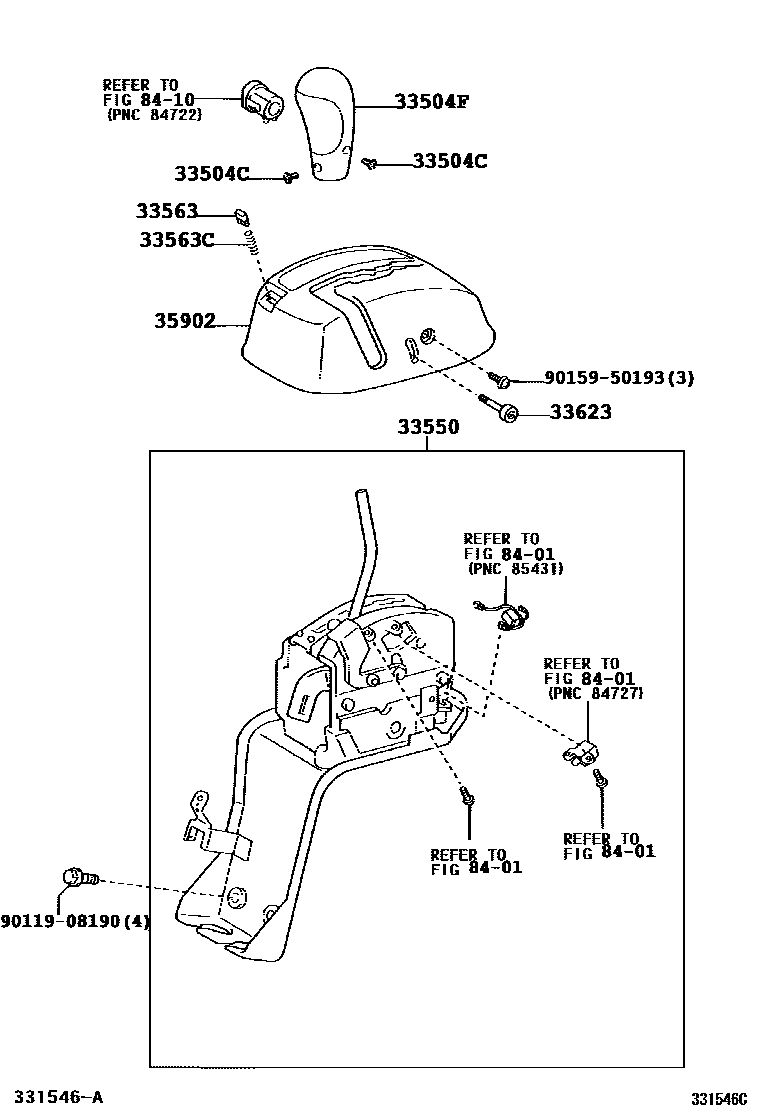

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90152-40003×2iKDY22#,23#,28#,LY220,230,280,RZY220,23#,281,TRY220,23#,281..ATM200107

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-35030-B3iTRY230..TB..125T;TRY220,230..(T2,T3,T4,TW1,TW3)..MTM201505-202111

DK.CHARCOAL,TRIM12

main33504-35030-C1iTRY230..TB..125T;TRY220,230..(T2,T3,T4,TW1,TW3)..MTM; TRY230..TS..125T..WT;KDY221,231,241,271,281,TRY231,281..MTM201505-202111

BLACK,TRIM1#; BLACK,TRIM13

main33542-37030iKDY22#,23#,28#,LY220,230,280,RZY220,23#,281,TRY220,23#,281..ATM200107-201505

main33542-37031iKDY221,231,281,TRY220,23#,281..ATM201505

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-25100iKDY22#,23#,28#,LY220,230,280,RZY220,230,TRY220,230..ATM..(125T,1T)..ST200107-201505

main33550-25101iKDY221,231,281,TRY220,230..ATM..(125T,1T)..ST201505

main33550-25110iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T200107-201505

main33550-25111iKDY231..ATM..125T..WT;KDY231,TRY23#,281..ATM..15T201505

33563BUTTON, SHIFT LOCK RELEASE

main33563-37020iKDY22#,23#,28#,LY220,230,280,RZY220,23#,281,TRY220,23#,281..ATM200107

33563CSPRING (FOR SHIFT LOCK RELEASE BUTTON JOINT)

main90501-04042×2iKDY22#,23#,28#,LY220,230,280,RZY220,23#,281,TRY220,23#,281..ATM200107

33623BUTTON, SHIFT LEVER KNOB

main33623-37010-B0iKDY22#,23#,28#,LY220,230,280,RZY220,23#,281,TRY220,23#,281..ATM200107-201505

DK.CHARCOAL,TRIM1#

main33623-37011-C0iKDY221,231,281,TRY220,23#,281..ATM201505

BLACK,TRIM1#

35902COVER SUB-ASSY, POSITION INDICATOR HOUSING

main35902-25030iKDY22#,23#,28#,LY220,230,280,RZY220,230,TRY220,230..ATM..(125T,1T)..ST200107-201505

main35902-25031iKDY221,231,281,TRY220,230..ATM..(125T,1T)..ST201505

main35902-37040iKDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T200107-201505

main35902-37041iKDY231..ATM..125T..WT;KDY231,TRY23#,281..ATM..15T201505

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9011908190

main90119-08190

9015950193

main90159-50193

11 parts on this diagram · 4 diagrams in section
