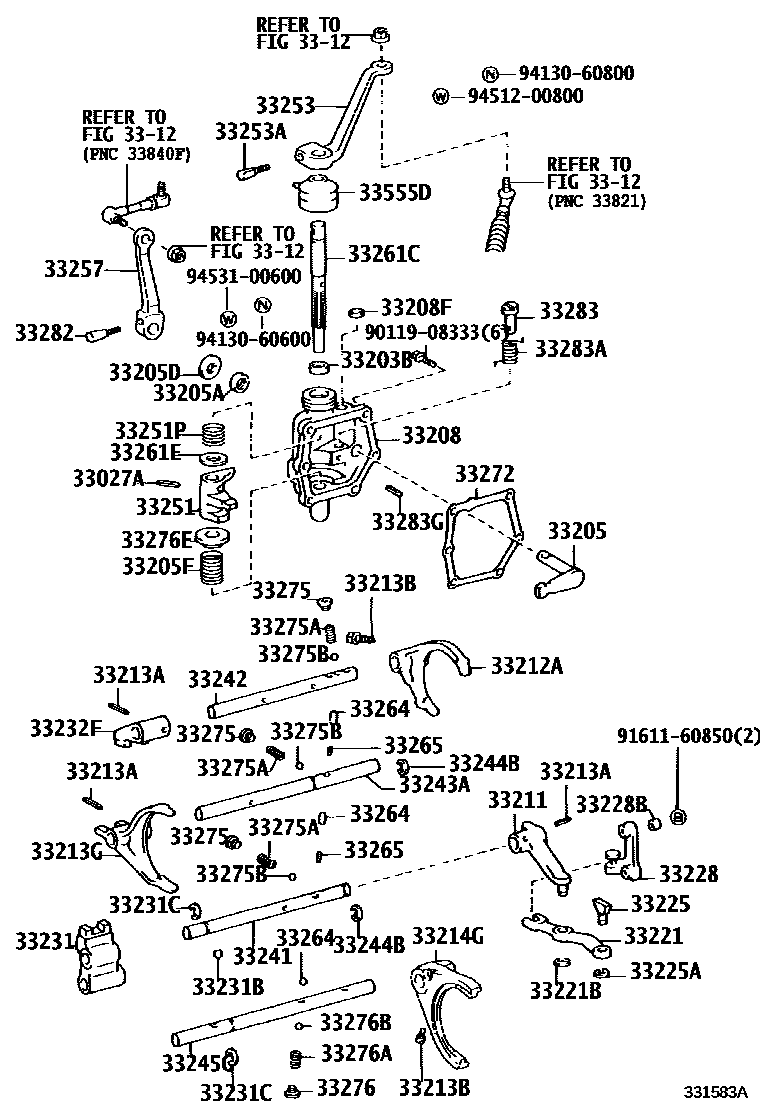

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1G54 0002 1R351,R351F,R352F,R451,R452,R40004 1R351,R351F,R352F,R451,R452,R4

33027APIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET)

main90254-05001×2iLY220,230..1T200107-200304

main90254-05016iLY280..MTM..DSL;KDY221..T3..TB..MTM;KDY220,230..(T3,TW3)..TS..MTM;KDY221,230,LY220,RZY220,TRY220..MTM..WT;KDY231,LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY24#,270,280,290,LY240,270,290,RZY231,281,TRY231,281..MTM;KDY220,231,LY230,RZY230,TRY230..(T2,T3,T4,TW1,TW2)..MTM..(12T,15T,175T,1T)200107

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-18002iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

main90311-20006iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107

33205SHAFT SUB-ASSY, SELECT LEVER

main33262-25040iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107

main33262-28020iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iTRY220..WT;TRY230..TW1,TW2;TRY230..MTM..15T200107-200709

main90313-13002iTRY220..WT;TRY230..TW1,TW2;TRY230..MTM..15T;KDY221,231,241,271,281,TRY231,281..MTM200709

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main90201-13029iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

main94612-11300iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107

33205FSPRING, COMPRESSION(FOR SELECT RETURN)

main90501-15038iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107

main90501-21038iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT

main33207-25010iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY220,230,240,270,280,290,LY240,270,290,RZY231,281..MTM200107-200709

main33207-25020iTRY220..WT;TRY230..TW1,TW2;TRY230..MTM..15T;KDY221,231,241,271,281,TRY231,281..MTM200709

main33271-28010iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33208FPLUG, TIGHT(FOR SHIFT LEVER SHAFT HOUSING)

main96411-41200iLY280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM200107

33211FORK, REVERSE SHIFT

main33211-28010iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

main33211-35050iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107-201310

main33211-35060iTRY220..WT;TRY230..TW1,TW2;TRY230..MTM..15T;KDY221,231,241,271,281,TRY231,281..MTM201310-202006

main33211-35061iTRY220..WT;TRY230..TW1,TW2;TRY230..MTM..15T;KDY221,231,241,271,281,TRY231,281..MTM202006

33212AFORK, GEAR SHIFT, NO.1

main33212-25011iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107

main33212-26030iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001×3iLY220,230..1T200107-200304

main90254-05016iLY280..MTM..DSL;KDY221..T3..TB..MTM;KDY220,230..(T3,TW3)..TS..MTM;KDY221,230,LY220,RZY220,TRY220..MTM..WT;KDY231,LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY24#,270,280,290,LY240,270,290,RZY231,281,TRY231,281..MTM;KDY220,231,LY230,RZY230,TRY230..(T2,T3,T4,TW1,TW2)..MTM..(12T,15T,175T,1T)200107

33213BBOLT(FOR SHIFT FORK SET)

main90105-06077×2iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107

main90105-06143×2iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33213GFORK, GEAR SHIFT, NO.2

main33213-25020iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107-201305

main33213-25021iTRY220..WT;TRY230..TW1,TW2;TRY230..MTM..15T;KDY221,231,241,271,281,TRY231,281..MTM201305

main33220-26010iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33214GFORK, GEAR SHIFT, NO.3

main33214-26020iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

main33230-26010iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107-201501

main33230-26011iTRY220..WT;TRY230..TW1,TW2;TRY230..MTM..15T;KDY221,231,241,271,281,TRY231,281..MTM201501

33221ARM, REVERSE SHIFT

main33221-28010iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

main33221-35050iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107-201310

main33221-35060iTRY220..WT;TRY230..TW1,TW2;TRY230..MTM..15T;KDY221,231,241,271,281,TRY231,281..MTM201310

33221BRING, E(FOR REVERSE SHIFT ARM)

main96160-01000iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33225SHOE, SHIFT ARM

main33225-35030iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33225ARING, SHAFT SNAP(FOR SHIFT ARM SHOE)

main96160-00800iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33228BRACKET, REVERSE SHIFT ARM

main33228-0K030iTRY220..WT;TRY230..TW1,TW2;TRY230..MTM..15T;KDY221,231,241,271,281,TRY231,281..MTM201305-201310

main33228-28010iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

main33228-35030iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107-201305

main33228-35050iTRY220..WT;TRY230..TW1,TW2;TRY230..MTM..15T;KDY221,231,241,271,281,TRY231,281..MTM201310

33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)

main90253-11001×2iLY220,230..1T200107-200304

33231HEAD, REVERSE SHIFT

main33231-28020iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33231BBALL, REVERSE SHIFT RESTRICT

main90360-10003×3iLY220,230..1T200107-200304

33231CRING(FOR REVERSE SHIFT HEAD)

main90520-12006×2iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33232FHEAD, GEAR SHIFT, NO.1

main33232-26010×2iLY270,280..MTM..DSL;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY220,240,290,RZY220,231,281,TRY220..MTM..WT;LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T200107-200408

main33232-26020×2iTRY220..WT;TRY230..TW1,TW2;TRY230..MTM..15T;KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY231,281..MTM200408-201310

main33232-28020iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33241SHAFT, REVERSE SHIFT FORK

main33244-25050iTRY220..WT;TRY230..TW1,TW2;TRY230..MTM..15T;KDY221,231,241,271,281,TRY231,281..MTM201310-202006

main33244-25051iTRY220..WT;TRY230..TW1,TW2;TRY230..MTM..15T;KDY221,231,241,271,281,TRY231,281..MTM202006

main33244-26020iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107-201105

main33244-26021iTRY220..WT;TRY230..TW1,TW2;TRY230..MTM..15T;KDY221,231,241,271,281,TRY231,281..MTM201105-201310

main33244-28011iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-25040iTRY220..WT;TRY230..TW1,TW2;TRY230..MTM..15T;KDY221,231,241,271,281,TRY231,281..MTM201310

main33242-26020iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

main33242-26030iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107-201310

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-25030iTRY220..WT;TRY230..TW1,TW2;TRY230..MTM..15T;KDY221,231,241,271,281,TRY231,281..MTM201310-202006

main33243-25031iTRY220..WT;TRY230..TW1,TW2;TRY230..MTM..15T;KDY221,231,241,271,281,TRY231,281..MTM202006

main33243-26050iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107-201310

main33243-35051iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)

main90520-12006×2iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33245GSHAFT, GEAR SHIFT FORK, NO.4

main33245-25050iTRY220..WT;TRY230..TW1,TW2;TRY230..MTM..15T;KDY221,231,241,271,281,TRY231,281..MTM201105-201310

main33245-26010iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

main33245-35090iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107-201105

33251LEVER, SHIFT & SELECT

main33251-26050iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107

main33251-28030iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33251PSPRING (FOR SHIFT & SELECT LEVER)

main90501-16178iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

main90501-21037iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107

33253LEVER, SHIFT OUTER, NO.1

main33253-25060iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

main33253-25070iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33281-16020iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33257LEVER, SELECT OUTER

main33257-25040iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

main33257-25050iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107

33261CSHAFT, SHIFT & SELECT LEVER

main33261-28030iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

main33261-35110iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;LY230,RZY230,TRY230..MTM..(12T,15T,175T)..(DSL,EFI);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107-201008

main33261-35111iTRY220..WT;TRY230..TW1,TW2;TRY230..MTM..15T;KDY221,231,241,271,281,TRY231,281..MTM201008

33261EWASHER (FOR SHIFT & SELECT LEVER SHAFT)

main90201-15023iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90250-05029iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107

main90250-06032iTRY220..WT;TRY230..TW1,TW2;TRY230..MTM..15T;KDY221,231,241,271,281,TRY231,281..MTM202006

main90360-10003×3iLY220,230..1T200107-200304

main90361-10002iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

main90361-10003iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33265PIN, SHIFT INTERLOCK, NO.2

main90250-05020×2iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33272GASKET, SHIFT LEVER SHAFT HOUSING

main33272-28010iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main90341-12008×4iKDY271,281,TRY281..MTM;KDY221,231..MTM..(125T,1T)..ST200202-201105

main90341-12014×4iLY270,280..MTM;LY220,240,290,RZY220..WT;LY230,RZY230..MTM..(12T,15T,175T);LY230,RZY230..(TW1,TW2,TW4)..MTM..125T200107-200202

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14132×3iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

main90501-16143×3iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107-201105

main90501-18136×3iTRY220..WT;TRY230..TW1,TW2;TRY230..MTM..15T;KDY221,231,241,271,281,TRY231,281..MTM201105-201310

33275BBALL, SHAFT DETENT

main90360-10003×9iLY220..T3..MTM200107-200408

33276SEAT, SHIFT DETENT BALL SPRING, NO.2

main90341-12008iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)

main90501-14123iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33276BBALL, SHIFT DETENT, NO.2

main90360-10003×3iLY220..T3..MTM200107-200408

33276ESEAT, SELECT SPRING, NO.1

main33276-25021iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107

main33276-28011iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33282PIN, LEVER LOCK, NO.2

main33282-35010iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

main33282-57010iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107

33283PIN, REVERSE RESTRICT, NO.1

main33283-26010iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107

main33283-27010iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33283ASPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)

main90504-10008iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

main90504-10009iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107

33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)

main90254-04015iLY280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM200107

33555DBOOT, SHIFT LEVER

main33555-25020iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;LY230,RZY230,TRY230..MTM..(12T,15T,175T)..(DSL,EFI);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107-201008

main33555-26070iTRY220..WT;TRY230..TW1,TW2;TRY230..MTM..15T;KDY221,231,241,271,281,TRY231,281..MTM201008

main33555-28010iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

9011908333

main90119-08333

9161160850

main91611-60850

9413060600

main94130-60600

9413060800

main94130-60800

9451200800

main94512-00800

9453100600

main94531-00600

58 parts on this diagram · 3 diagrams in section
