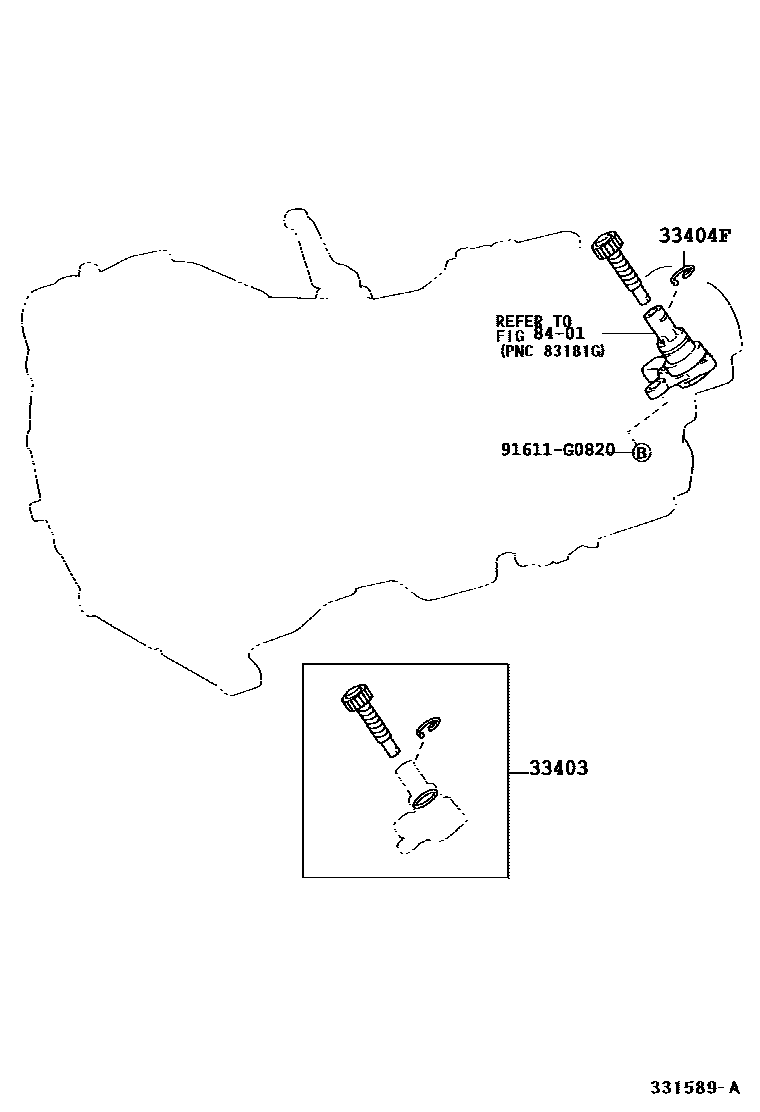

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1G54,R351,R351F,R352F,R451,R450002 1R351F,R352F

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29315iKDY230..T3..MTM;KDY221,231,241..MTM..WT;KDY231..T2..MTM..15T..ST200408

main33403-29325iLY220..T2..WT;KDY220,230..(T2,TW2)..MTM;LY230..(T2,TW2)..MTM..(12T,15T)200107-200708

main33403-29335iLY280..MTM..1T200107-200308

main33403-29445iKDY280..T3..MTM..125T200408-200708

main33403-29485iLY280..MTM..125T..ST;KDY280..(T2,TW3)..TS..MTM;KDY281..(T3,TW3)..MTM..(125T,1T)200107

main33403-29595iRZY230,TRY230..T2..MTM..15T..ST200107

main33403-39295iLY220,230..T2..MTM..125T..ST200107-200408

main33403-39325iRZY220,TRY220..T3..MTM200107

main33403-39335iRZY220,TRY220..(T2,TW1)..MTM..ST;RZY230,TRY230..(T2,TW3)..TS..MTM..ST200107

main33403-39345iKDY221..T3..MTM200709

main33403-39355iKDY221,231..T2..MTM..125T200709

main33403-39365iKDY221,231..1T200709-201609

main33403-39375iRZY230,TRY230..TW1;LY230..(T3,T4,TW1,TW4)..MTM..(125T,15T);KDY220,230,240,LY220,240,RZY231..(T4,TW4,VAN)..MTM200107

main33403-39395iLY230..1T;LY220..(T3,TW1)..MTM200107-200408

main33403-39415iKDY220..T3..MTM200408-200708

main33403-39425iKDY220,230..1T;KDY231..T3..MTM200408

main33403-39435iLY230..175T;RZY220,TRY220..WT;RZY230,TRY230..T2..MTM..WT;RZY230,TRY230..(T3,T4,TW2,TW4)..MTM200107

main33403-39485iTRY231..MTM200712

main33482-29186iLY270..1T200107-200308

main33482-29195iLY270..1T200308

main33482-39425iLY280..(T3,TW1)..MTM..(12T,15T)200107-200308

main33482-39435iKDY28#..TW1;KDY28#,LY280..(T3,TW1)..MTM..(12T,15T)200308

main33482-39455iLY280,RZY281,TRY281..MTM..LPG200107

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-35010iKDY271200107

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iRZY220..WT;RZY230..15T;RZY220,230..(T3,TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281..MTM200107

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

91611G0820

main91611-G0820

5 parts on this diagram · 2 diagrams in section
