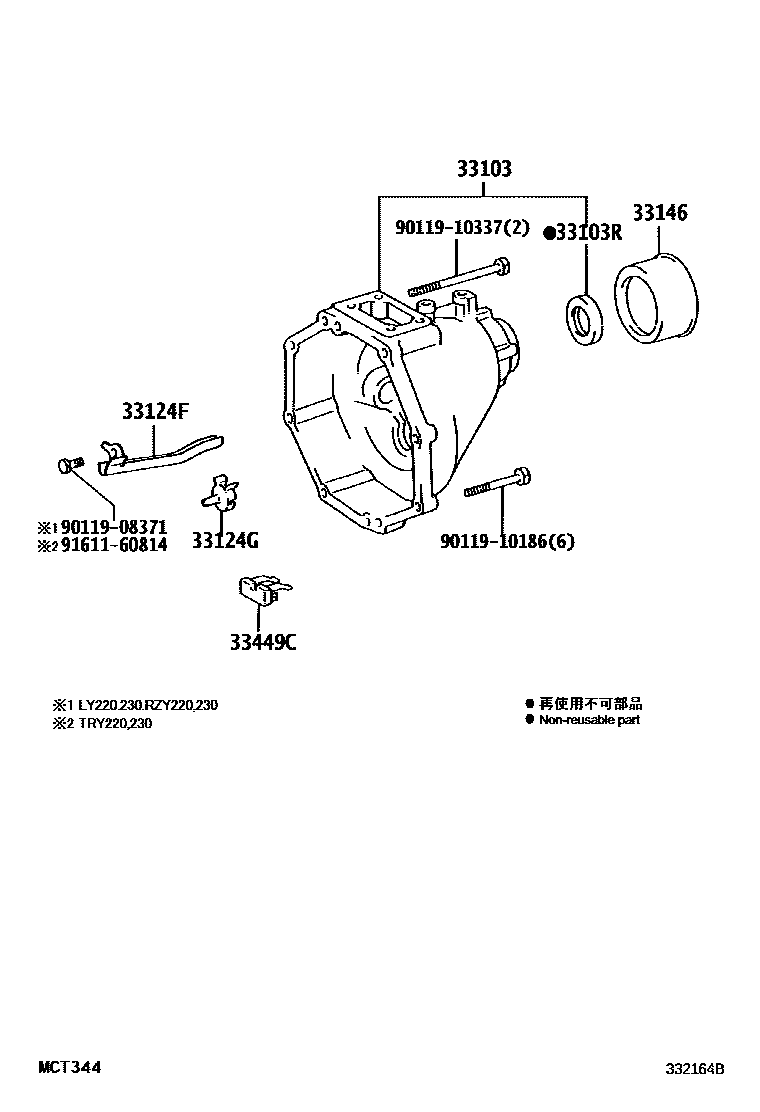

EXTENSION HOUSING (MTM)

0001 1G54 0002 1R451,R452,R453 0004 1R351F,R352F 0005 1R351

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-25050iKDY23#,LY230,RZY230,TRY230..MTM..(12T,15T,175T);KDY22#,24#,LY220,240,RZY220,231,TRY220,231..MTM..WT;KDY23#,LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T200107

main33103-26070iKDY22#,23#..MTM..(125T,1T)..ST200408

main33103-28031iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38032iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107-201102

main90311-38093iKDY23#,LY230,RZY230,TRY230..MTM..(12T,15T,175T);KDY22#,24#,LY220,240,RZY220,231,TRY220,231..MTM..WT;KDY23#,LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T200107

main90311-38094iTRY220..MTM..ST;TRY230..(T2,TW3)..TS..MTM..ST201102

main90311-40001iKDY220,230..(T3,TW1,TW3)..TS..MTM200408-200708

main90311-40032iKDY220,230..T2..MTM..125T;KDY221,231..MTM..(125T,1T)..ST200706-201101

main90311-40035iKDY221,231..MTM..(125T,1T)..ST201101-201707

main90311-40048iKDY221,231..MTM..125T..ST201707

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

main33124-28011iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

main33124-35100iLY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM200107

33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)

main33124-25010iKDY23#,LY230,RZY230,TRY230..MTM..(12T,15T,175T);KDY22#,24#,LY220,240,RZY220,231,TRY220,231..MTM..WT;KDY23#,LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T200107

main33124-35090iKDY22#,23#..MTM..(125T,1T)..ST200408

main33124-36010iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iKDY22#,23#..MTM..(125T,1T)..ST200408

main33146-30020iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

33449CMAGNET, TRANSMISSION (MTM)

main33449-26010iLY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T)200107

9011908371

main90119-08371

9011910186

main90119-10186

9011910337

main90119-10337

9161160814

main91611-60814

10 parts on this diagram · 4 diagrams in section
