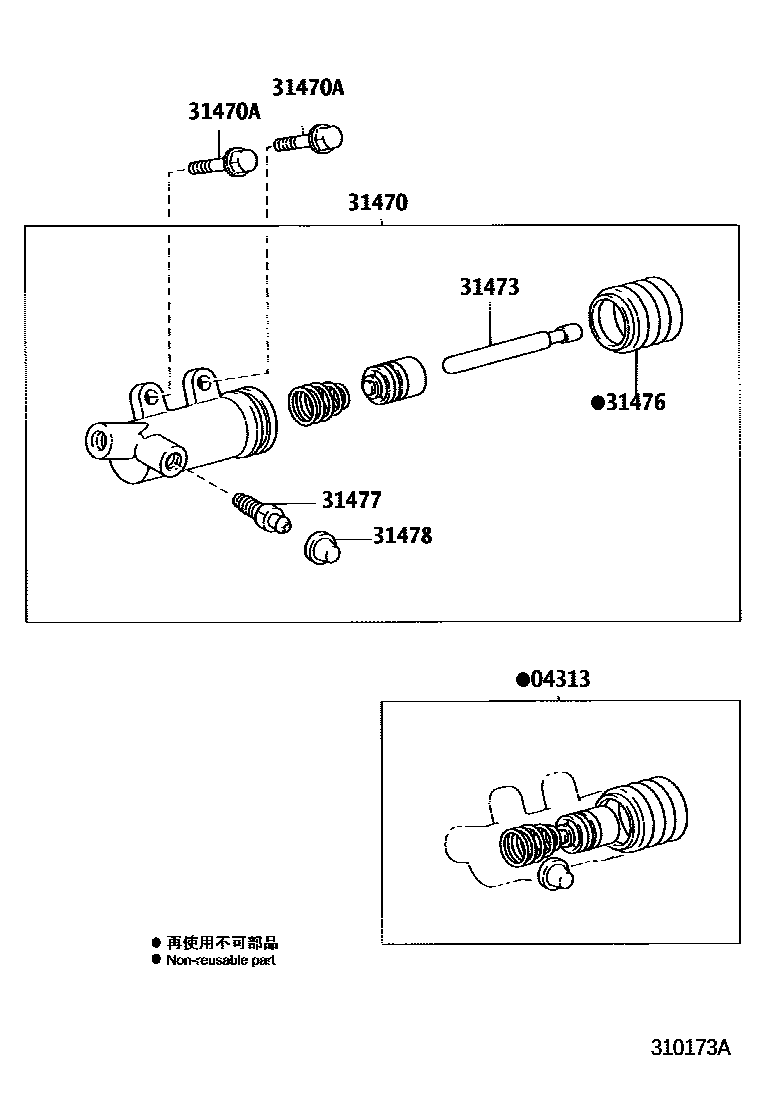

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iLY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM200107

main04313-22030iKDY220,230,240..MTM200408-200708

main04313-25030iKDY270,280,290..MTM200408-200501

main04313-25070iKDY221,231,241,271,281..MTM200709

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-25040iKDY220,230,240,270,280,290..MTM200408-200708

main31470-26100iLY230,280,RZY220,23#,281,TRY220,23#,281..MTM..(EFI,LPG)200107

main31470-30222iLY220..MTM..ST;LY230..(T2,TW3)..MTM..(125T,1T)200107-200408

main31470-35110iLY220,240,290..WT;LY270,280..MTM..DSL;LY230..(TW1,TW4)..MTM;LY230..MTM..(12T,15T,175T)..DSL200107-200408

main31470-35140iKDY221,231,241,271,281..MTM200709

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825×2iLY230..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM200107

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iKDY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM200107

main31473-35050iLY220,230,240,270,280,290..MTM..DSL200107-200408

main31473-52020iKDY221,231,241,271,281..MTM200709

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iLY230,280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM200107

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iLY230,280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM200107

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iLY230,280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM200107

7 parts on this diagram · 2 diagrams in section
