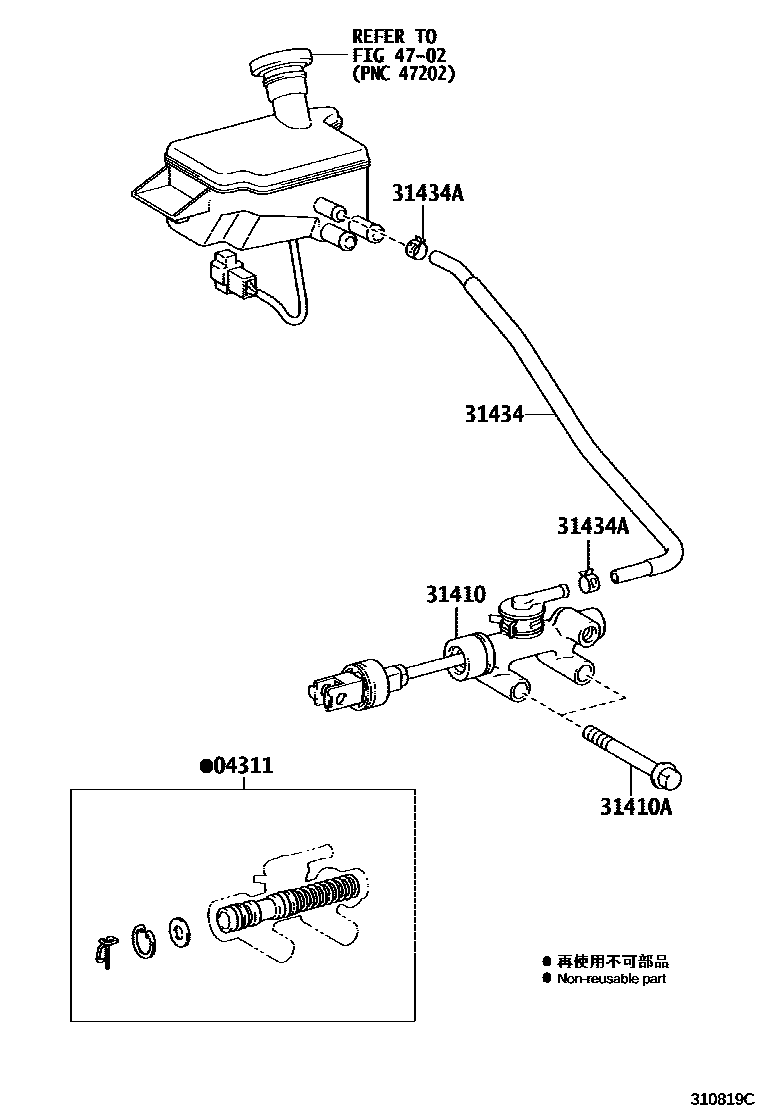

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-25020iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM200107-202111

31410CYLINDER ASSY, CLUTCH MASTER

main31420-25040iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM200107-202111

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91611-60865×2iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM200107-201610

31434TUBE, CLUTCH RESERVOIR

main31434-25060iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM200107-201610

main31434-37260iKDY221,231,241,271,281,TRY220,23#,281..MTM201610-202111

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90467-16003×2iLY220,230,240,270,280,290,RZY220,230..MTM200107-200111

main96133-41300×2iKDY221,231,241,271,281,TRY220,23#,281..MTM201610-202111

main96133-41500×2iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM200111-201610

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

6 parts on this diagram · 2 diagrams in section
