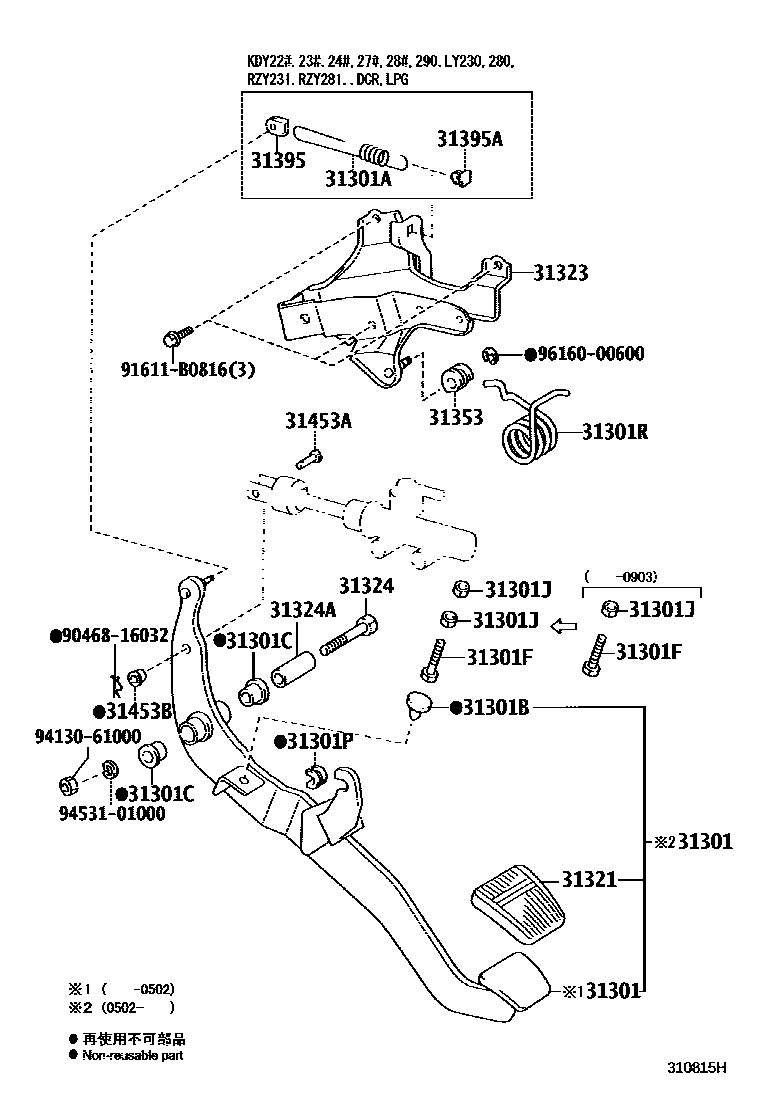

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-25090iTRY220,23#,281..MTM201610-202111

main31310-25030iKDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230..MTM200107-200501

sub31310-25050

main31310-25050iKDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281..MTM200502-200904

sub31310-25070

main31310-25070iKDY221,231,241,271,281,TRY220,23#,281..MTM200904-201610

31301ASPRING(FOR CLUTCH PEDAL)

main90905-06079iKDY22#,23#,24#,27#,28#,290,LY230,280,RZY231,281..MTM..(DCR,LPG)200108-201610

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iKDY221,231,241,271,281..MTM200107-202111

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM200107-201610

main90386-13015iTRY220,23#,281..MTM201610-202111

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-08052iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM200107-200903

main91111-41035iKDY221,231,241,271,281..MTM200903-201610

main91551-80825iTRY220,23#,281..MTM201610-202111

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94120-41000iKDY221,231,241,271,281..MTM200903-201610

main94130-60800iTRY230..TS..125T..WT200107-202111

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90386-05017iLY230,280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM200107-201610

main90389-06055iTRY220,23#,281..MTM201610-202111

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main31316-25020iKDY221,231,241,271,281..MTM201610

main31316-25030iTRY220,23#,281..MTM201610-202111

main90949-03107iKDY22#,23#,24#,27#,28#,290,LY230,280,RZY231,281..MTM..(DCR,LPG)200108-201610

main90949-03108iLY230,280..MTM..DSL;LY220,240,270,290,RZY220,230,TRY220,23#,281..MTM200107-201610

31321PAD, CLUTCH PEDAL

main31321-14020iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM200107-201703

main31321-52020iTRY220,23#,281..MTM201704-202111

31323BRACKET, CLUTCH PEDAL

main55107-25030iLY230..TW1;LY220..125T..WT;LY230..TB..125T..ST;LY230,280,RZY220,230..MTM..(EFI,LPG)200107-200903

main55107-25040iKDY221..(T3,TW1)..MTM;KDY231,241,TRY220,230..(TW1,TW3,VAN)..(06S,TS)..(15T,1T)200903-201609

31324SHAFT, CLUTCH PEDAL

main91112-61070iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM200107-201610

main91552-81060iTRY220,23#,281..MTM201610-202111

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iKDY221,231,241,271,281..MTM201610-202111

main90387-10004iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM200107-201610

31353HOLDER, CLUTCH PEDAL SPRING

main31353-14010iLY230,280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM200107-201610

main31353-35010iTRY220,23#,281..MTM201610-202111

31395HOOK, PEDAL SPRING

main31395-33010iKDY22#,23#,24#,27#,28#,290,LY230,280,RZY231,281..MTM..(DCR,LPG)200108-201610

31395AHOOK, PEDAL SPRING, NO.1

main31395-33020iKDY22#,23#,24#,27#,28#,290,LY230,280,RZY231,281..MTM..(DCR,LPG)200108-201610

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iTRY220,23#,281..MTM..(125T,15T)200107-202111

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iTRY220,23#,281..MTM..(125T,15T)200107-202111

9046816032

main90468-16032

91611B0816

main91611-B0816

9413061000

main94130-61000

9453101000

main94531-01000

9616000600

main96160-00600

22 parts on this diagram · 5 diagrams in section
