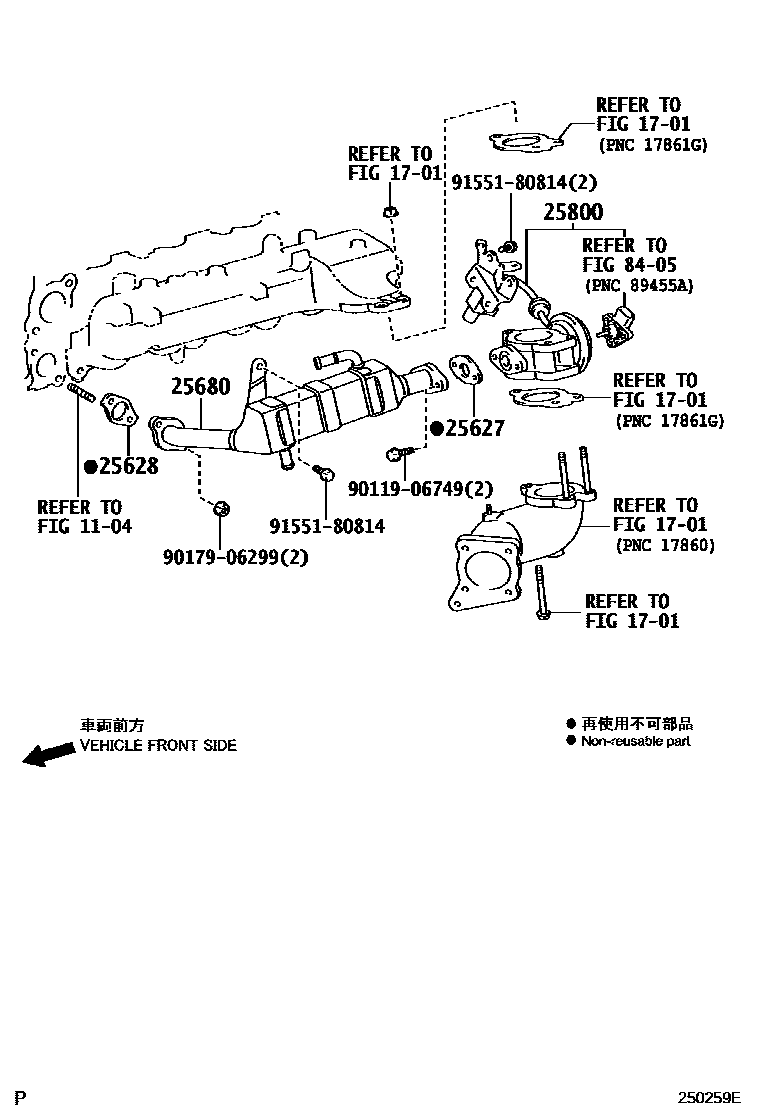

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1701MANIFOLD

→ Go to FIG 17-01

25627GASKET, EGR VALVE

main25627-30010i2KDFTV..KDY220,230,240,270,280,290200408-200708

main25627-30070i1KDFTV..KDY221,231,241,271,281201008

25628GASKET, EGR INLET

main25628-30010i2KDFTV..KDY220,230,240,270,280,290200408-200708

main25628-30060i1KDFTV..KDY221,231,241,271,281201008

25680COOLER ASSY, EGR

main25680-30010i2KDFTV..KDY220,230,240,270,280,290200408-200708

main25680-30020i1KDFTV..KDY221,231,241,271,281200709-201008

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-30070i2KDFTV..KDY220,230,240,270,280,290200408-200708

main25800-30150i1KDFTV..KDY221,231,241,271,281200709-201008

main25800-30200i1KDFTV..KDY221,231,241,271,281201008

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

9011906749

main90119-06749

9017906299

main90179-06299

9155180814

main91551-80814

10 parts on this diagram · 3 diagrams in section
