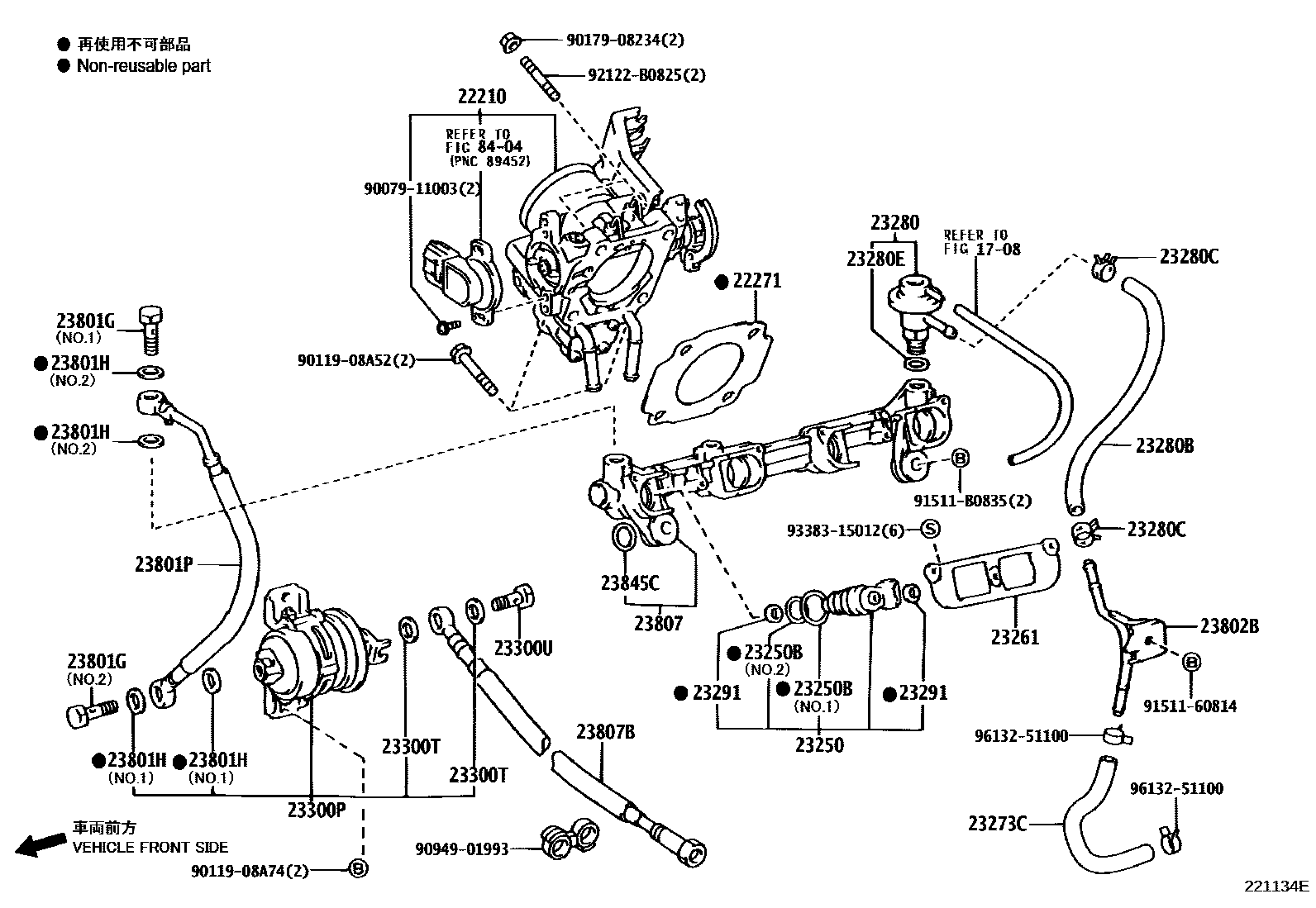

FUEL INJECTION SYSTEM
1708
22210BODY ASSY, THROTTLE
23250BRING, O(FOR FUEL INJECTOR)
23261COVER, INJECTOR
23280BHOSE, FUEL PRESSURE REGULATOR RETURN
sub95337-06020
23280CCLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE)
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
sub23300-79605
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23807BHOSE, FUEL DELIVERY PIPE
23845CINSULATOR, FUEL PIPE
8404
9007911003
main90079-11003
9011908A52
main90119-08A52
9011908A74
main90119-08A74
9017908234
main90179-08234
9094901993
main90949-01993
9151160814
main91511-60814
91511B0835
main91511-B0835
92122B0825
main92122-B0825
9338315012
main93383-15012
9613251100
main96132-51100
33 parts on this diagram · 5 diagrams in section
