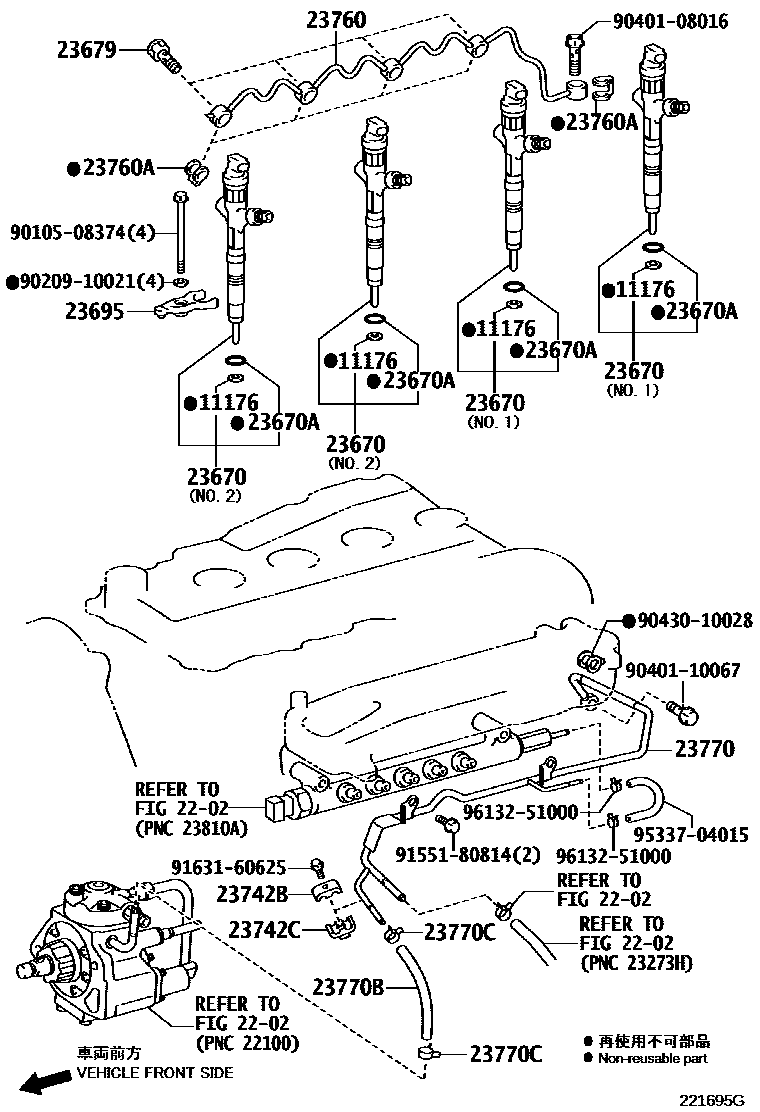

INJECTION NOZZLE

0001 1 0002 1 0003 1 0004 1

11176SEAT, INJECTION NOZZLE

main11176-30010i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200408-200710

sub11176-30011

main11176-30011i1KDFTV..KDY221,231,241,271,281200710

main11176-64010i5L..LY220,230,240,270,280,290200107-200408

2202

23670INJECTOR ASSY

main23670-39095i2KDFTV..KDY220,230,240,270,280,290200408-200708

sub23670-39096

main23670-39125i2KDFTV..KDY220,230,240,270,280,290200408-200708

sub23670-39126

main23670-39195i1KDFTV..KDY221,231,241,271,281200709-200710

sub23670-39196

main23670-39196i1KDFTV..KDY221,231,241,271,281200710-201008

main23670-39205i1KDFTV..KDY221,231,241,271,281200709-200710

sub23670-39206

main23670-39206i1KDFTV..KDY221,231,241,271,281200710-201008

main23670-39435i1KDFTV..KDY221,231,241,271,281201008

23670ARING, O(FOR INJECTOR ASSY)

main96721-19017i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200408

23679SCREW, INJECTOR FOLLOW

main23679-30020i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200408-201001

sub23679-30021

main23679-30021i1KDFTV..KDY221,231,241,271,281201001

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-0L010i1KDFTV..KDY221,231,241,271,281200905-201008

sub23695-30011

main23695-30010i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200408-200809

sub23695-30011

main23695-30011i1KDFTV..KDY221,231,241,271,281200809-200905

main23695-30020i1KDFTV..KDY221,231,241,271,281201008

23742BCLAMP, INJECTION PIPE, NO.2

main23742-27010i2KDFTV..KDY220,230,240,270,280,290200408-200708

main23742-30010i1KDFTV..KDY221,231,241,271,281201008

23742CCLAMP, INJECTION PIPE, NO.3

main23742-30020i1KDFTV..KDY221,231,241,271,281201008

main23742-58020i2KDFTV..KDY220,230,240,270,280,290200408-200708

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-30020i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200408

main23760-54030i5L..LY220,230,240,270,280,290200107-200408

23760AGASKET

main90904-30013i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200408

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23764-54090i5L..LY220,230,240,270,280,290200107-200408

main23770-30050i2KDFTV..KDY220,230,240,270,280,290200408-200607

sub23770-30051

sub90401-10067

sub90430-10028

main23770-30051i2KDFTV..KDY220,230,240,270,280,290200607-200708

main23770-30110i1KDFTV..KDY221,231,241,271,281200709-201008

main23770-30130i1KDFTV..KDY221,231,241,271,281201008

23770BHOSE, FUEL

main23271-30330i1KDFTV..KDY221,231,241,271,281201008

main95333-04020i5L..LY220,230,240,270,280,290200107-200408

main95333-06010i2KDFTV..KDY220,230,240,270,280,290200408-200602

main95337-06010i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200602-201008

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main96132-51000i5L..LY220,230,240,270,280,290200107-200408

main96135-51100i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200408

9010508374

main90105-08374

9020910021

main90209-10021

9040108016

main90401-08016

9040110067

main90401-10067

9043010028

main90430-10028

9155180814

main91551-80814

9163160625

main91631-60625

9533704015

main95337-04015

9613251000

main96132-51000

22 parts on this diagram · 4 diagrams in section
