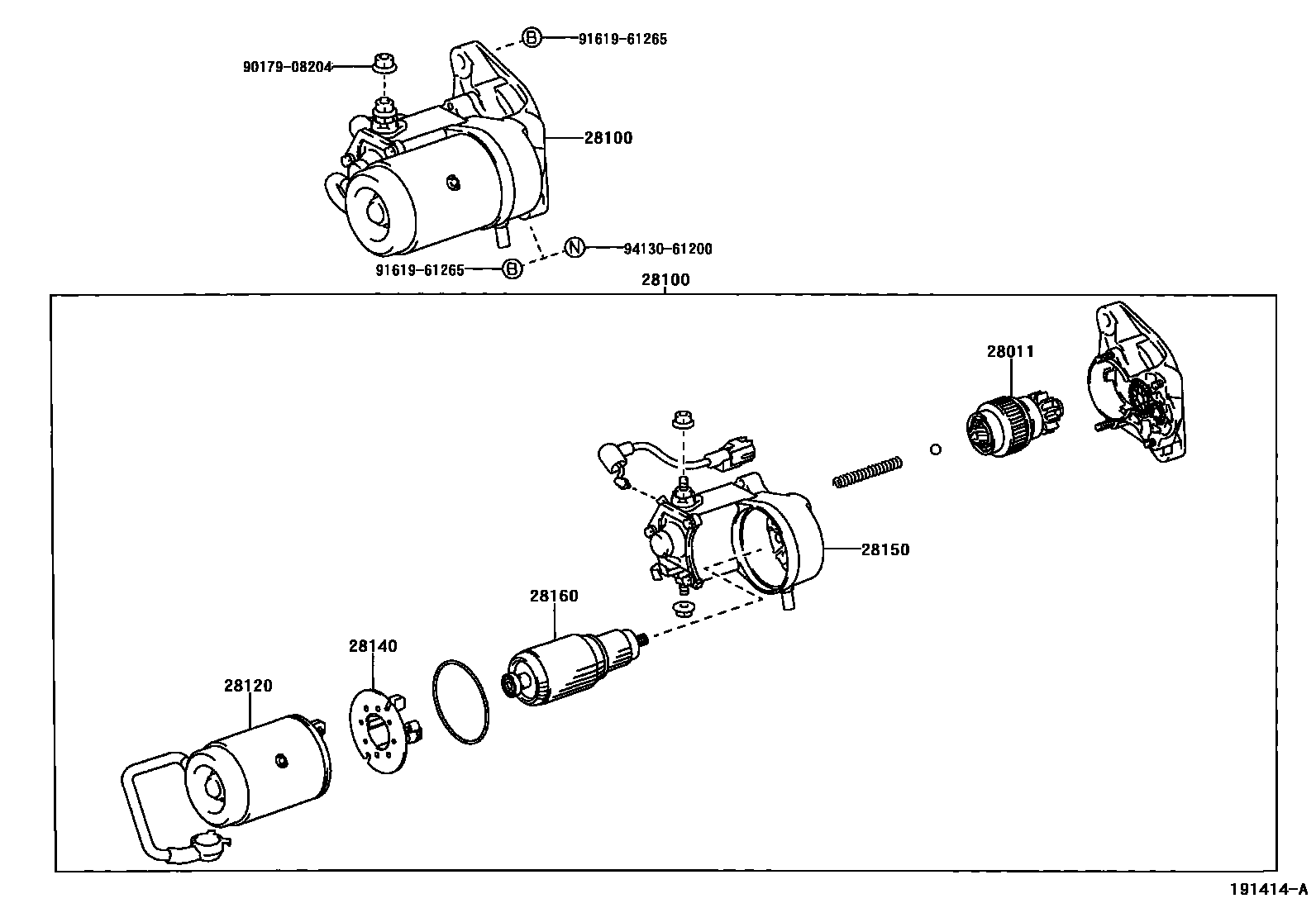

STARTER

0001 112V 2.2KW 0002 112V 2.7KW 0003 112V 1.0KW 0004 112V 1.0KW 0005 112V 1.4KW 0006 112V 2.0KW 0007 112V 2.7KW 0008 112V 3.0KW 0012 112V 2.2KW

28011CLUTCH SUB-ASSY, STARTER

main28011-30040i2KDFTV..KDY220,230,240,270,280,290..MTM200408-200708

12V 2.0KW

main28011-30050i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200408

12V 2.7KW,3.0KW

main28011-54010i5L..LY220,230,240,270,280,290200107-200408

12V 2.7KW

main28011-54450i5L..LY220,230,240,270,280,290..MTM200107-200408

12V 2.2KW

main28011-67030i1KDFTV..KDY221..TB..ATM;1KDFTV..KDY231..WT..IV6;1KDFTV..KDY231..TS..ATM..125T..WT;1KDFTV..KDY221,231,241,271,281..MTM200709

main28011-70020i1RZE,1TRFE..RZY220,230,TRY220,230200107-201101

12V 1.0KW

main28011-76070i1RZE,3RZFPE,1TR#..LY230,280,RZY220,23#,281,TRY220,23#,281200107

12V 1.4KW

28100STARTER ASSY

main28100-30040i2KDFTV..KDY220,230,240,270,280,290..MTM200408-200708

main28100-30070i1KDFTV..KDY241..03S200408-200903

main28100-30071i1KDFTV..KDY221..TB..IV3;1KDFTV..KDY231..ATM..ST;1KDFTV..KDY231..15T..WT..IV3;1KDFTV..KDY221,281..ATM..CBU;1KDFTV..KDY231..T3..MTM..IV3;1KDFTV..KDY231..ATM..WT..CBU;1KDFTV..KDY231..ATM..125T..WT..IV3;1KDFTV..KDY221,271,281..(T2,T3)..(IV3,IV6)200906-201008

main28100-30080i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200408-200905

main28100-30081i1KDFTV..KDY221,231,241,271,281200906

main28100-54430i5L..LY220,230,240,270,280,290200107-200408

main28100-54450i5L..LY220,230,240,270,280,290..MTM200107-200408

main28100-67050i1KDFTV..KDY221,231,241,271,281..MTM200709-200910

main28100-67051i1KDFTV..KDY221,231,241,271,281..MTM200911-201408

main28100-67052i1KDFTV..KDY221,231,241,271,281201409

main28100-75100i1RZE,3RZFPE,1TR#..LY230,280,RZY220,23#,281,TRY220,23#,281200107-200906

main28100-75101i1TR#..TRY220,23#,281200907

main28100-75150i1TRFE..TRY220,230200308-200906

main28100-75151i1TRFE..TRY220,230200907

28120YOKE ASSY, STARTER

main28120-40130i1TRFE..TRY220,230200907

main28120-54380i2KDFTV..KDY220,230,240,270,280,290..MTM200408-200708

12V 2.0KW

main28120-56081i5L..LY220,230,240,270,280,290200107-200408

12V 2.7KW

main28120-64040i1KDFTV..KDY221..TB..ATM;1KDFTV..KDY231..WT..IV6;1KDFTV..KDY231..TS..ATM..125T..WT;1KDFTV,5L..KDY221,231,241,271,281,LY220,230,240,270,280,290..MTM200107

12V 2.2KW

main28120-66040i1RZE,3RZFPE,1TR#..LY230,280,RZY220,23#,281,TRY220,23#,281200107

12V 1.4KW

main28120-67020i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200408

12V 2.7KW

main28120-67090i2KDFTV..KDY240..03S;1KDFTV..KDY221..TB..IV3;2KDFTV..KDY230,280..ATM;1KDFTV..KDY231..ATM..ST;1KDFTV..KDY231..15T..WT..IV3;1KDFTV..KDY221..(T2,T3)..IV3;1KDFTV..KDY231..ATM..WT..CBU;2KDFTV..KDY230..MTM..15T..WT..IV3;2KDFTV..KDY280..(T3,T4)..MTM..IV3;1KDFTV..KDY231..ATM..125T..WT..IV3;1KDFTV,2KDFTV..KDY22#,281..ATM..CBU;1KDFTV,2KDFTV..KDY23#,270..T3..MTM..IV3;1KDFTV,2KDFTV..KDY220,271,281..(125T,15T)..(IV3,IV6)200408-201008

12V 3.0KW

main28120-70050i1TRFE..TRY220,230200308-200907

12V 1.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-54380i2KDFTV..KDY220,230,240,270,280,290..MTM200408-200708

12V 2.0KW

main28140-64040i1KDFTV..KDY221..TB..ATM;1KDFTV..KDY231..WT..IV6;1KDFTV..KDY231..TS..ATM..125T..WT;1KDFTV,5L..KDY221,231,241,271,281,LY220,230,240,270,280,290..MTM200107

12V 2.2KW

main28140-67090i1KDFTV..KDY241..03S200408-200903

12V 3.0KW

main28140-70020i1RZE,1TRFE..RZY220,230,TRY220,230200107

12V 1.0KW

main28140-76070i1RZE,3RZFPE,1TR#..LY230,280,RZY220,23#,281,TRY220,23#,281200107

12V 1.4KW

main28140-77090i1KDFTV,2KDFTV,5L..KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290200107

12V 2.7KW

28150SWITCH ASSY, MAGNET STARTER

main28150-30040i2KDFTV..KDY220,230,240,270,280,290..MTM200408-200708

12V 2.0KW

main28150-30050i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200408

12V 2.7KW

main28150-30070i2KDFTV..KDY240..03S;1KDFTV..KDY221..TB..IV3;2KDFTV..KDY230,280..ATM;1KDFTV..KDY231..ATM..ST;1KDFTV..KDY231..15T..WT..IV3;1KDFTV..KDY221..(T2,T3)..IV3;1KDFTV..KDY231..ATM..WT..CBU;2KDFTV..KDY230..MTM..15T..WT..IV3;2KDFTV..KDY280..(T3,T4)..MTM..IV3;1KDFTV..KDY231..ATM..125T..WT..IV3;1KDFTV,2KDFTV..KDY22#,281..ATM..CBU;1KDFTV,2KDFTV..KDY23#,270..T3..MTM..IV3;1KDFTV,2KDFTV..KDY220,271,281..(125T,15T)..(IV3,IV6)200408-201008

12V 3.0KW

main28150-54320i5L..LY220,230,240,270,280,290200107-200408

12V 2.7KW

main28150-54330i5L..LY220,230,240,270,280,290..MTM200107-200408

12V 2.2KW

main28150-67050i1KDFTV..KDY281..ATM;1KDFTV..KDY221..TS..ATM;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY231..TB..ATM..125T;1KDFTV..KDY231..(T2,T3,T4)..ATM..(CBU,IV3)201008

12V 2.2KW

main28150-75102i1TRFE..TRY220,230; 1TRFPE..TRY231,281200907

12V 1.4KW

main28150-75150i1RZE,1TRFE..RZY220,230,TRY220,230200107

12V 1.0KW

28160ARMATURE ASSY, STARTER

main28160-54160i1KDFTV,2KDFTV,5L..KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290200107

12V 2.7KW

main28160-54380i2KDFTV..KDY220,230,240,270,280,290..MTM200408-200708

12V 2.0KW

main28160-64041i1KDFTV..KDY221..TB..ATM;1KDFTV..KDY231..WT..IV6;1KDFTV..KDY231..TS..ATM..125T..WT;1KDFTV,5L..KDY221,231,241,271,281,LY220,230,240,270,280,290..MTM200107

12V 2.2KW

main28160-67090i1KDFTV..KDY241..03S200408-200903

12V 3.0KW

main28160-70050i1RZE,1TRFE..RZY220,230,TRY220,230200107

12V 1.0KW

main28160-74070i1RZE,3RZFPE..LY230,280,RZY220,230200107-200208

12V 1.4KW

main28160-75060i1RZE,3RZFPE,1TR#..LY230,280,RZY220,23#,281,TRY220,23#,281200208

12V 1.4KW

9017908204

main90179-08204

9161961265

main91619-61265

9413061200

main94130-61200

9 parts on this diagram · 9 diagrams in section
