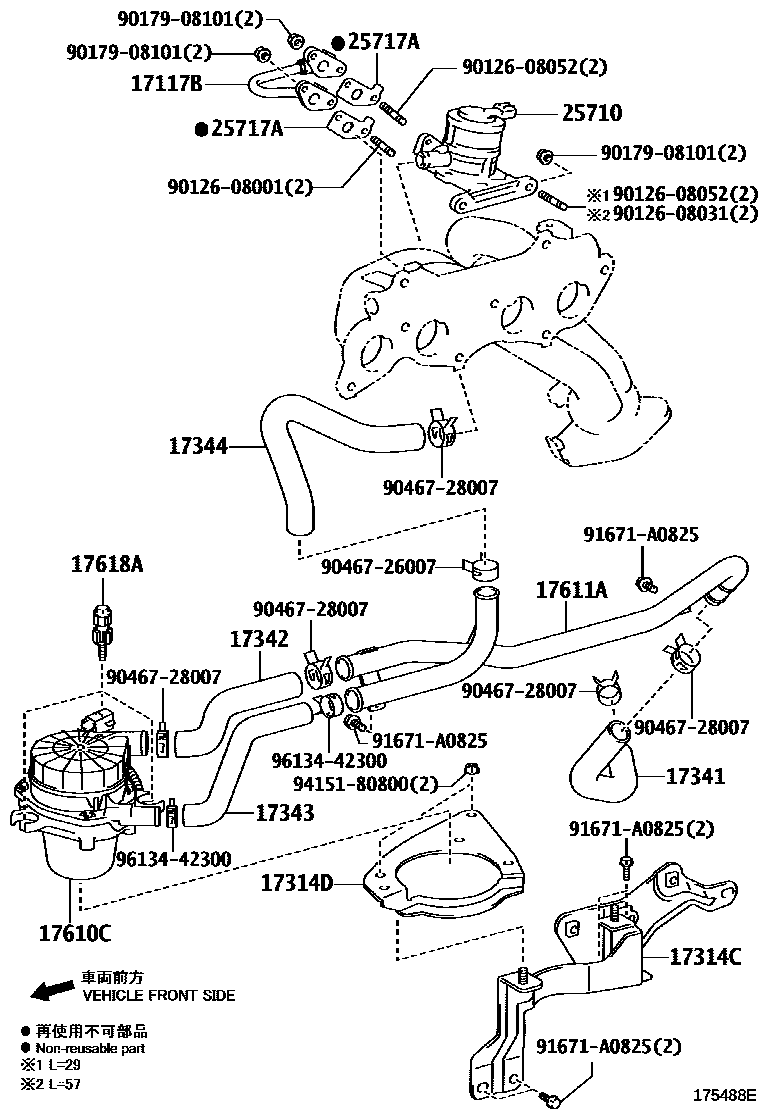

MANIFOLD AIR INJECTION SYSTEM

17117BPIPE, INTAKE, NO.4

main17117-75010i1TRFE..TRY220,230200708-201005

main17117-75011i1TRFE..TRY220,230201005

17314CBRACKET, AIR PUMP

main17316-75010i1TRFE..TRY220,230200708

17314DBRACKET, AIR PUMP, NO.1

main17314-0W050i1TRFE..TRY220,230200708

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-75180i1TRFE..TRY220,230200708

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-75040i1TRFE..TRY220,230200708

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-75030i1TRFE..TRY220,230200708

17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)

main17344-75010i1TRFE..TRY220,230200708

17610CPUMP ASSY, AIR

main17610-0C010i1TRFE..TRY220,230200708

17611APIPE, AIR PUMP INLET

main17611-75020i1TRFE..TRY220,230200708

17618AINSULATOR, AIR PUMP

main17618-0F010×3i1TRFE..TRY220,230200708

25710VALVE ASSY, AIR SWITCHING

main25710-75020i1TRFE..TRY220,230200708-200912

main25710-75021i1TRFE..TRY220,230200912-201006

sub90126-08031

main25710-75022i1TRFE..TRY220,230201006-201201

main25710-75023i1TRFE..TRY220,230201201-201206

main25710-75024i1TRFE..TRY220,230201206-201305

main25710-75025i1TRFE..TRY220,230201305

25717AGASKET, AIR SWITCHING VALVE

main25717-75010×2i1TRFE..TRY220,230200708

9012608001

main90126-08001

9012608031

main90126-08031

9012608052

main90126-08052

9017908101

main90179-08101

9046726007

main90467-26007

9046728007

main90467-28007

91671A0825

main91671-A0825

9415180800

main94151-80800

9613442300

main96134-42300

21 parts on this diagram · 1 diagram in section
