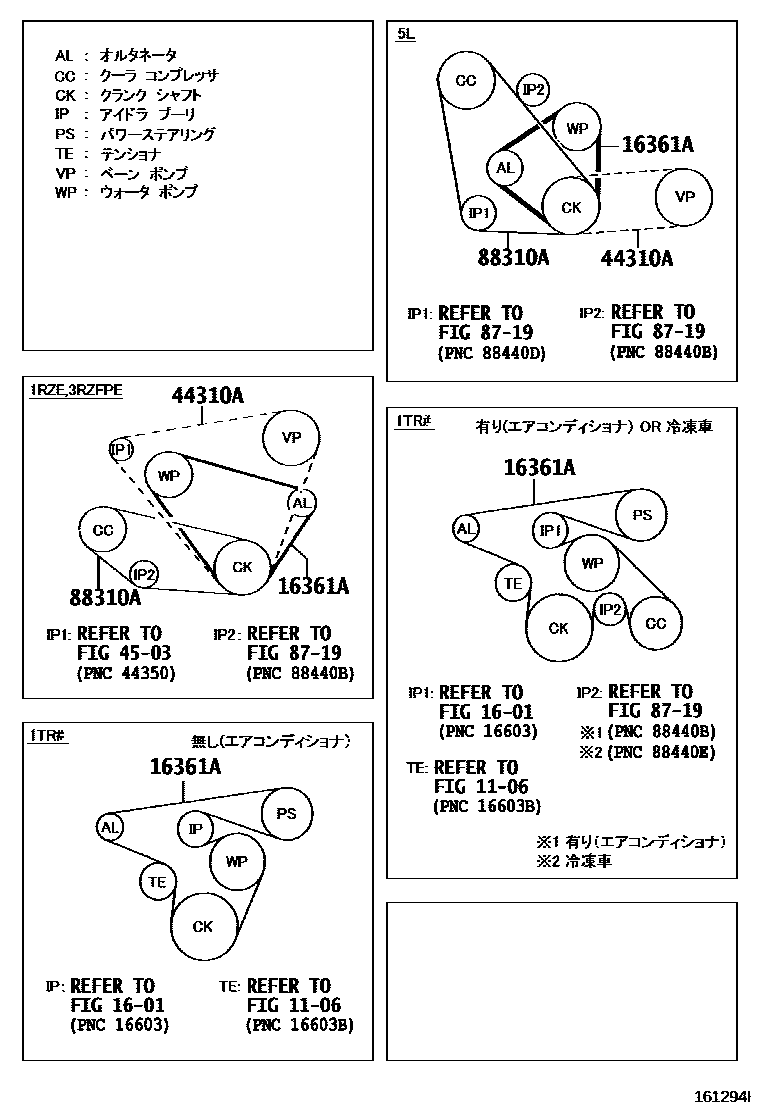

V-BELT

0001 1 0002 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02211i5L..LY220,230,240,270,280,290200107-200408

main90916-02336i1RZE,3RZFPE..LY230,280,RZY220,23#,281200107-200708

main90916-02523i1KDFTV..KDY221..T4..TB;1KDFTV..KDY221..T2,T3,TW1;1KDFTV,2KDFTV..KDY220,23#,24#,27#,28#,290200408

main90916-02524i1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV,2KDFTV..KDY220,230,24#,27#,28#,290;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3)200408

main90916-02636i1TR#..TRY220,23#,281200407-201110

main90916-02639i1TR#..TRY220,23#,281200407-201110

main90916-02707i1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TR#..TRY220,23#,281..(T2,T3,T4,TW1,TW3)..(CBU,IV3)201111

main90916-02709i1TR#..TRY220,23#,281201111

main99367-C1870i1TRFE..TRY220,230200308-200406

main99367-C2300i1TRFE..TRY220,230..TB..MTM..15T..WT..IV3200308-200407

44310ABELT, V(FOR VANE PUMP)

main99332-01120iRZY220,230200107-200308

main99332-10870iLY240..03S;LY220..15T..IV3;LY230..TS..WT..IV3;LY220,270..MTM..125T..ST..IV3;LY230,280..(T3,T4)..MTM..DSL..IV3200107-200408

main99364-30790iLY220,230,240,270,280,290..DSL200107-200408

main99364-31110iLY230,280,RZY231,281..LPG200107-200708

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99332-11265iLY220,230,240,270,280,290..DSL200107-200408

main99332-11430iLY230..TS..WT..IV3200107-200408

main99364-30940iLY230,280,RZY220,23#,281..EFI,LPG200107-200408

main99364-D0940iRZY231,281200408-200708

7 parts on this diagram · 2 diagrams in section
