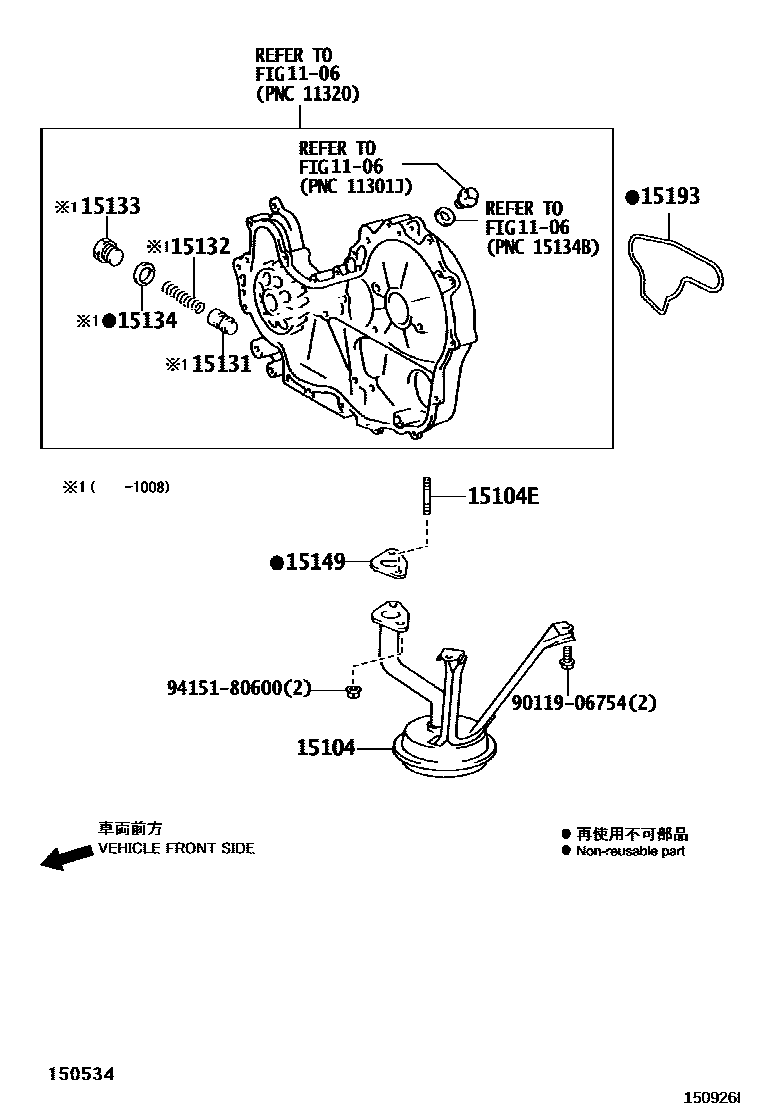

ENGINE OIL PUMP

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15104STRAINER SUB-ASSY, OIL

main15104-54161i5L..LY220,230,240,270,280,290200107-200308

main15104-54240i5L..LY220,230,240,270,280,290200308-200408

main15104-67060i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200408

main15104-75020i3RZFPE..LY230,280200107-200308

main15104-75111i1TR#..TRY220,23#,281200308-201411

main15104-75220i1TR#..TRY220,23#,281201411

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06140×2i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200408

main90126-08037×2i1TR#..TRY220,23#,281200308-201107

main90126-08052×2i1TR#..TRY220,23#,281201107-201411

main92122-40816×2i5L..LY220,230,240,270,280,290200107-200208

main92122-80816×2i5L..LY220,230,240,270,280,290200208-200408

15131VALVE, OIL PUMP RELIEF

main15131-24010i3RZFPE..LY230,280200107-200308

main15131-46040i1KDFTV..KDY221,231,241,271,281200408-201008

main15131-54010i5L..LY220,230,240,270,280,290200107-200408

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i1KDFTV..KDY221,231,241,271,281200408-201008

main15132-54010i5L..LY220,230,240,270,280,290200107-200408

main15132-75010i1RZE..RZY220,230200107-200308

main15132-75020i3RZFPE..RZY231,281200308-200708

main15132-75021i3RZFPE..LY230,280200107-200308

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1TR#..TRY220,23#,281201310-201406

main15133-33040i1TR#..TRY220,23#,281201406

main15133-54010i5L..LY220,230,240,270,280,290200107-200408

15134GASKET, OIL PUMP RELIEF VALVE

main15134-67020i2KDFTV..KDY220,230,240,270,280,290200408-200708

15149GASKET, OIL STRAINER FLANGE

main15149-67010i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200408

15193GASKET, OIL PUMP

main15193-67011i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200408

9011906754

main90119-06754

9415180600

main94151-80600

11 parts on this diagram · 7 diagrams in section
