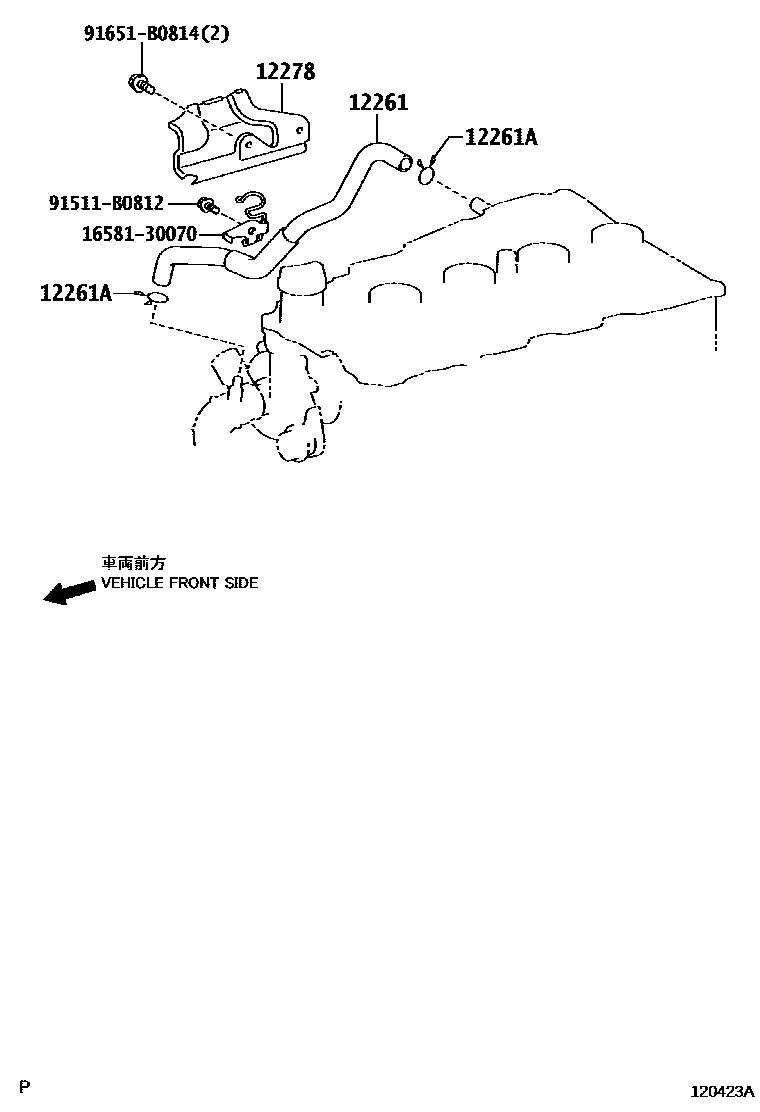

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

12261HOSE, VENTILATION

main12261-30020i2KDFTV..KDY220,230,240,270,280,290200408-200708

main12261-30040i1KDFTV..KDY221,231,241,271,281200709

main12261-54130i5L..LY220,230,240,270,280,290200107-200408

main12261-75051i3RZFPE..RZY231,281200107-200708

main12261-75100i1TRFE..TRY220,230200308-201607

main12261-75120i1TRFPE..TRY231,281200712

main12261-75140i1TRFE..TRY220,230201607

main12262-75060i1RZE..RZY220,230200107-200308

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14001i1TRFPE..TRY231,281200712

main90467-14001i3RZFPE..LY230,280200107-200708

main90467-15006i1TRFPE..TRY231,281200712

main90467-18003i5L..LY220,230,240,270,280,290200107-200408

main90467-23002i2KDFTV..KDY220,230,240,270,280,290200408-200708

12278INSULATOR, VENTILATION HOSE HEAT

main12278-30020i2KDFTV..KDY220,230,240,270,280,290200408-200708

1658130070CLAMP, HOSE(FOR WATER HOSE)

main16581-30070

91511B0812

main91511-B0812

91651B0814

main91651-B0814

6 parts on this diagram · 8 diagrams in section
