SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1�������� 0003 1��� 0004 1������������ 0005 1������������ 0006 1������� 0007 1���,���,��� 0008 1�������

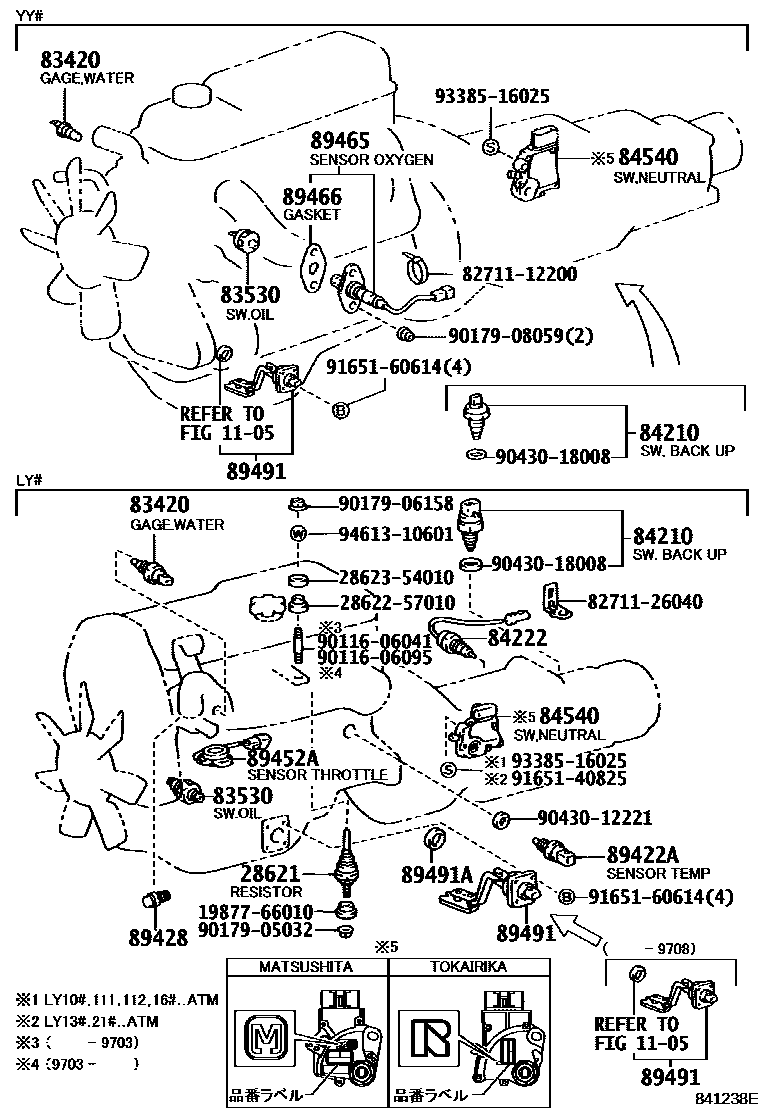

1105

28621RESISTOR, GLOW PLUG

main28621-54080i3L..LY201,211199505-199610

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14070iYY201,211199505-199512

sub83530-28010

main83530-28020iLY16#,YY101,121,131,201,211..CBR,LPG199803

main83530-30060iLY101,111,121,131,151,161,201,211199505-199803

sub83530-60030

main83530-30090iYY101,121,131,201,211199601-199803

sub83530-60020

main83530-60030iLY10#,11#,12#,13#,15#,16#,20#,21#..DSL199803

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505

sub84210-52050

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-26010iLY15#,16#199610

84540SWITCH ASSY, NEUTRAL START

main84540-30290iLY112..T2..TS;LY112..T3..TB;LY112..T3..ATM;LY10#,111,16#,YY211..ATM199505

main84540-30300iLY112..T2..TS;LY112..T3..TB;LY112..T3..ATM;LY10#,111,16#,YY211..ATM199505

main84540-65010iLY13#,21#..ATM199505

89422ASENSOR, WATER TEMPERATURE

main89422-20010iLY10#,11#,12#,13#,15#,16#,20#,21#..DSL199505

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-36030iLY10#,11#,13#,16#,21#..ATM199505

89452ASENSOR, THROTTLE POSITION

main89452-10020iLY211..ATM199505-199610

89465SENSOR, OXYGEN

main89465-29665iLY16#,YY101,121,131,201,211..CBR,LPG199505

89466GASKET, OXYGEN SENSOR

main89466-20020iLY16#,YY101,121,131,201,211..CBR,LPG199505

89491SENSOR, ENGINE OIL LEVEL

main89491-25010iLY201,211199505-199708

sub89491-25011

main89491-25011iLY20#,21#199708

main89491-25020iLY101,111;LY131..ATM199610-199708

sub89491-25021

main89491-25021iLY10#,11#,12#,13#,15#,16#..DSL199708

main89491-26090iLY121,131,151,161..MTM199610-199708

sub89491-26091

main89491-27020iYY101199610

main89491-36100iLY16#,YY121,131,201,211..CBR,LPG199505

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iLY10#,11#,12#,13#,15#,16#,20#,21#..DSL199708

1987766010

main19877-66010

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271126040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-26040

9011606041

main90116-06041

9011606095

main90116-06095

9017905032

main90179-05032

9017906158

main90179-06158

9017908059

main90179-08059

9043012221

main90430-12221

9043018008

main90430-18008

9165140825

main91651-40825

9165160614

main91651-60614

9338516025

main93385-16025

9461310601

main94613-10601

30 parts on this diagram · 8 diagrams in section
