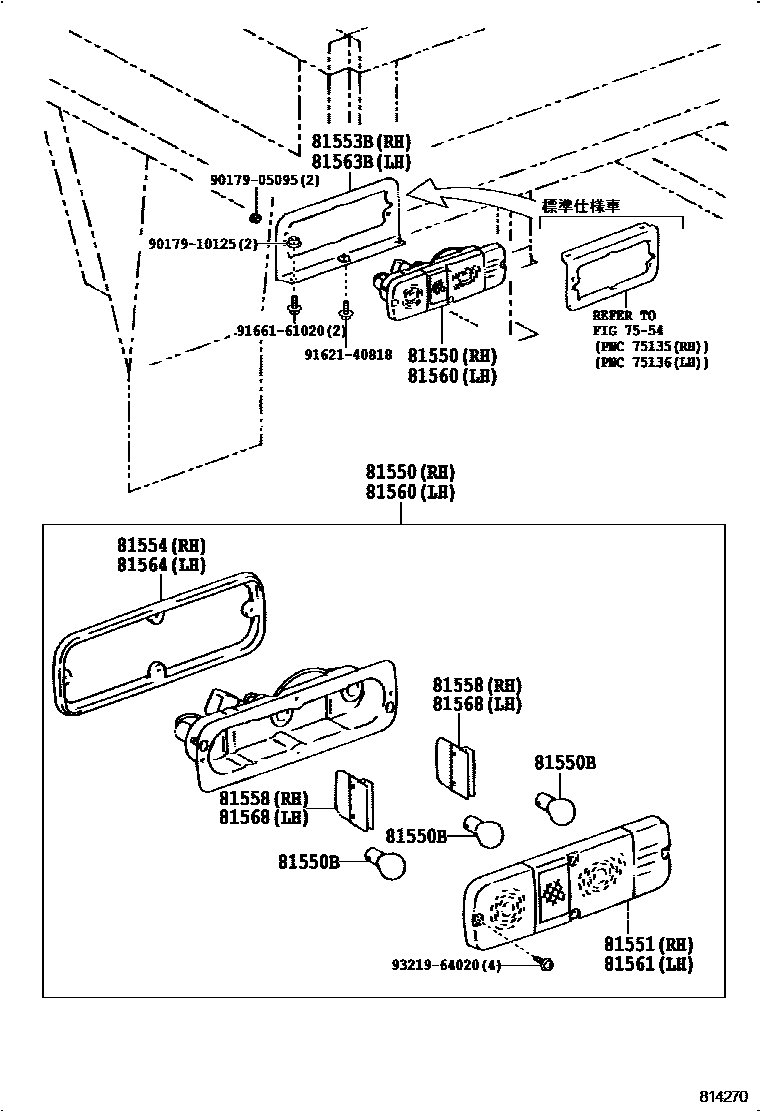

REAR COMBINATION LAMP

7554TOOL BOX & LICENSE PLATE BRACKET

→ Go to FIG 75-54

81550LAMP ASSY, REAR COMBINATION, RH

main81550-25100iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×4iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

main99132-21210×2iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

81553BBRACKET SUB-ASSY, RR COMB LAMP, RH

main75103-25011iLY101,111,161..T2..TB..CBU;LY211..T2..TB..MTM..WT..CBU;LY131,YY131,211..T2..TB..WT..CBU;LY121,131,201,211..(T3,T4)..MTM..CBU199505-199708

main75135-25030iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..IV3,IV5199505

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-25060iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-25060×2iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

81560LAMP ASSY, REAR COMBINATION, LH

main81560-25090iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

81563BBRACKET SUB-ASSY, RR COMB LAMP, LH

main75104-25011iLY101,111,161..T2..TB..CBU;LY211..T2..TB..MTM..WT..CBU;LY131,YY131,211..T2..TB..WT..CBU;LY121,131,201,211..(T3,T4)..MTM..CBU199505-199708

main75135-25030iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..IV3,IV5199505

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-25040iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-25060×2iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

9017905095

main90179-05095

9017910125

main90179-10125

9162140818

main91621-40818

9166161020

main91661-61020

9321964020

main93219-64020

17 parts on this diagram · 1 diagram in section
