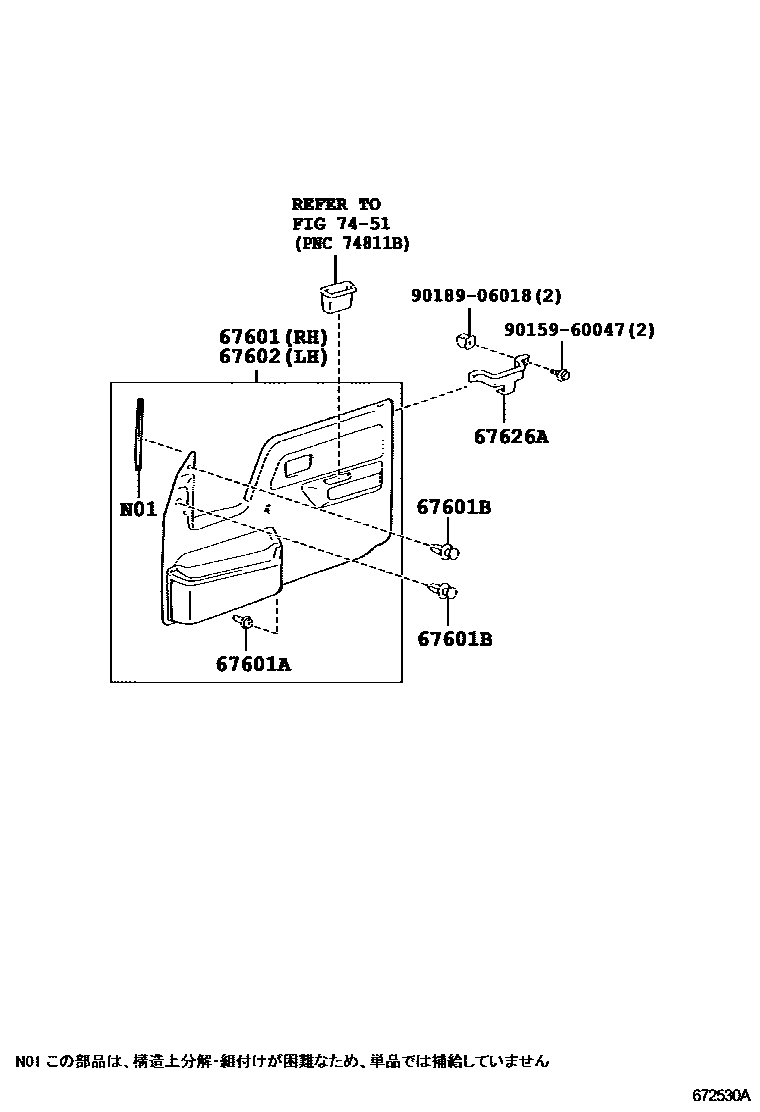

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-37010-B0iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

main67610-95416-B0iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

GRAY,TRIM1#

main67610-95417-B1iLY201,211,YY201,211..T1,T2,T3,T4199505-199610

sub67610-95417

main67610-95417-B2iLY101,111,121,131,151,161,201,211,YY101,121,131,201,211..T1,T2,T3,T4199610-199905

sub67610-95417

main67610-95417-B3iLY102,112,122,132,152,162,202,212,YY101,121,131,201,211..T1,T2,T3,T4199905

sub67610-95417

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12050iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199802

main67771-30060iLY101,111,121,131,151,161,201,211,YY101,121,131,201,211199505-199802

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-06017-B0iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

GRAY,TRIM1#

sub90467-06017

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-37010-B0iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

main67620-95422-B0iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

GRAY,TRIM1#

main67620-95423-B1iLY201,211,YY201,211..T1,T2,T3,T4199505-199610

sub67620-95423

main67620-95423-B2iLY101,111,121,131,151,161,201,211,YY101,121,131,201,211..T1,T2,T3,T4199610-199905

sub67620-95423

main67620-95423-B3iLY102,112,122,132,152,162,202,212,YY101,121,131,201,211..T1,T2,T3,T4199905

sub67620-95423

67626ABRACKET, DOOR TRIM, NO.2

main67626-95400iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

7451

9015960047

main90159-60047

9018906018

main90189-06018

8 parts on this diagram · 3 diagrams in section
