INSIDE TRIM BOARD

62211GARNISH, FRONT PILLAR, RH

main62211-25010-B0iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

LT.GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-25010-B0iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

LT.GRAY,TRIM1#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-37020-B0iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

BLUISH GRAY,TRIM1#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-37020-B0iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

BLUISH GRAY,TRIM1#

62333ATRIM, REAR DOOR OPENING, RH

main62333-95400-B0iLY10#,11#,13#,15#,16#,201,21#,YY101,131,201,211..TW1,TW2199505

GRAY,TRIM1#

62334ATRIM, REAR DOOR OPENING, LH

main62333-95400-B0iLY10#,11#,13#,15#,16#,201,21#,YY101,131,201,211..TW1,TW2199505

GRAY,TRIM1#

62335ACOVER, REAR DOOR OPENING TRIM

main62335-92600-B0×4iLY10#,11#,13#,15#,16#,201,21#,YY101,131,201,211..TW1,TW2199505

GRAY,TRIM1#

62471DGARNISH, REAR PILLAR, UPPER RH

main62471-25010-B0iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4199505

LT.GRAY,TRIM1#

62471MCLIP

main90467-06171-B0iLY112,162..IV5199905-200107

main90467-06171-B1iLY111,161..IV5199708-199905

LT.GRAY,TRIM1#

main90467-06171-C0iLY112,162..IV5199905-200107

BLACK,TRIM1#

main90467-07043-B1×2iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4199505-200107

62472DGARNISH, REAR PILLAR, UPPER LH

main62472-25010-B0iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4199505

LT.GRAY,TRIM1#

62571EGARNISH, REAR PILLAR, LOWER RH

main62571-25010-B0iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4199505

LT.GRAY,TRIM1#

62572EGARNISH, REAR PILLAR, LOWER LH

main62572-25010-B0iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4199505

LT.GRAY,TRIM1#

6777116080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16080

6777132150WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32150

9046711079

main90467-11079

9046805047

main90468-05047

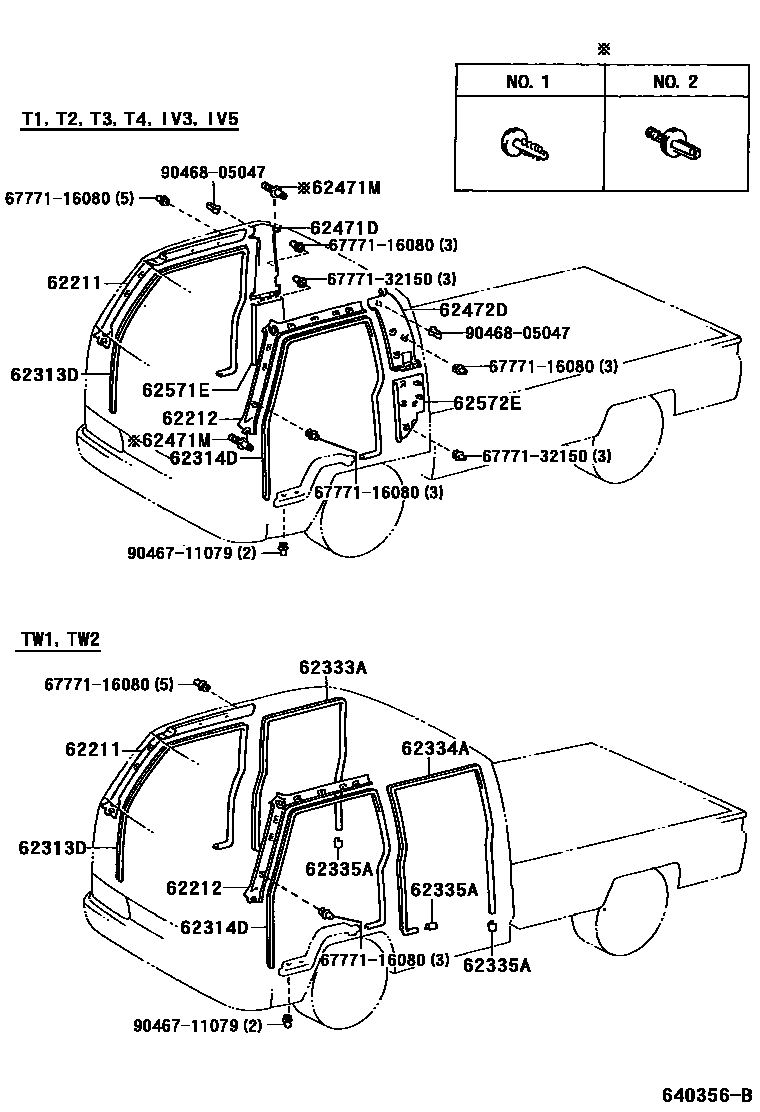

16 parts on this diagram · 1 diagram in section
