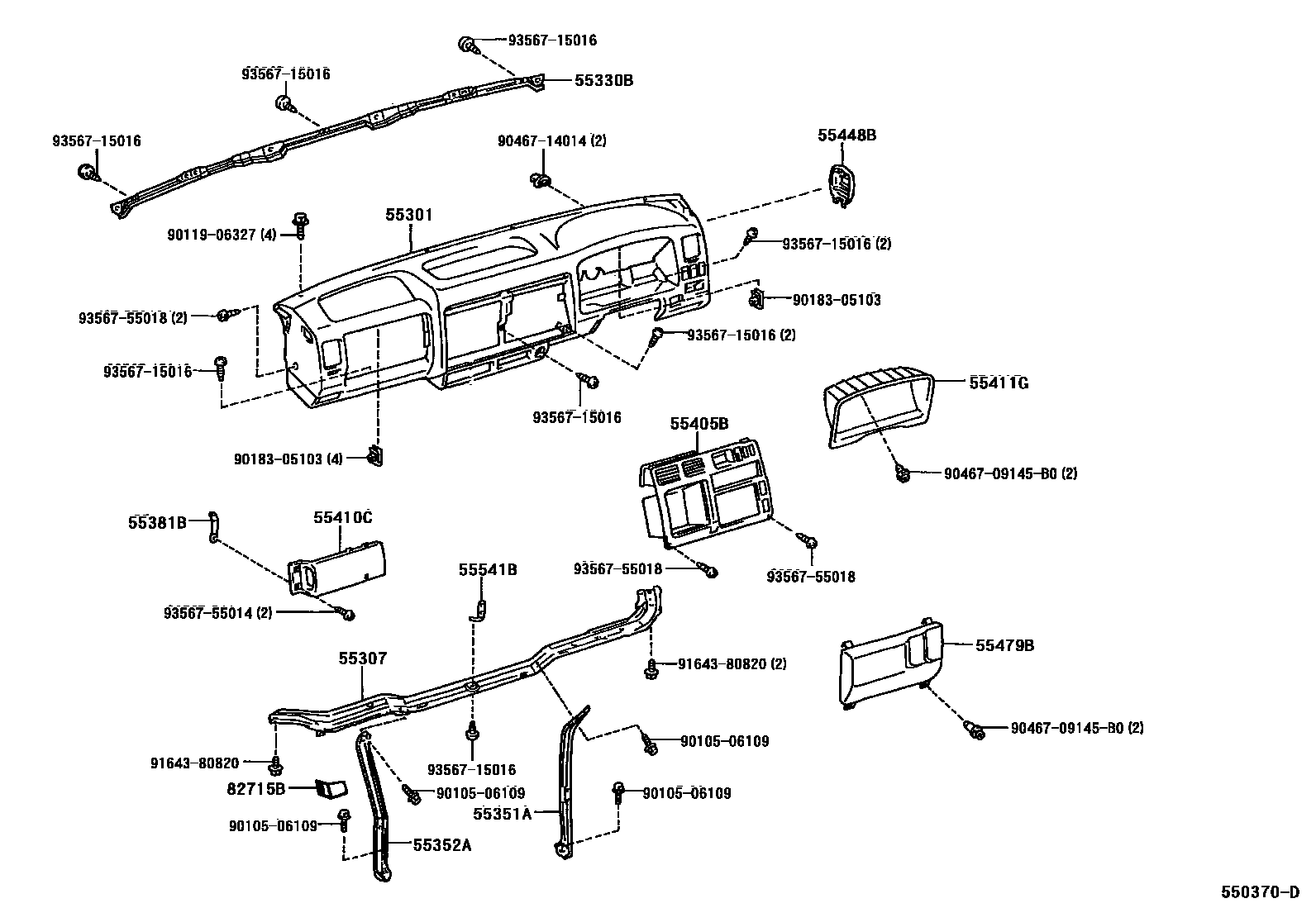

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-37020-B0iLY101,111,121,131,151,161,201,211,YY101,121,131,201,211199505-199708

BLUISH GRAY,TRIM1#

main55311-37021-B0iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199708

BLUISH GRAY,TRIM1#

55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER

main55307-37010iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

main55307-37050iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199703

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-25010iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

55351ABRACE, INSTRUMENT PANEL TO FLOOR

main55351-37010iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

55352ABRACE, INSTRUMENT PANEL TO FLOOR, NO.2

main55352-37010iLY201,211,YY201,211199505-199610

main55352-37030iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199610

55381BBRACKET, FINISH PANEL MOUNTING, NO.1

main55381-37010iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-37010-C0iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

BLACK,TRIM1#

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55410-37010-B0iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

BLUISH GRAY,TRIM1#

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-37010-C0iLY101,111,121,131,151,161,201,211,YY101,121,131,201,211199505-199703

BLACK,TRIM1#

main55411-37020-C0iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199708-200107

BLACK,TRIM1#

55448BCOVER, OIL RESERVOIR TANK, RH

main55448-37010-B0iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

BLUISH GRAY,TRIM1#

55479BCOVER, INSTRUMENT, LOWER CENTER

main55479-37010-B0iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

BLUISH GRAY,TRIM1#

55541BRETAINER, RADIO TUNER OPENING, NO.1

main55541-37010iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

main55541-37020iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199703

82715BBRACKET, WIRING HARNESS CLAMP

main82715-37671iLY111..IV5;LY161..LPG;LY161,YY211..ATM..(CBR,DSL);LY102,112,122,132,152,162,202,212199708

9010506109

main90105-06109

9011906327

main90119-06327

9018305103

main90183-05103

9046709145B0

main90467-09145B0

9046714014

main90467-14014

9164380820

main91643-80820

9356715016

main93567-15016

9356755014

main93567-55014

9356755018

main93567-55018

22 parts on this diagram · 2 diagrams in section
