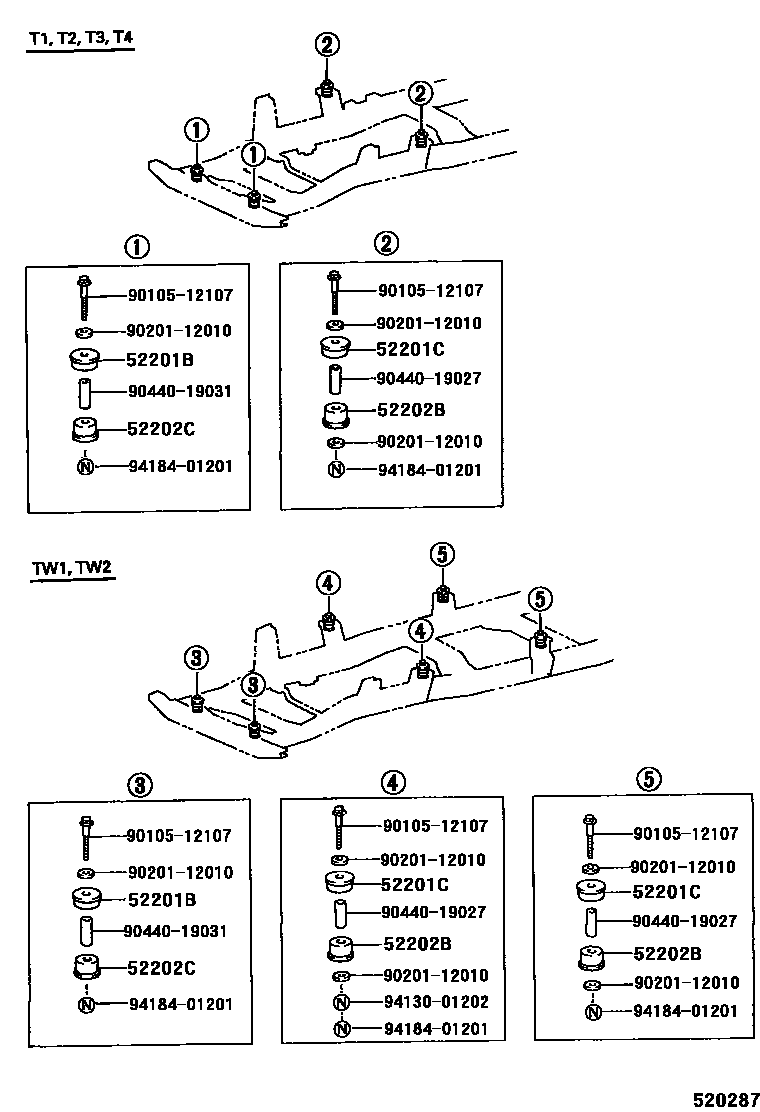

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1 0003 1

52201BCUSHION SUB-ASSY, CAB FRONT MOUNTING

main52201-25040×2iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-25040×2iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4; LY10#,11#,13#,15#,16#,201,21#,YY101,131,201,211..TW1,TW2199505

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-25040×2iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4; LY10#,11#,13#,15#,16#,201,21#,YY101,131,201,211..TW1,TW2199505

52202CCUSHION SUB-ASSY, CAB FRONT MOUNTING, LOWER

main52202-25040×2iLY20#,21#,YY201,211199505

main52202-25050×2iLY10#,11#,12#,13#,15#,16#,YY101,121,131199610

9010512107

main90105-12107

9020112010

main90201-12010

9044019027

main90440-19027

9044019031

main90440-19031

9413001202

main94130-01202

9418401201

main94184-01201

10 parts on this diagram · 3 diagrams in section
