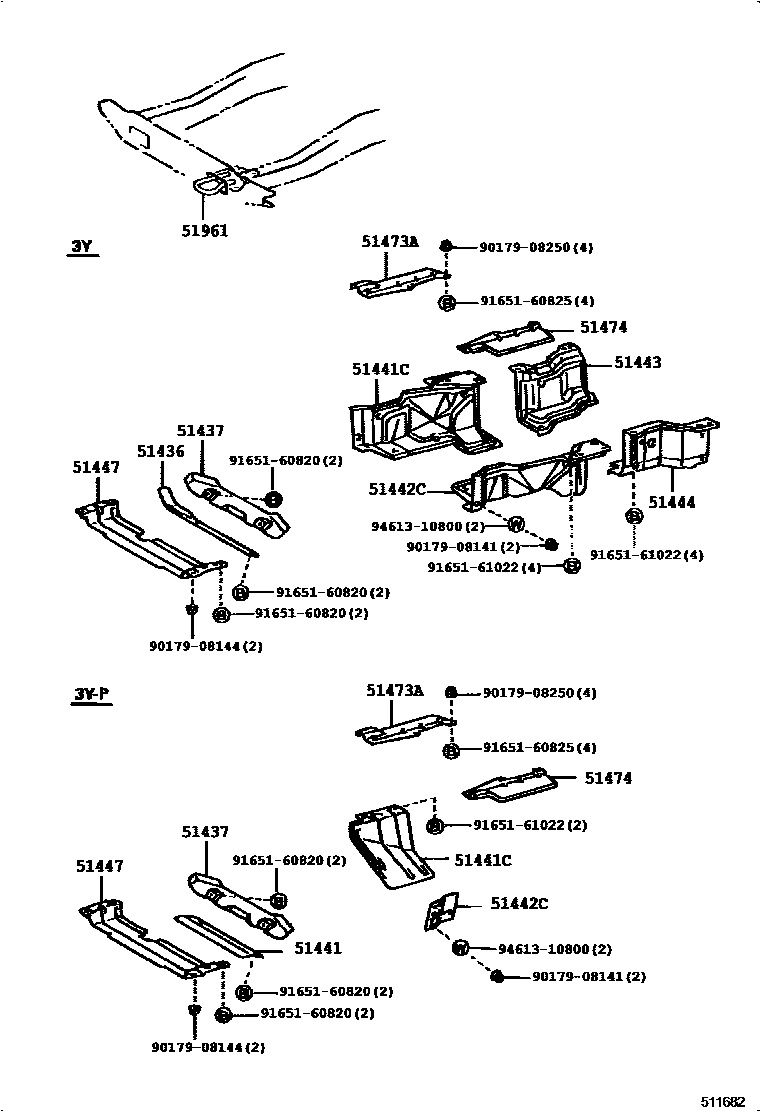

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0004 1 0005 1

51436PROTECTOR, ENGINE FRONT SUPPORT

main51436-25010iLY20#,21#,YY201;YY211..MTM..CBR199505

main51436-25020iLY10#,11#199610

main51436-26010iYY101199610

main51436-26050iLY15#,16#199610

main51436-26060iLY10#..MTM..125..IV3199610

51437BRACKET, ENGINE FRONT SUPPORT, LOWER RH

main51437-25010iLY201,211,YY201,211199505-199905

main51437-25011iLY202,212,YY201,211199905

main51437-26010×4iLY15#,16#199610

51441COVER, ENGINE UNDER, NO.1

main51440-25020iLY15#,16#199610

main51440-25030iLY12#,13#,YY121,131199610

main51441-25201iYY211..ATM;YY211..15T..LPG199505

51441CCOVER, ENGINE UNDER, RH

main51406-25040iLY201,211199505-199905

main51406-25041iLY202,212199905

main51406-25050iYY201,211..CBR199505-199905

main51406-25051iYY201,211..MTM..CBR199905

main51441-25130iYY211..ATM;YY211..15T..LPG199505

51442CCOVER, ENGINE UNDER, LH

main51407-25050iLY20#,21#199505

main51407-25060iYY201,211..MTM..CBR199505

main51442-25050iYY211..ATM;YY211..15T..LPG199505

51443COVER, ENGINE UNDER, REAR RH

main51405-25080iLY20#,21#..MTM199505

main51408-25020iYY201,211..MTM..CBR199505

main51408-25030iLY21#..ATM199505

51444COVER, ENGINE UNDER, REAR LH

main51409-25020iLY21#..ATM199505

main51444-25010iYY201,211..MTM..CBR199505

51447GUIDE, ENGINE UNDER COVER AIR

main51447-25090iYY211;LY20#,21#,YY201..MTM199505

51473ACOVER SUB-ASSY, ENGINE SIDE, RH

main51473-25010iLY20#,21#,YY201,211199505

main51473-25020iLY12#,13#,15#,16#,YY121,131199610

main51473-25030iLY10#,11#,YY101199610

51474COVER SUB-ASSY, ENGINE SIDE, LH

main51473-25020iLY12#,13#,15#,16#,YY121,131199610

main51474-25010iLY20#,21#,YY201,211199505

main51474-25030iLY10#,11#,YY101199610

51961HOOK, NO.1

main51961-25030iLY20#,21#,YY201,211199505

9017908141

main90179-08141

9017908144

main90179-08144

9017908250

main90179-08250

9165160820

main91651-60820

9165160825

main91651-60825

9165161022

main91651-61022

9461310800

main94613-10800

18 parts on this diagram · 5 diagrams in section
